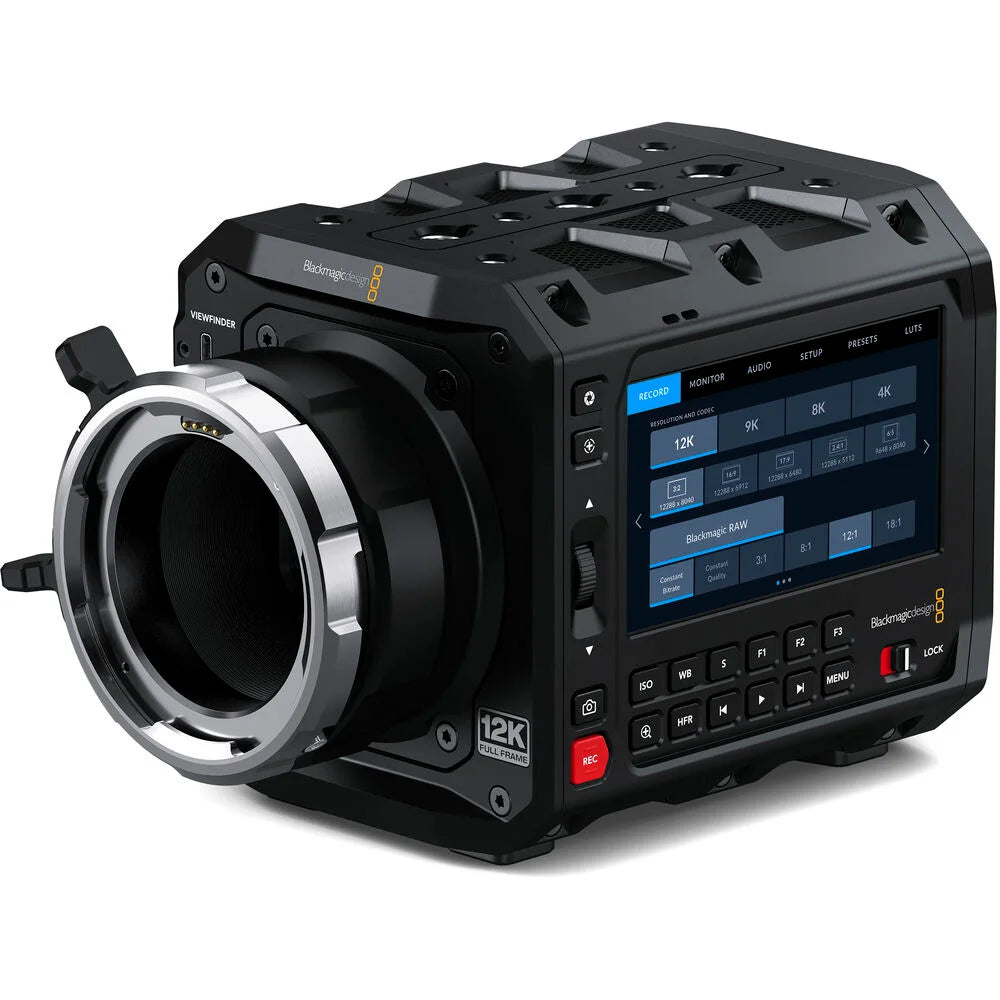

Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL)
SKU: CINECAMCPYXO12LFPL
Key Features
- Large-Format Full-Frame 12K Sensor
- 16 Stops of Dynamic Range
- Blackmagic RAW up to 12K 3:2 Open Gate
- Built-In Optical Low-Pass Filter
- Two CFexpress Card Slots, USB-C Port
- Compact Form with Switchable Side Plates
- 4" HDR LCD Touchscreen
- 10GbE Ethernet Port, 10GHDBase-T Support
- HFR Button & Three Assignable Shortcuts
- Mini-XLR & 3.5mm Audio Inputs
- 20,958.00 AED
- 20,958.00 AED
- Unit price
- per
Dimensions: 27.5 x 18.5 x 18 cm
Weight: 2.7 kg
Description
xThe Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL) is a compact digital cinema camera built for professional film, commercial, documentary, and production workflows. It features a large-format 12K RGBW sensor, up to 16 stops of dynamic range, and a fixed ARRI PL lens mount for professional cinema lenses.
The camera can record 12K, 9K, 8K, and 4K footage in Blackmagic RAW, with support for multiple aspect ratios including 3:2 open gate and 6:5 anamorphic. High-frame-rate recording is available at lower resolutions, including up to 112 fps at 8K 2.4:1.
The PYXIS 12K includes a 4-inch HDR touchscreen, dual CFexpress Type B card slots, USB-C recording, 12G-SDI output, 10Gb Ethernet, and professional audio connections. Its customizable side plates and multiple mounting points make it easy to build for gimbals, cranes, drones, studio rigs, and handheld production.
For more professional cinema cameras, explore Systec's Digital Cinematography Cameras collection.
FAQs
What resolution does the PYXIS 12K support?
It supports recording up to 12,288 x 8,040 pixels in 12K 3:2 open gate.
What lens mount does this model use?
This version features a fixed ARRI PL lens mount with /i Technology support.
How much dynamic range does it provide?
The PYXIS 12K provides up to 16 stops of dynamic range.
What media does the camera use?
It has two CFexpress Type B card slots and also supports recording to external media through USB-C.
Can the PYXIS 12K stream live?
Yes. It supports live streaming using SRT and RTMP protocols
Specs
xSpecifications
| Product Type | Digital Cinema Camera |
|---|---|
| Sensor Type | Full-Frame RGBW |
| Effective Sensor Size | 35.64 x 23.32mm |
| Maximum Resolution | 12,288 x 8,040 |
| Pixel Pitch | 2.9 microns |
| Dynamic Range | 16 Stops |
| Native ISO | 800 |
| Lens Mount | ARRI PL Mount with /i Technology |
| Recording Format | Blackmagic RAW |
| Proxy Format | H.264 1920 x 1080 |
| Recording Resolutions | 12K, 9K, 8K and 4K |
| 12K 3:2 Open Gate Frame Rate | Up to 40 fps |
| 8K 2.4:1 Frame Rate | Up to 112 fps |
| Media | 2 x CFexpress Type B |
| Display | 4-inch 1920 x 1080 HDR LCD Touchscreen |
| Display Brightness | 1500 nits |
| Video Output | 1 x 12G-SDI |
| Audio Input | 1 x Mini XLR, 1 x 3.5mm Stereo Input |
| Headphone Output | 1 x 3.5mm Headphone Jack |
| Ethernet | 10Gb/s RJ-45 |
| USB | USB Type-C for External Recording, Camera Control and Updates |
| Reference Input | Tri-Sync / Black Burst and Timecode |
| Power Supply | 18V DC 90W |
| Battery Type | BP-U Series |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% Non-Condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
