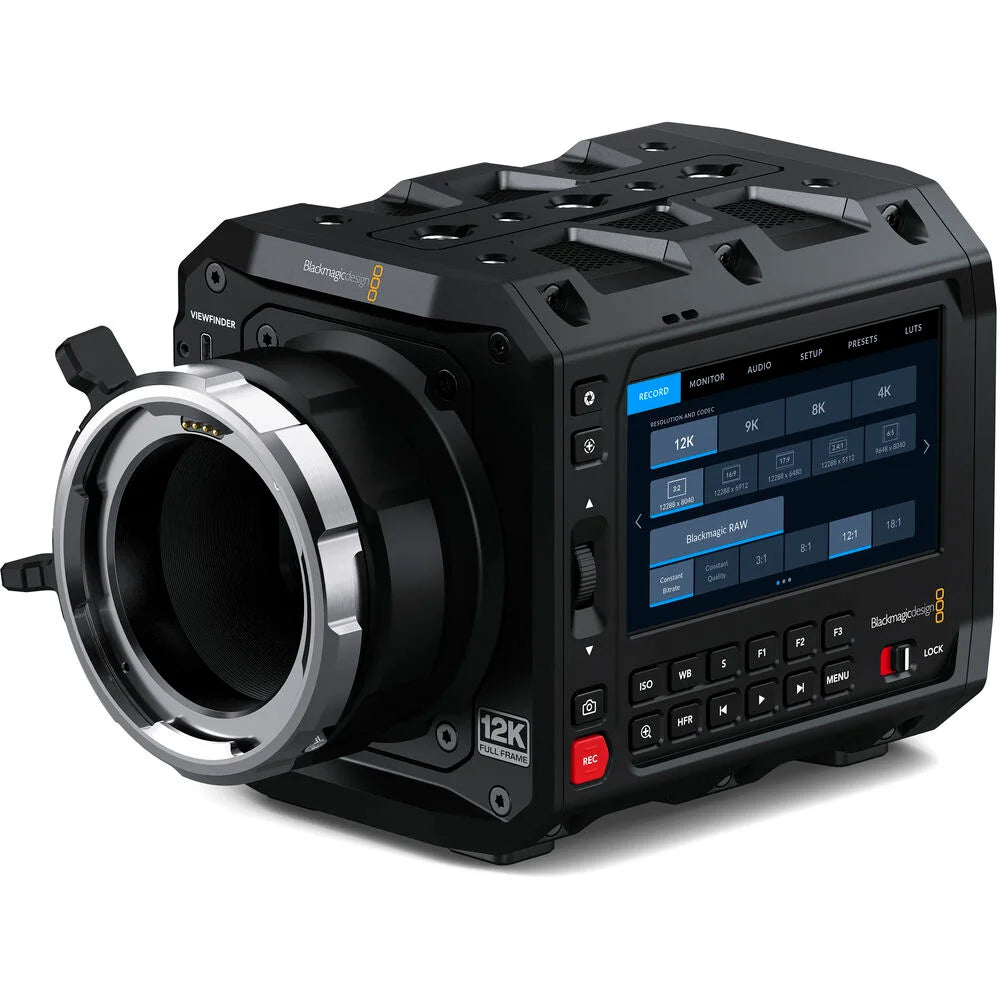

Blackmagic Design PYXIS 12K Cinema Camera (Canon EF)

The Blackmagic Design PYXIS 12K Cinema Camera (Canon EF) is a professional digital cinema camera built for filmmakers and production teams that need exceptional resolution, dynamic range, and flexible rigging options. It features a full-frame 12K RGBW sensor with a 12,288 x 8,040 resolution, built-in optical low-pass filter, and 16 stops of dynamic range.

The camera features a locking Canon EF lens mount, providing compatibility with a wide range of Canon EF photo and cinema lenses. It supports multiple shooting resolutions and aspect ratios from 12K down to 4K, with high frame rates available for slow-motion production.

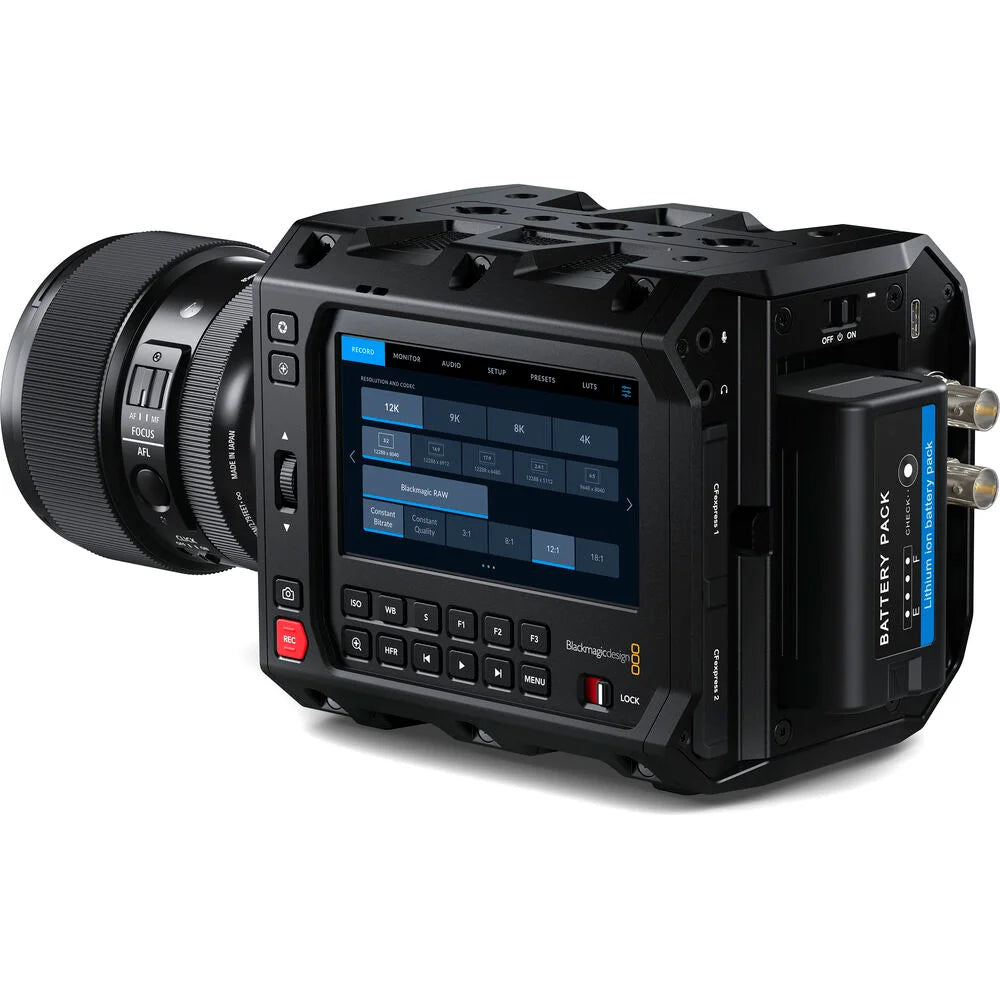

The PYXIS 12K records 12-bit Blackmagic RAW and can simultaneously create H.264 1920 x 1080 proxy files. Two CFexpress Type-B card slots and USB-C recording provide flexible media options, while the built-in 4-inch HDR touchscreen with 1500 nits brightness makes framing, focusing, and monitoring easier on set.

Professional connectivity includes 12G-SDI, 10GbE Ethernet, mini-XLR audio, 3.5mm audio, timecode, reference input, and USB-C. The 10GbE connection also supports fast media transfer, remote camera control, and Blackmagic Cloud workflows.

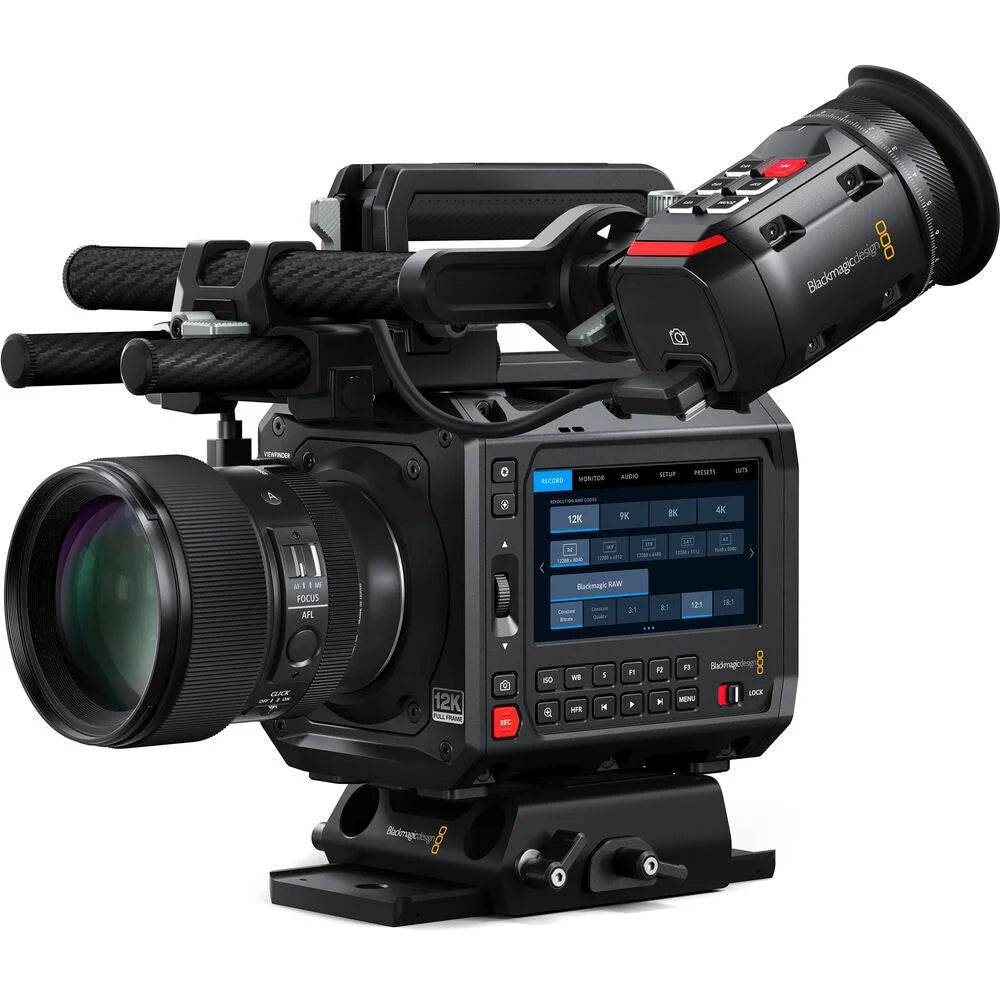

The camera's customizable body includes multiple mounting points and interchangeable side plates, making it suitable for gimbals, cranes, drones, studio rigs, and handheld configurations. It is an excellent choice for feature films, commercials, documentaries, television, virtual production, and other demanding cinematic applications.

For more professional cinema equipment, explore our Digital Cinematography Cameras collection and Blackmagic Design range for additional cameras and production accessories.

Frequently Asked Questions

What is the Blackmagic PYXIS 12K EF used for?

The PYXIS 12K EF is a professional digital cinema camera designed for filmmaking, commercial production, documentaries, television, virtual production, and other high-resolution video applications.

What resolution does the PYXIS 12K EF support?

The camera features a 12,288 x 8,040 full-frame RGBW sensor and supports recording up to 12K resolution.

What lens mount does this camera use?

This version features an active locking Canon EF mount that is compatible with supported Canon EF photo and cinema lenses.

Does the PYXIS 12K EF record Blackmagic RAW?

Yes. It records Blackmagic RAW and can simultaneously record H.264 1920 x 1080 proxy files for easier editing and sharing.

How much dynamic range does the PYXIS 12K offer?

The PYXIS 12K provides up to 16 stops of dynamic range, helping preserve detail across bright highlights and dark areas.
