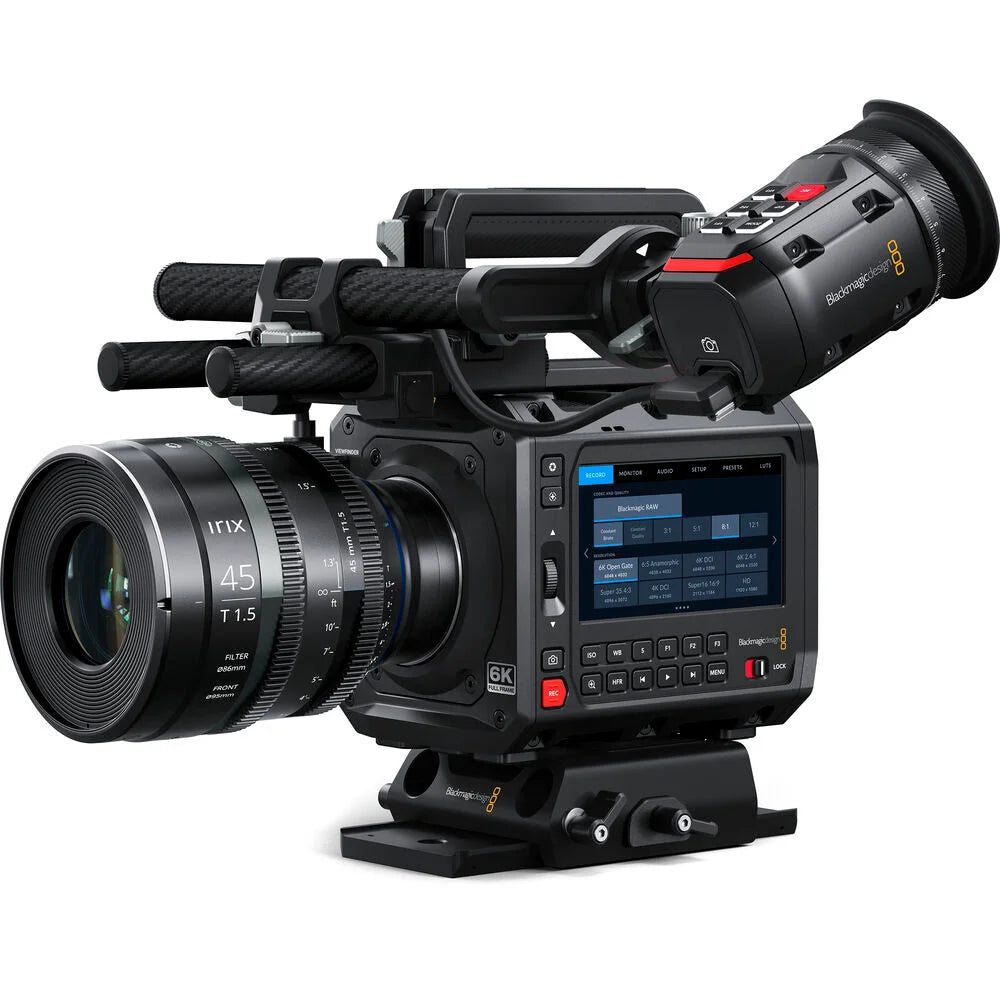

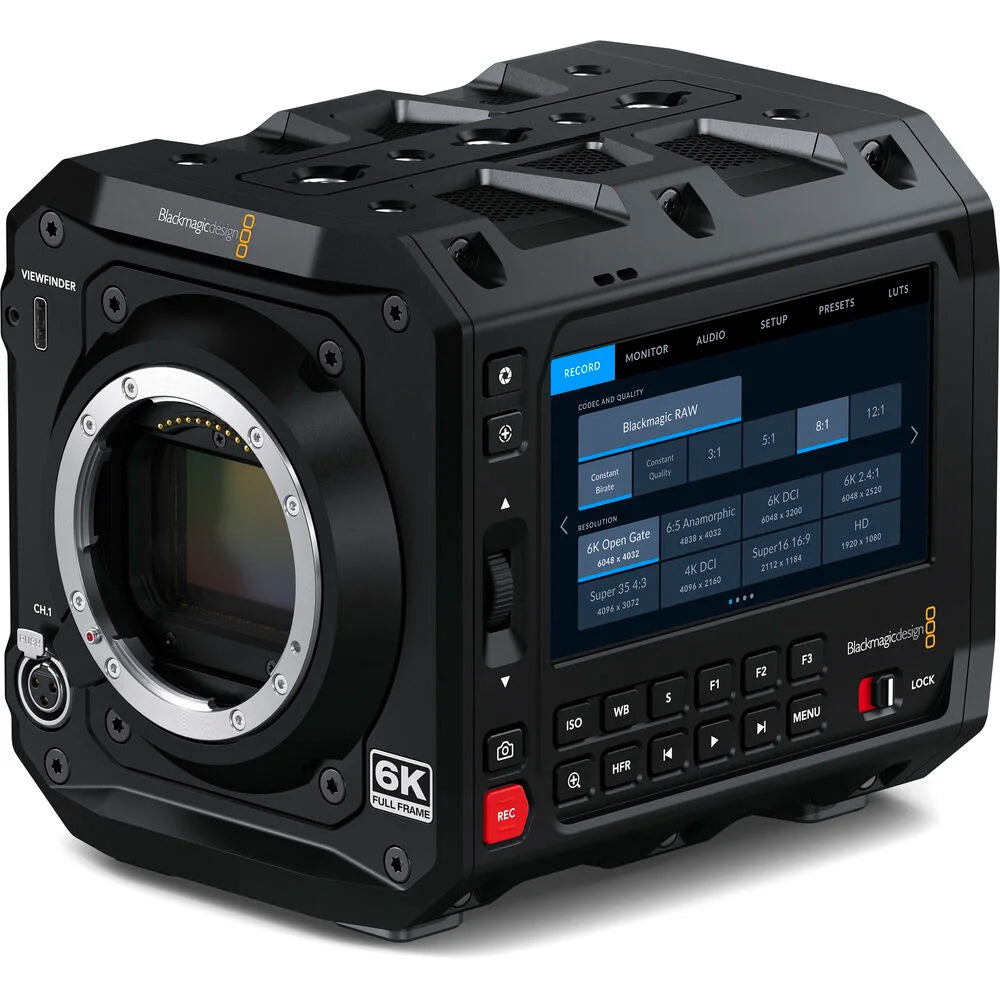

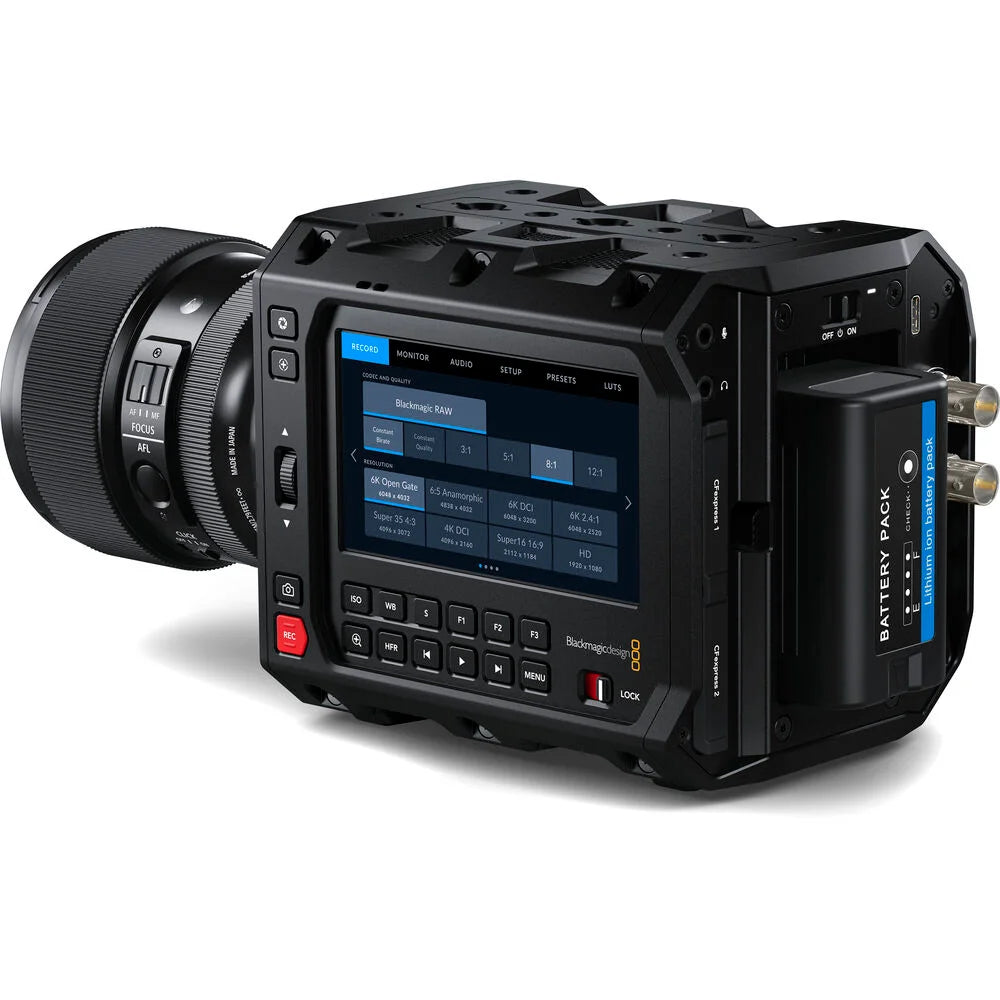

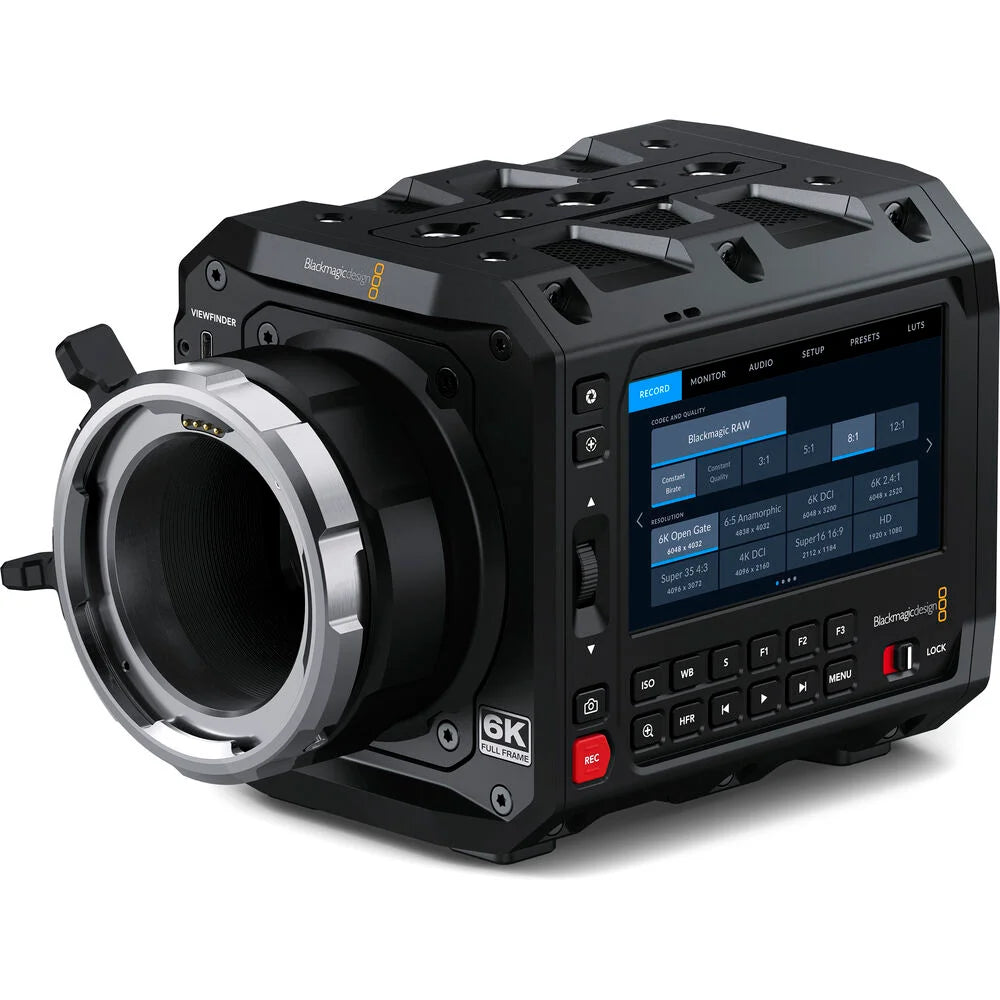

Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL)
SKU: CINECAMCPYXH60LFPL
Key Features
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- ARRI PL Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
- 12,935.00 AED
- 12,935.00 AED
- Unit price
- per
Dimensions: 10.7 x 12 x 15.2 cm
Weight: 2 kg
Description
xThe Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL) is a professional full-frame digital cinema camera built for filmmakers who need high-quality image capture and flexible rigging options. It features a 36 x 24mm full-frame HDR sensor with 13 stops of dynamic range and dual native ISO of 400 and 3200, delivering detailed images and strong low-light performance.
Its fixed ARRI PL mount is designed for professional cinema lenses and supports lens metadata through /i Technology-compatible PL lenses. The camera can record Blackmagic RAW in multiple compression options and H.264 1080p proxy files, with recording available to two CFexpress Type B cards or an external USB-C drive.
The PYXIS 6K PL supports 6K Open Gate recording up to 36 fps, 6K 2.4:1 up to 60 fps, 4K up to 60 fps, Super 16 up to 100 fps, and 1080p up to 120 fps. Its 4-inch 1920 x 1080 HDR touchscreen provides 1500 nits of brightness for clear monitoring, while 12G-SDI, USB-C, Ethernet, mini XLR, and 3.5mm audio connections support professional production workflows.
With customizable side plates and multiple mounting options, the PYXIS 6K PL can be configured for studio, handheld, gimbal, crane, and other cinema setups. It also supports Bluetooth and iPad control, Ethernet-based camera control, Blackmagic Cloud workflows, and includes DaVinci Resolve Studio. For more professional cinema cameras and production equipment, explore the Systec Digital Cinematography Cameras collection.
FAQs
What lens mount does the PYXIS 6K PL use?
It features a fixed ARRI PL mount with /i Technology support for compatible professional cinema lenses.
What resolution can the PYXIS 6K PL record?
It can record up to 6048 x 4032 in 6K Open Gate at up to 36 fps, with other 6K, 4K, Super 16, and HD recording options available.
What media does the PYXIS 6K PL use?
It has two CFexpress Type B card slots and a USB-C port for recording to external media.
Does the camera support Blackmagic RAW?
Yes. It supports multiple Blackmagic RAW compression and constant-quality options, along with H.264 1080p proxy recording.
Is DaVinci Resolve included?
Yes. DaVinci Resolve Studio for Mac and Windows is included with the camera.
Specs
xSpecifications
| Product Type | Digital Cinema Camera |
|---|---|
| Sensor | 36mm x 24mm Full Frame HDR |
| Sensor Resolution | 6048 x 4032 |
| Lens Mount | ARRI PL Mount with /i Technology |
| Dynamic Range | 13 Stops |
| Dual Native ISO | 400 and 3200 |
| Maximum Resolution | 6048 x 4032 |
| Maximum Frame Rate | Up to 120 fps at 1920 x 1080 |
| Display | 4-inch 1920 x 1080 LCD capacitive touchscreen |
| Display Brightness | 1500 nits |
| Video Output | 1 x 12G-SDI up to 2160p60 |
| Audio Inputs | 1 x Mini XLR, 1 x 3.5mm Stereo |
| Audio Output | 1 x 3.5mm Headphone |
| Media | 2 x CFexpress Type B, 1 x USB-C for external media |
| Recording Formats | Blackmagic RAW and H.264 Proxy |
| Ethernet | 1 x 1Gb/s RJ-45, 10/100/1000 BASE-T |
| Power Supply | 12V DC, 60W |
| Battery Type | BP-U Series |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Warranty | 1 Year Limited Manufacturer's Warranty |
