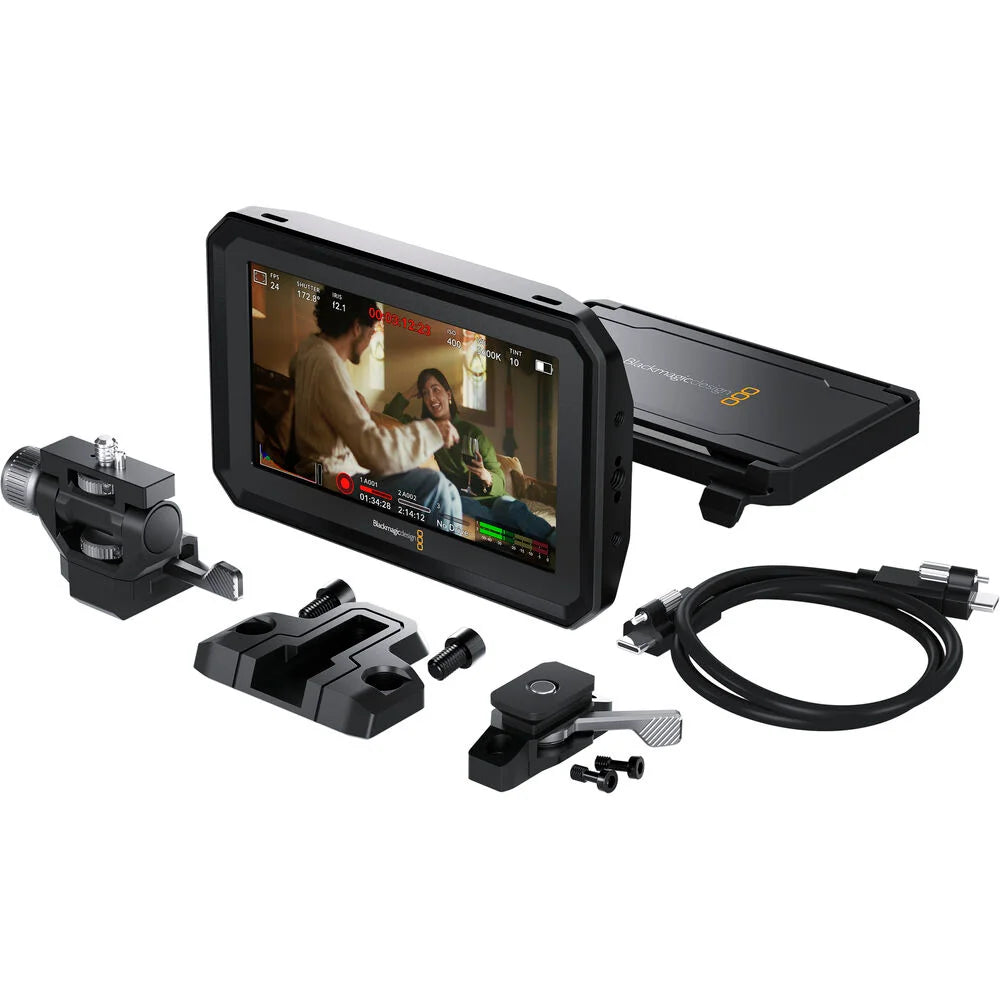

Blackmagic Design PYXIS MonitorKit
SKU: CINEURSABB/AMKIT
Key Features
- 5" HDR Touchscreen Monitor
- 1500 cd/m² Brightness, HDR Support
- Multiple 1/4"-20 & M4 Mounting Points
- 1920 x 1080 Native Resolution
- Three Assignable Function Buttons
- Clip-On Sunshade Included
- Swivel & Fixed Mounts Included
- USB-C Viewfinder Cable Included
- 1,859.00 AED
- 1,859.00 AED
- Unit price
- per
Description
xThe Blackmagic Design PYXIS Monitor Kit is a professional 5-inch HDR touchscreen monitor designed to provide additional monitoring and camera control for Blackmagic PYXIS and compatible URSA Cine cameras. Its bright 1500-nit display provides clear viewing in bright shooting environments, while the touchscreen gives operators access to important camera settings and monitoring tools.
The monitor connects to compatible cameras through a single locking USB-C connection that carries video, power, data and camera control. It provides access to controls including frame rate, shutter, iris, ISO, white balance, tint, timecode, audio, focus zoom, recording and camera menus directly from the touchscreen.
Three assignable F1, F2 and F3 buttons provide quick access to frequently used functions such as focus assist, false color, zebra, frame guides, LUT display and recording. A built-in accelerometer automatically rotates the image when the monitor is mounted upside down, while the rear-facing tally light provides clear recording status.
The PYXIS Monitor Kit also provides flexible mounting options, including dedicated PYXIS mounting hardware with a dovetail design for quick attachment and removal. It is compatible with Blackmagic PYXIS 6K, PYXIS 6K PL, PYXIS 6K EF, URSA Cine 12K LF, URSA Cine 17K 65 and Micro Studio Camera 4K G2.
For more professional monitoring and camera accessories, explore Systec's Monitors, Camera Accessories, and Blackmagic Design product categories.
Frequently Asked Questions
What is the Blackmagic PYXIS Monitor Kit used for?
It provides an external 5-inch HDR touchscreen for monitoring and camera control, particularly when the camera's built-in display is obstructed by rigging or other accessories.
What is the display resolution and brightness?
The monitor features a 1920 x 1080 LCD capacitive touchscreen with 1500 nits of brightness and supports frame rates up to 60fps.
How does the PYXIS Monitor connect to the camera?
It uses a locking USB-C connection for video, power, data and camera control through a single cable.
Which cameras are compatible with the PYXIS Monitor Kit?
It is compatible with Blackmagic PYXIS 6K, PYXIS 6K PL, PYXIS 6K EF, URSA Cine 12K LF, URSA Cine 17K 65 and Micro Studio Camera 4K G2.
Can the monitor control camera settings?
Yes. The touchscreen provides access to settings including frame rate, shutter, iris, ISO, white balance, tint, timecode, audio, focus and recording controls.
Specs
xKey Specs
| Display Size | 5 Inch |
|---|---|
| Display Resolution | 1920 x 1080 |
| Display Type | LCD Capacitive Touchscreen |
| Display Brightness | 1500 Nits |
| Maximum Frame Rate | Up to 60 fps |
| Tally | Rear-Facing LED Tally Light |
| Accelerometer | Automatically Rotates Image When Monitor Is Mounted Upside Down |
Connectivity
| Video Connection | USB-C with Locking Connector |
|---|---|
| USB-C Functions | Video, Power, Data and Software Updates |
Camera Controls
| On-Screen Controls | Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and Camera Menus |
|---|---|
| Function Buttons | F1, F2 and F3 Assignable Buttons |
| Function Button Presets | FPS, Iris, White Balance, ISO and Shutter |
| Assignable Functions | Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, OIS, Stream and Still |
Mounting
| Bottom Mounting Points | 1 x 1/4"-20 with ARRI Locating Pin Pattern; 2 x M4 |
|---|---|
| Side Mounting Points | 1 x 1/4"-20 with ARRI Locating Pin Pattern; 2 x M4 |
| Mounting Brackets | Blackmagic PYXIS Monitor Swivel Mount, Fixed Mount and Dovetail Shoe |
Compatible Cameras
| Compatible Models | Blackmagic PYXIS 6K, Blackmagic PYXIS 6K PL, Blackmagic PYXIS 6K EF, Blackmagic URSA Cine 12K LF, Blackmagic URSA Cine 17K 65 and Blackmagic Micro Studio Camera 4K G2 |
|---|
Operating Systems
| macOS | macOS 13.0 Ventura, macOS 14.0 Sonoma or Later |
|---|---|
| Windows | Windows 10 and 11 |
Power
| Power Source | Powered Over USB-C |
|---|
Environmental
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
|---|---|
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Relative Humidity | 0% to 90% Non-Condensing |
Warranty
| Product Warranty | 1 Year Limited Manufacturer's Warranty |
|---|
