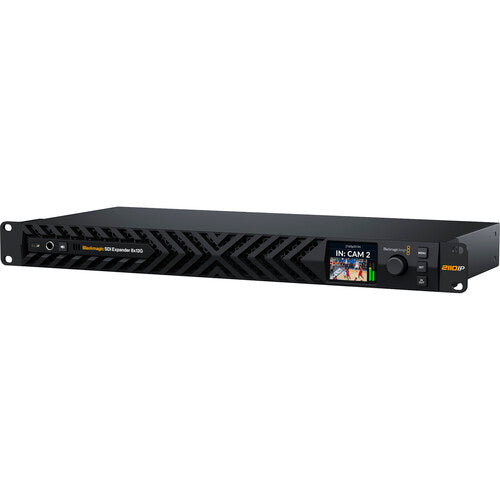

Blackmagic Design SDI Expander 8x12G
SKU: CONVNVIPP/EX10012G8
Key Features
- Connect 12G-SDI Gear to 100GbE Systems
- Convert 16 Channels of 4K60 10-Bit Video
- 8 x 12G-SDI Inputs to 100GbE Output
- 100GbE Input to 8 x 12G-SDI Outputs
- SMPTE 2110 IP Video Compliance
- 2.2" LCD Monitor & Control Knob/Buttons
- 1 RU Form Factor
- External NMOS Control via RJ45 Port
- 16 Audio Channels per 100GbE Connection
- 2 Redundant AC Power Inputs
- 12,346.00 AED
- 12,346.00 AED
- Unit price
- per
Dimensions: 482.6 x 226.1 x 43.2 mm
Description
xThe Blackmagic Design SDI Expander 8x12G is a professional broadcast converter designed to connect 12G-SDI equipment with high-bandwidth 100G Ethernet IP video systems. It supports bidirectional conversion between SDI and SMPTE 2110 IP workflows, making it an ideal solution for broadcasters, production studios, and live production environments.
With 8 x 12G-SDI inputs, 8 x 12G-SDI outputs, and 100G Ethernet connectivity, the SDI Expander 8x12G can handle multiple HD and Ultra HD video signals, including 4K video up to 60 fps. It supports 10-bit 4:2:2 YUV video and up to 32 channels of embedded audio for professional production workflows.
The unit supports SMPTE 2110, SMPTE-2022-7 redundancy, and NMOS control, providing reliable integration with modern IP-based broadcast infrastructure. The front-panel LCD and control buttons make configuration and monitoring straightforward, while dual redundant AC power inputs help ensure dependable operation in demanding environments.
The Blackmagic Design SDI Expander 8x12G is a compact 1 RU solution for facilities transitioning from traditional SDI infrastructure to IP video. Pair it with other Blackmagic Design products from Systec International.
Frequently Asked Questions
What is the Blackmagic Design SDI Expander 8x12G?
It is a bidirectional SDI-to-IP converter that connects 12G-SDI equipment with 100G Ethernet SMPTE 2110 video networks.
Does the SDI Expander 8x12G support 4K?
Yes. It supports Ultra HD video formats up to 3840 x 2160 at 60 fps.
How many SDI connections does it have?
It features 8 x 12G-SDI inputs and 8 x 12G-SDI outputs.
Does it support SMPTE 2110?
Yes. It supports SMPTE 2110 IP video standards and SMPTE-2022-7 network redundancy.
In the Box
x- Blackmagic Design SDI Expander 8x12G
- Limited 1-Year Manufacturer Warranty
Specs
xKey Specs
| Inputs | 8 x BNC (12G-SDI) 1 x QSFP28 (100G Ethernet) |
|---|---|
| Embedded Audio | IP/SDI: 32-Channel |
| Outputs | 8 x BNC (12G-SDI) 1 x QSFP28 (100G Ethernet) |
| Video Format |
SDI Input (10-Bit 4:2:2 YUV) 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i: 50/59.94/60 fps 1920 x 1080PsF: 25/29.97/30 fps 1280 x 720p: 50/59.94/60 fps |
Interfaces
| Inputs | 8 x BNC (12G-SDI) 1 x QSFP28 (100G Ethernet) |
|---|---|
| Embedded Audio | IP/SDI: 32-Channel |
| Outputs | 8 x BNC (12G-SDI) 1 x QSFP28 (100G Ethernet) |
| Other I/O | 1 x RJ45 Input 1 x USB-C (Firmware) Input |
Standards
| Video Standard Compliance | SMPTE 292M/296M/424M/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2022-7/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084/ST-2108-1 |
|---|---|
| Reclocking | No |
| HDR Support | Yes |
| HDCP Support | No |
| EDID Support | No |
| OS Compatibility | macOS 26.0 or Later Windows 11 or Later |
Transmission
| Video Format |
SDI Input (10-Bit 4:2:2 YUV) 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i: 50/59.94/60 fps 1920 x 1080PsF: 25/29.97/30 fps 1280 x 720p: 50/59.94/60 fps |
|---|---|
| Maximum Data Rate | 100 Gb/s |
Power
| Power I/O | 2 x IEC C14 Input |
|---|---|
| Power Consumption | 100 to 240 VAC |
General
| Rack Form Factor | 1 RU |
|---|---|
| Certifications | IEEE 1588-2008 |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19.0 x 8.9 x 1.7" / 482.6 x 226.1 x 43.2 mm |
