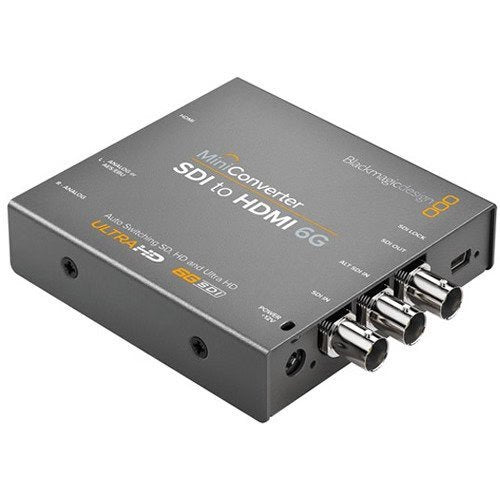

Blackmagic Design SDI to HDMI 6G Mini Converter
SKU: CONVMBSH4K6G
Key Features
- 2 x 4K SDI Input
- 1 x HDMI Type A and 1 x SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 865.00 AED
- 865.00 AED
- Unit price
- per
Dimensions: 15.24 x 15.24 x 5.08 cm
Weight: 0.54 kg
Description
xThe Blackmagic Design SDI to HDMI 6G Mini Converter is a professional video converter designed to convert SDI signals to HDMI for connecting professional SDI equipment to HDMI displays, televisions, projectors, and other compatible devices. It supports SD, HD, Ultra HD 4K, and DCI 4K video formats.
The converter supports 6G-SDI and can handle Ultra HD 4K up to 30p and DCI 4K up to 24p. Automatic input detection allows the unit to recognize incoming SD, HD, and 6G-SDI formats without complicated setup.

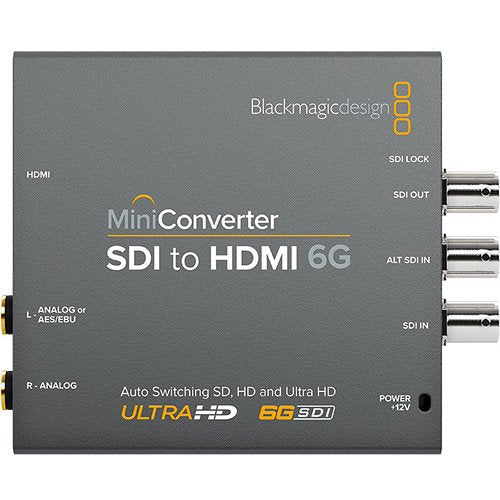

It features an HDMI Type A output and SDI loop output, allowing you to send the converted signal to an HDMI display while continuing the SDI signal to another compatible device. A redundant SDI input is also available and can automatically switch over if the primary input fails.
The Mini Converter SDI to HDMI 6G also provides audio de-embedding, with audio available through the HDMI output as well as balanced analog and AES/EBU digital audio outputs. It supports 24-bit, 48 kHz audio for professional production workflows.
Advanced features include HD down-conversion for monitoring Ultra HD on HD HDMI displays, built-in 3D LUTs, and HDMI instant lock for quick video display when an SDI source is connected. Settings can be adjusted using the built-in mini switches or USB software, while the USB 2.0 connection can also be used for firmware updates.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design SDI to HDMI 6G Mini Converter used for?
The converter is used to convert professional SDI video signals to HDMI, allowing SDI equipment to connect to HDMI displays and other HDMI-compatible devices.
Does the SDI to HDMI 6G Mini Converter support 4K?
Yes. It supports Ultra HD 4K up to 30p and DCI 4K up to 24p, as well as SD and HD formats.
What type of HDMI output does it have?
The converter features one HDMI Type A output for connecting compatible displays, projectors, and other HDMI devices.
Does it have an SDI loop output?
Yes. It includes one SDI video loop output, allowing the incoming SDI signal to be passed to another SDI device.
Does the converter support audio?
Yes. It de-embeds audio from the SDI input and provides audio through the HDMI output as well as balanced analog and AES/EBU digital audio outputs.
Does it support 3D LUTs?
Yes. The Mini Converter SDI to HDMI 6G includes built-in 3D LUTs for monitoring and color management applications.
Specs
x| Component | Specification |
|---|---|
| SDI Video Inputs | 1 x SD, HD or 6G-SDI; 1 x ALT SDI input for automatic switch over if the main input fails |
| SDI Video Output | 1 x SDI Video Loop Output |
| HDMI Video Output | 1 x HDMI Type A |
| Analog Audio Outputs | 2 channels of balanced analog audio |
| Digital Audio Outputs | 2 channels of AES/EBU digital audio |
| SDI Redundant Input | Automatically switches over if the main SDI input is lost |
| Multi-Rate Support | Automatic detection of SD, HD or 6G-SDI |
| SD Video Standards | 625i50 PAL, 525i59.94 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| HDMI Video Standards | 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| Reclocking | Yes |
| HD Scaler | Supported |
| SD Down-Conversion | Supported |
| 3D LUTs | Built-in 3D LUTs |
| HDMI Instant Lock | Supported |

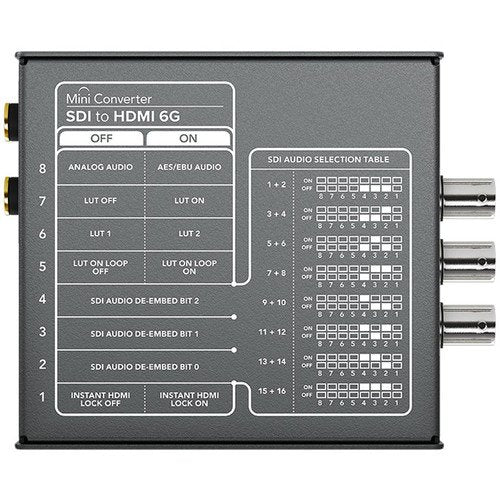

| Settings Control | Mini switches or USB software |
| Software Updates | USB 2.0 |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Operational Voltage Range | 12–18V DC |
| Power Consumption | 5.2 Watts |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Mini Converter SDI to HDMI 6G and 12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
