Blackmagic Videohub 40x40 12G
SKU: VHUBSMARTE12G4040
Key Features
- Routing Switcher
- 40 x 12G-SDI Inputs / 40 x 12G-SDI Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
- 16,652.00 AED
- 16,652.00 AED
- Unit price
- per
Dimensions: 48.8 x 19.4 x 14.7 cm
Weight: 4.74 kg
Description

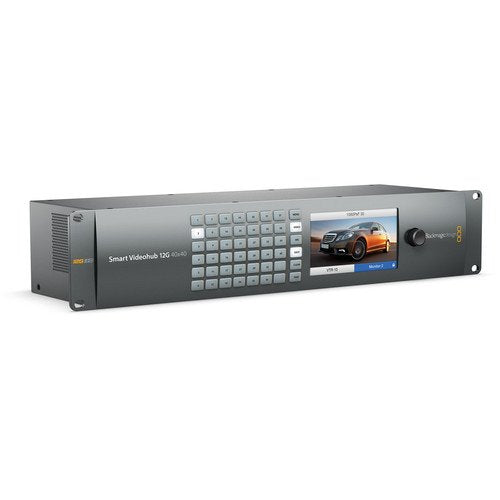

xThe Blackmagic Design Smart Videohub 40 x 40 12G-SDI is a professional zero-latency video router designed for broadcast, live production, post-production, and large video facilities. It provides 40 12G-SDI inputs and 40 12G-SDI outputs, allowing multiple SD, HD, and Ultra HD sources to be routed through the same system.
The router supports SDI data rates from 270Mb/s through 12G-SDI and handles video formats up to 2160p60. Built-in SDI re-clocking helps maintain signal quality, while the router can handle different SD, HD, and Ultra HD standards simultaneously.
A built-in 5-inch LCD provides video preview, routing information, labels, and video standards. Routing can be controlled directly from the front panel using dedicated buttons and a large spin knob, while Ethernet enables remote operation through Blackmagic Videohub software. For more professional signal routing and distribution equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What is the Blackmagic Videohub 40x40 12G used for?
It is a professional video router for routing SDI signals in broadcast, live production, post-production, and studio environments.
How many inputs and outputs does it have?
It provides 40 12G-SDI inputs and 40 12G-SDI outputs.
Does it support 4K video?
Yes. It supports Ultra HD video formats up to 2160p60.
Can it route different video formats at the same time?
Yes. The router supports combinations of SD, HD, and Ultra HD video formats simultaneously.
Can the router be controlled remotely?
Yes. It supports Ethernet control using Blackmagic Videohub software for Mac and Windows, as well as compatible Videohub hardware control panels.
Specs
xSpecifications
| Product Type | 12G-SDI zero-latency video router |
|---|---|
| SDI Inputs | 40 x 12G-SDI |
| SDI Outputs | 40 x 12G-SDI |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G |
| Video Standards | SD, HD and Ultra HD up to 2160p60 |
| SDI Re-clocking | Built-in SDI re-clocking |
| Display | Built-in 5-inch LCD for video and menu settings |
| Control | Front-panel buttons, spin knob and Ethernet |
| Software Control | Blackmagic Videohub software for Mac and Windows |
| External Control | Videohub Smart Control Pro and Videohub Master Control Pro support |
| Control Connection | Ethernet |
| Power Supply | 2 x internal 100–240V AC, 50/60Hz power supplies |
| Power Consumption | 46.5W maximum |
| Rack Installation | 2 rack units |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer’s Warranty |
