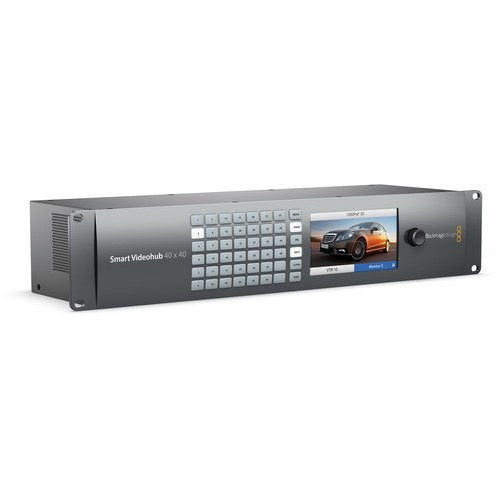

Blackmagic Design Smart Videohub 40 x 40 6G-SDI
SKU: VHUBSMART6G4040
Key Features
- Routing Switcher
- 40 x 6G-SDI Inputs / 40 x 6G-SDI Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
- 11,905.00 AED
- 11,905.00 AED
- Unit price
- per
Dimensions: 49.02 x 19.3 x 13.2 cm
Weight: 4.85 kg
Description
xThe Blackmagic Design Smart Videohub 40 x 40 6G-SDI is a professional multi-format SDI router designed for broadcast, live production, and post-production environments. It provides 40 6G-SDI inputs and 40 6G-SDI outputs, allowing users to route SD, HD, Ultra HD, and DCI 4K signals through a single compact system.
The router supports simultaneous routing of different video formats and automatically detects SD, HD, and 6G-SDI signals. Built-in SDI reclocking on the outputs helps maintain signal quality, while support for 4:2:2 and 4:4:4 sampling and 10-bit processing makes it suitable for professional video workflows.
For hands-on operation, the Smart Videohub features 40 front-panel buttons, a scroll wheel, menu controls, and a built-in 5-inch LCD for viewing video and routing information. It can also be controlled remotely through Ethernet using Blackmagic Videohub software, Smart Control and Master Control panels, or the Videohub SDK.
The 2RU router includes dual internal power supplies for redundancy and supports reference input, RS-422 control, USB software updates, and DVB-ASI routing. For more professional signal routing and broadcast connectivity equipment, explore Systec International’s Signal Processing, Converters & Distribution collection.
FAQs
How many inputs and outputs does the Smart Videohub 40 x 40 have?
It provides 40 6G-SDI inputs and 40 6G-SDI outputs for a total of 80 SDI connections.
Does it support 4K video?
Yes. It supports Ultra HD up to 2160p30 and DCI 4K up to 30p.
Can different video formats be routed at the same time?
Yes. The router automatically detects SD, HD, and 6G-SDI and supports simultaneous routing of 4K, HD, SD, and DVB-ASI signals.
Can the router be controlled remotely?
Yes. It supports Ethernet control through Videohub software and compatible Blackmagic Videohub hardware control panels.
Does it have redundant power?
Yes. It uses two internal AC power supplies, providing power redundancy for professional installations.
Specs
xSpecifications
| Product Type | 40 x 40 multi-format SDI video router |
|---|---|
| SDI Video Inputs | 40 x 10-bit SD-SDI, HD-SDI, and 6G-SDI |
| SDI Video Outputs | 40 x 10-bit SD-SDI, HD-SDI, and 6G-SDI |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G |
| Video Input Re-Sync | None |
| SDI Reclocking | All SDI outputs |
| Reference Input | Tri-Sync or Black Burst |
| Reference Output | Reference terminating loop output |
| Multi-Rate Support | Automatic SD, HD, and 6G-SDI detection |
| Video Standards | SD, HD, 2K, Ultra HD, and DCI 4K |
| Maximum Ultra HD | 2160p30 |
| Maximum DCI 4K | 4K DCI 30p |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 10-bit |
| SDI Color Space | YUV or RGB |
| SDI Audio Sampling | 48kHz, 24-bit |
| SDI Metadata | SMPTE 352M video payload identification ancillary data |
| Control Panel | 40 buttons, 6 menu buttons, and scroll wheel |
| Display | 5-inch LCD |
| Ethernet | Ethernet control and Videohub protocol |
| Serial Control | 1 x DB-9 RS-422 input |
| USB | USB for firmware updates and IP address settings |
| Power Supply | 2 x internal 90–240V AC |
| Power Consumption | 58W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty and 12 Month Warranty on the front panel |
