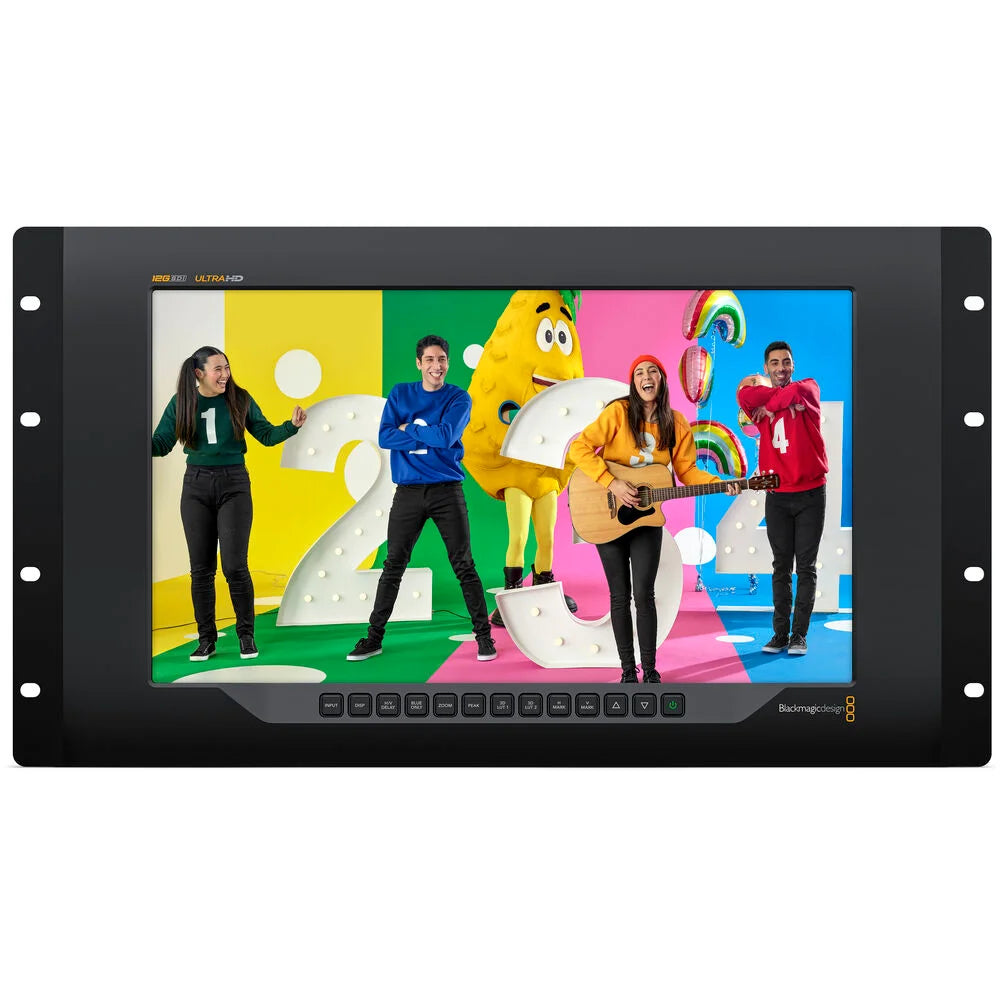

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110
SKU: HDL-SMTV4K12G3
Key Features
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- SMPTE 2110 IP In via RJ45, Optical Fiber
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- 12G-SDI Loop-Through Output, Tally Input
- SD/HD Upscaling, Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
- 5,281.00 AED
- 5,281.00 AED
- Unit price
- per
Dimensions: 49 x 27 x 7 cm
Weight: 3.6 kg
Description
xThe Blackmagic Design SmartView 4K G3 is a professional 15.6-inch Ultra HD broadcast monitor designed for demanding broadcast, studio and live production environments. It combines a full-resolution 3840 x 2160 LCD with both 12G-SDI and SMPTE-2110 IP video connectivity, allowing it to integrate with traditional SDI equipment and modern IP-based broadcast systems.
The monitor features two 12G-SDI inputs and a reclocked SDI loop output, supporting SD, HD, 2K, Ultra HD and DCI 4K formats up to 2160p60. It also includes an SFP optical fiber connector cage for 2110 IP video and optical SDI workflows.
For IP-based production, the SmartView 4K G3 provides 10Gb Ethernet with support for SMPTE-2110-20, 2110-21, 2110-30 and 2110-40, along with PTP and NMOS IS-04 and IS-05. This makes it suitable for professional IP routing and broadcast infrastructure.
Monitoring tools include focus peaking, framing guides, H/V delay, blue-only mode, zoom, brightness controls and 3D LUTs. The monitor also provides a 9-pin D connector for tally and can be configured through USB or Ethernet.
The SmartView 4K G3 is an excellent choice for broadcast facilities, OB trucks, production studios and live events requiring accurate 4K monitoring with flexible SDI, optical and SMPTE-2110 IP connectivity.
For more professional monitoring equipment, explore Systec's Monitors, Broadcast Equipment, and Blackmagic Design products.
Frequently Asked Questions
What resolution does the SmartView 4K G3 support?
The monitor features a 3840 x 2160 pixel display and supports video formats up to 2160p60.
Does the SmartView 4K G3 support SMPTE-2110?
Yes. It supports SMPTE-2110 IP video through its 10Gb Ethernet connection and SFP optical interface.
How many SDI inputs does it have?
The SmartView 4K G3 has two 12G-SDI inputs and one reclocked SDI loop output.
Does it support 3D LUTs?
Yes. The monitor includes built-in 3D LUT support for monitoring creative looks, log footage and custom HDR profiles.
What video formats can it display?
It supports SD, HD, 2K, Ultra HD and DCI 4K formats, with support for frame rates up to 60 fps depending on the format.
Specs
xDisplay
| Display Size | 15.6" |
|---|---|
| Display Type | TFT Active Matrix LCD |
| Display Resolution | 3840 x 2160 Pixels |
| Response Time | 25 ms |
| Contrast Ratio | 1000:1 |
| Color Depth | 16.7 Million Colors |
SDI Connections
| SDI Inputs | 2 |
|---|---|
| SDI Output | 1 x Reclocked Loop Output |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082 |
| SDI Color Space | REC 601, REC 709 |
| Video Sampling | 4:2:2 and 4:4:4 |
| SDI Auto Switching | Automatically Selects SD, HD, 3G, 6G and 12G-SDI |
Optical and IP Video
| Optical Video Input | SFP Optical Fiber Connector Cage |
|---|---|
| Optical Support | SMPTE-2110 IP Video and Optical SDI |
| Ethernet | 1 x 10Gb/s RJ45, 10/100/1000/10G BASE-T |
| SMPTE-2110-20 | Uncompressed Video, IGMP v2 |
| SMPTE-2110-21 | Traffic Shaping |
| SMPTE-2110-30 | PCM Audio, Level C |
| SMPTE-2110-40 | Ancillary Data |
| Precision Time Protocol | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS IS-04 | v1.3.2 |
| NMOS IS-05 | v1.1.2 |
| IP Codec | Blackmagic IP10 Codec |
Supported Video Formats
| SD | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD | 720p, 1080i, 1080p and 1080PsF up to 60 fps |
| 2K | 2K DCI and 2K PsF up to 60 fps |
| Ultra HD | 2160p23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94 and 60 |
| 4K DCI | 4Kp23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94 and 60 |
Monitoring Features
| Focus Peaking | Supported |
|---|---|
| 3D LUT | Supported |
| Framing Guides | Supported |
| H/V Delay | Supported |
| Blue Only | Supported |
| Zoom | Supported |

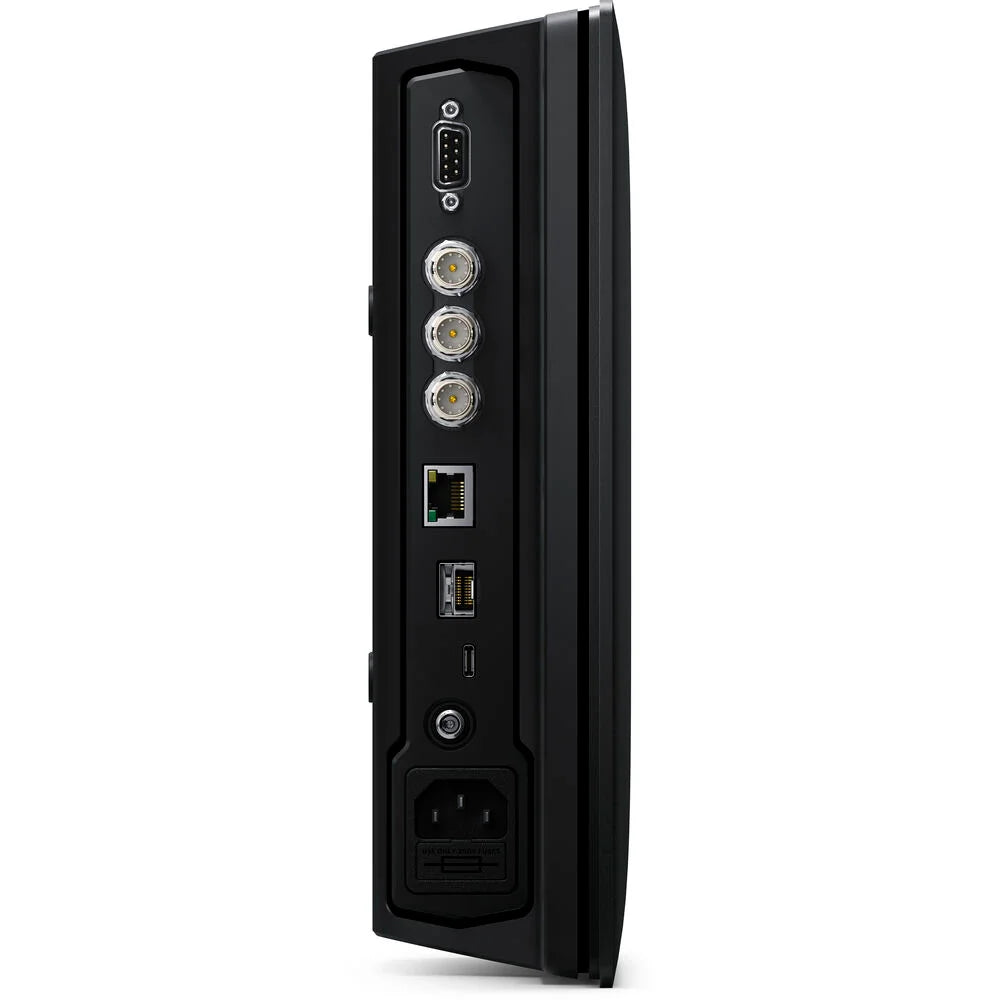

Other Connections
| Tally | 1 x 9-Pin D Connector |
|---|---|
| USB | USB for Updates and Configuration |
Power
| AC Power | 100–240V AC, 50/60Hz |
|---|---|
| AC Connector | 1 x IEC C14 |
| DC Input | 1 x 5.5mm Barrel, +12V DC |
| Power Consumption | 24 W |
Installation
| Rack Installation | 6 Rack Units |
|---|
Software
| Configuration | USB or Ethernet |
|---|---|
| Operating Systems | macOS 13 Ventura, macOS 14 Sonoma or Later; Windows 10 and 11 |
Environmental
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
|---|---|
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Relative Humidity | 0% to 90% Non-Condensing |
