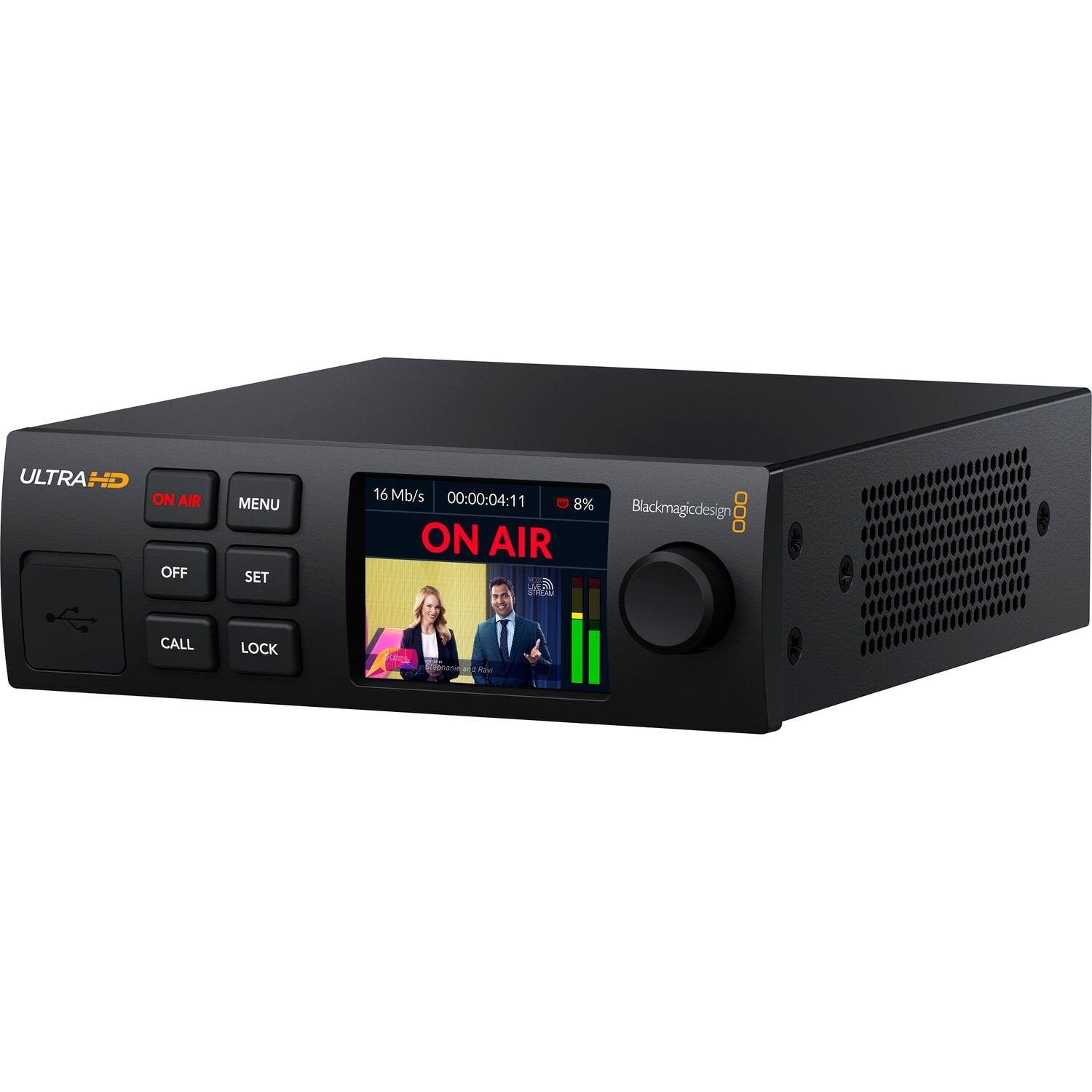

Blackmagic Design Streaming Encoder 4K
SKU: BDLKWEB/D/SED4K
Key Features
- H.264 & H.265 Streaming to SRT or RTMP
- 12G-SDI Input & Loop Output
- DCI 4K Streaming up to 60 fps
- Ethernet 10/100/1000BASE-T Support
- SDI & HDMI Monitor Outputs
- Integrated 2.2" LCD Screen
- USB-C for Phone Tethering & Webcam Out
- Tethers to 4G & 5G Phones for Streaming
- Front Panel Buttons & Spin Knob
- 100-240 VAC & 12 VDC Power Inputs
- 2,815.00 AED
- 2,815.00 AED
- Unit price
- per
Dimensions: 27 x 18 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Streaming Encoder 4K is a professional, self-contained streaming processor designed for live production, broadcasting, events, and online content delivery. It supports H.264 and H.265 streaming in HD and Ultra HD through SRT and RTMP protocols, allowing direct streaming to popular platforms without requiring a separate computer.

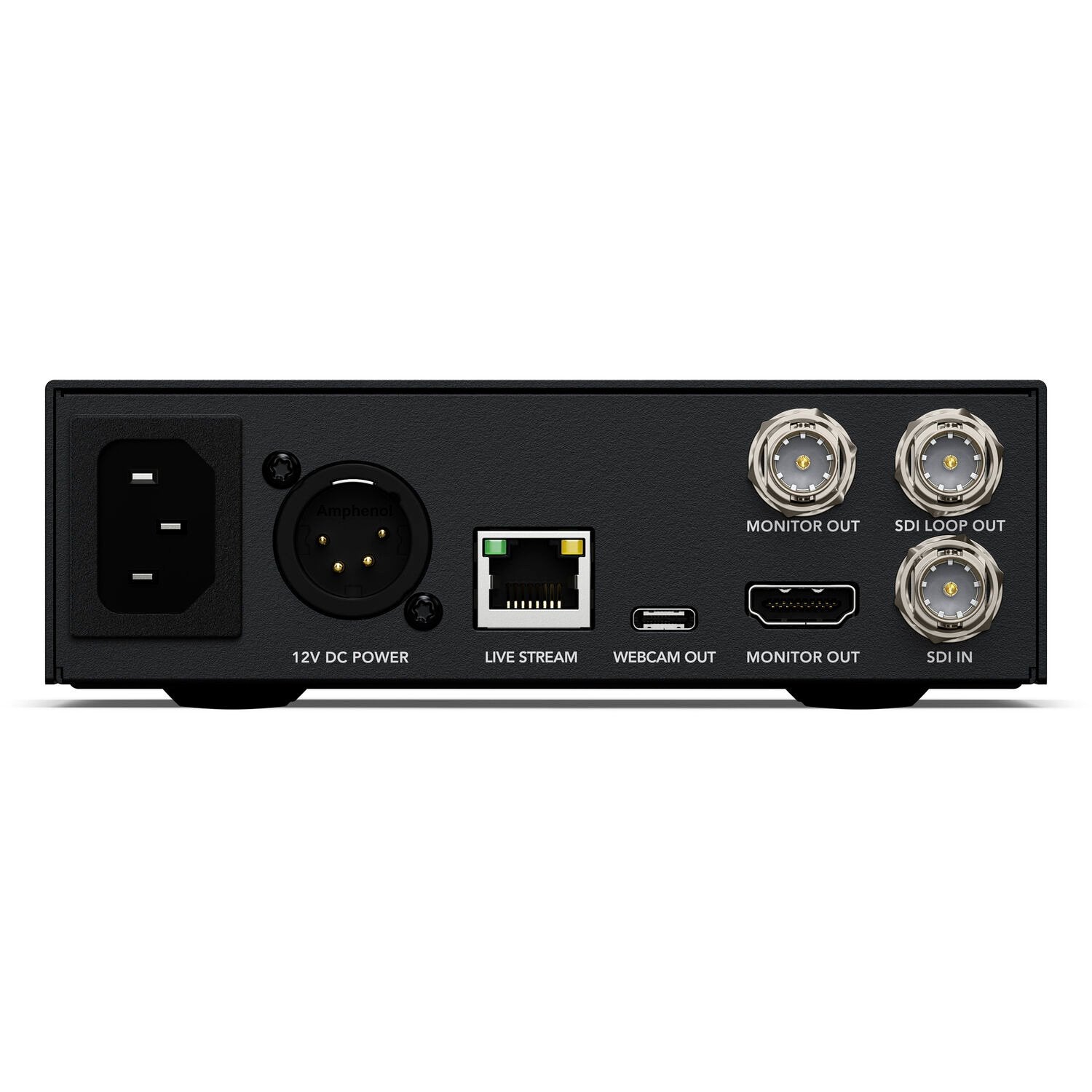

The encoder features a 12G-SDI input and loop output with support for resolutions up to DCI 4K at 60fps. SDI and HDMI monitor outputs allow you to monitor the video signal, while the built-in 2.2-inch color LCD displays video, audio levels, streaming status, and menu settings.
For flexible internet connectivity, the Streaming Encoder 4K includes 10/100/1000BASE-T Ethernet and USB-C connectivity for tethering to compatible 4G and 5G smartphones. The USB-C connection can also provide webcam output up to 2160p60, making it useful for video conferencing, streaming, and computer-based production workflows.
The unit supports embedded SDI audio, HDR metadata, closed captions, source timecode, and direct streaming to services and applications including YouTube, Facebook, X, Twitch, Vimeo, OBS Studio, Zoom, Microsoft Teams, and more. Its compact rack-friendly design and front-panel controls make it well suited for professional live-streaming environments.
For more professional video production equipment, explore Systec's Video Recorders & Players, Signal Processing, Converters, Distribution, and Switchers & Controllers collections.
Frequently Asked Questions
What is the Blackmagic Streaming Encoder 4K used for?
The Blackmagic Streaming Encoder 4K is designed for live streaming and broadcast workflows, allowing users to encode and stream video directly over Ethernet or through a tethered 4G/5G smartphone.
What video resolution does the Streaming Encoder 4K support?
It supports video input and streaming up to Ultra HD 4K at 60fps, including 2160p23.98 through 2160p60 formats.
Does the Blackmagic Streaming Encoder 4K support H.265?
Yes. It supports H.264 and H.265, with H.264 available for RTMP and H.264/H.265 available for SRT streaming.
Can the Streaming Encoder 4K connect to a 5G phone?
Yes. The encoder can connect to compatible 4G and 5G smartphones through USB-C and use the phone's mobile data connection for streaming.
Does it work as a webcam?
Yes. Its USB-C webcam output supports resolutions up to 2160p60, allowing the encoder to be used with compatible computers and applications for video conferencing and streaming.
Specs
xKey Specs
| Product Type | Professional Streaming Processor |
|---|---|
| Streaming Codecs | H.264, H.265 |
| Streaming Protocols | SRT, RTMP |
| Maximum Streaming Resolution | Ultra HD 4K up to 60 fps |
| SDI Video Input | 1 |
| SDI Loop Output | 1 |
| SDI Monitor Output | 1 |
| HDMI Monitor Output | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Webcam Output | 1 x USB-C up to 2160p60 |
| Ethernet | 10/100/1000 BASE-T |
Video Standards
| HD Video Input Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Ultra HD Video Input Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Video Streaming Standards | 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Video Input Color Space | Rec. 709, Rec. 2020 |
| HDR Metadata Support | Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000 |
SDI
| SDI Video Input | 1 |
|---|---|
| SDI Loop Output | 1 |
| SDI Monitor Output | 1 |
| SDI Audio Input | 16 Channels Embedded Audio |
| SDI Audio Output | 16 Channels Embedded Audio on Loop Out |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 |
HDMI
| HDMI Monitor Output | 1 |
|---|---|
| HDMI Audio Output | 2 Channels Embedded Audio |
| HDMI Monitor Output Standards | 1080p50, 1080p59.94, 1080p60 |
Streaming
| Direct Streaming | RTMP in H.264; SRT in H.264 and H.265 |
|---|---|
| Closed Captions | CEA-608 and CEA-708 |
| Timecode | Source Timecode over RTMP and SRT Streams |
| Compatible Services & Software | YouTube, Facebook, X, Twitch, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, VLC, Wirecast Play and Wowza Streaming Engine |
Control
| Control Panel | 6 Buttons, Spin Knob and 2.2" Color Display |
|---|---|
| Device Control | Front Panel, USB-C or Ethernet |
| External Control | Remote Camera Control, Color Corrector, Tally and Talkback |
| REST API | Supported over Ethernet |
Display
| Display | 2.2" Color LCD |
|---|---|
| Display Functions | Video, Audio, Streaming Status and Menu Settings |
Operating Systems
| Supported Operating Systems | macOS 13.0 Ventura or Later, Windows 10 64-bit, Windows 11, Linux and Chrome OS |
|---|
Power
| Power Supply | Internal 100-240V AC |
|---|---|
| 12V DC Input | 1 x 4-Pin XLR |
| Power Consumption | 25 W |
Environmental
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
|---|---|
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% Non-Condensing |
Installation
| Physical Installation | One Third Rack Unit Width, 1 Rack Unit Height |
|---|
