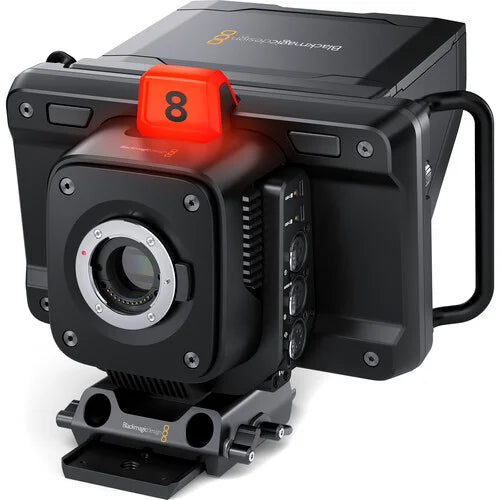

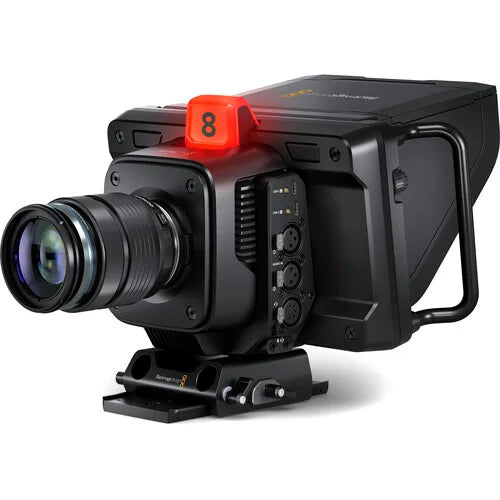

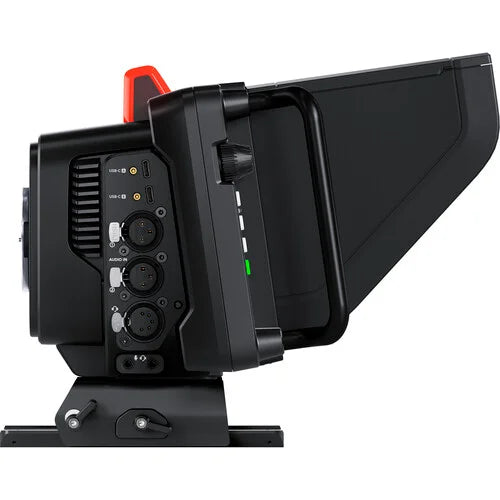

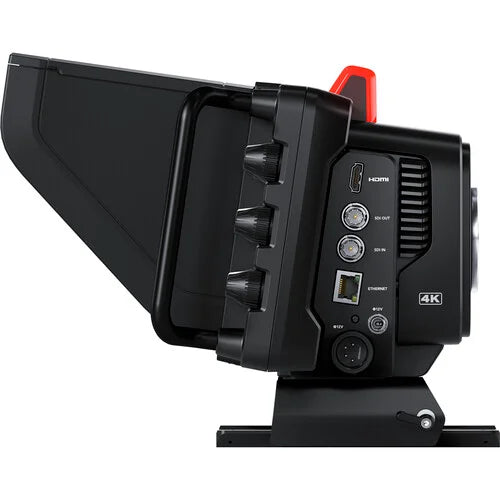

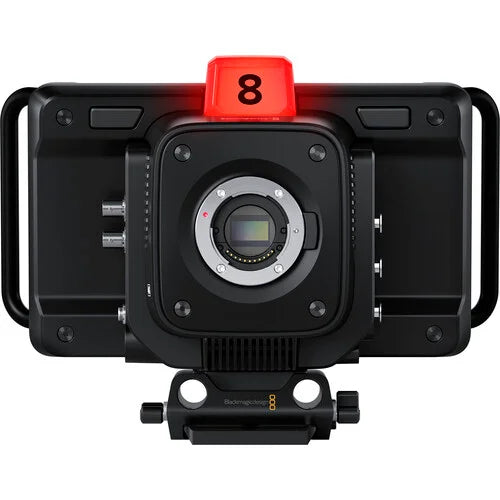

Blackmagic Design Studio Camera 4k Pro G2
SKU: CINSTUDMFT/G24PDFG2
Key Features
- Micro Four Thirds Lens Mount
- Capture up to UHD 4K 3840 x 2160p60
- Live Streaming
- 12G-SDI, HDMI & 10G Ethernet Video I/O
- Affordable Single-Cable PoE Workflow
- 7" High-Brightness HDR Touchscreen LCD
- Record to External USB Type-C Disks
- Records Blackmagic Raw, Up to 25,600 ISO
- 12G-SDI, HDMI & 10G Ethernet Video I/O
- XLR & 3.5mm Audio Input, Built-In Mics
- 7,673.00 AED
- 7,673.00 AED
- Unit price
- per
Dimensions: 31 x 26 x 22 cm
Weight: 4 kg
Description
xThe Blackmagic Design Studio Camera 4K Pro G2 is a compact professional studio camera designed for live production, broadcasting, streaming, and multi-camera workflows. It features an active Micro Four Thirds lens mount, a 4K sensor capable of recording up to 3840 x 2160 at 60fps, 13 stops of dynamic range, and dual native ISO for strong image quality in different lighting conditions.
Built for professional studio connections, the camera provides 12G-SDI, HDMI, and 10G Ethernet connectivity. The SDI program return supports camera control, tally, and talkback, while the 10G Ethernet connection can carry video, program return, camera control, tally, talkback, and power through a single cable when used with compatible equipment.

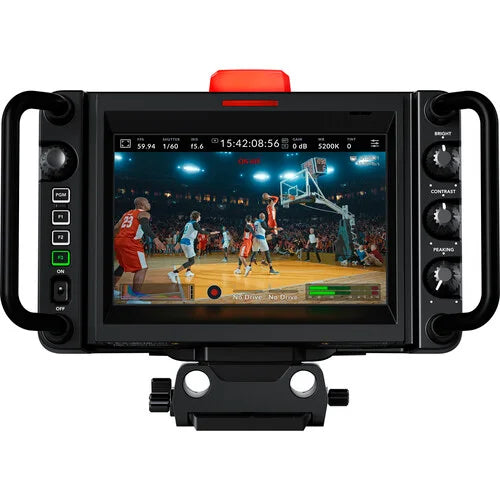

The 7-inch HDR touchscreen provides a large view for framing and monitoring, while Blackmagic RAW recording can be saved to external USB-C disks. The camera also supports direct live streaming through RTMP over Ethernet or a shared mobile connection through USB-C, making it useful for studios, events, churches, education, and live-streaming productions.
For more professional studio and broadcast camera solutions, explore Systec International’s Studio Chain Cameras collection.
FAQs
What resolution can the Studio Camera 4K Pro G2 record?
It supports Ultra HD recording up to 3840 x 2160 at 60fps and can also record to external USB-C disks using supported recording formats.
What lens mount does the camera use?
The camera uses an active Micro Four Thirds (MFT) lens mount with electronic control for iris, focus, and zoom on supported lenses.
Does the Studio Camera 4K Pro G2 support live streaming?
Yes. It supports direct RTMP live streaming over Ethernet or through a shared mobile internet connection using USB-C.
Does it have 10G Ethernet?
Yes. The camera includes 10Gb/s Ethernet, which can provide video, tally, talkback, camera control, and power in compatible workflows.
How bright is the 7-inch display?
The 7-inch 1920 x 1200 HDR touchscreen has a brightness of 2,000 nits.
Specs
xSpecifications
| Camera Type | Professional Studio Camera |
|---|---|
| Sensor Size | 17.78mm x 10mm Four Thirds |
| Lens Mount | Active Micro Four Thirds |
| Lens Control | Iris, focus and zoom on supported lenses |
| Dynamic Range | 13 stops |
| Native ISO | 0dB and 18dB gain |
| Recording Resolution | 3840 x 2160 Ultra HD up to 60fps |
| Project Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60fps |
| Screen | 7-inch 1920 x 1200 HDR LCD capacitive touchscreen |
| Screen Brightness | 2,000 nits |
| SDI | 12G-SDI output and 12G-SDI program input |
| HDMI | HDMI output with video, tally, camera control and record trigger |
| Ethernet | 10Gb/s |
| USB | 2 x USB Type-C 3.1 Gen 1 up to 5Gb/s |
| Audio Inputs | XLR and 3.5mm audio inputs |
| Microphone | Built-in stereo microphone |
| Streaming | RTMP over Ethernet or shared mobile internet via USB-C |
| Remote Control | SDI, HDMI or Ethernet |
| Power Inputs | 12V DC locking connector, 12V 4-pin XLR and Ethernet PoE |
| Power Consumption | 26–40W via DC input; 30–46W via PoE input |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
