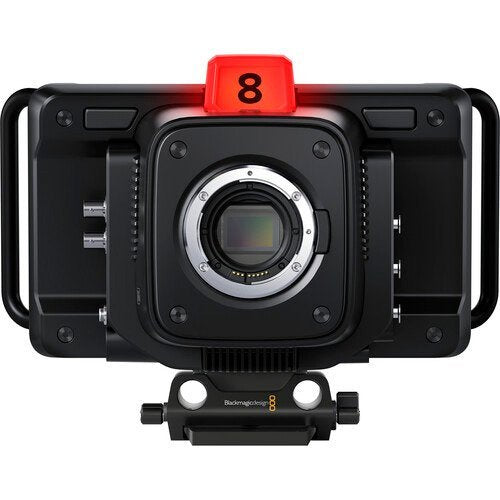

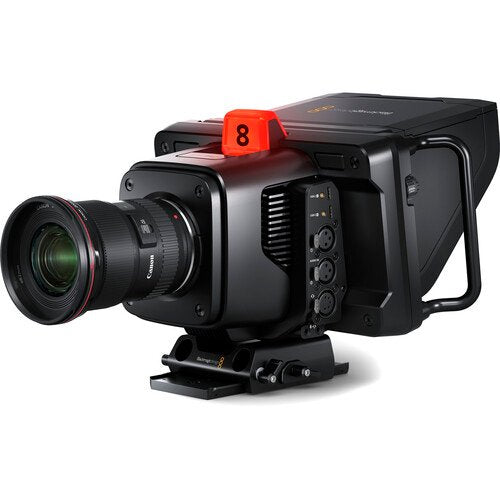

Blackmagic Design Studio Camera 6K Pro
SKU: CINSTUDMFT/G26PDK
Key Features
- Active Canon EF Lens Mount
- Capture up to 6K 6144 x 3456p50
- Live Streaming
- Remote Controlled ND Filters
- Raw Recording to External USB-C Disks
- Records Blackmagic Raw, Up to 25,600 ISO
- 7" High-Brightness HDR Touchscreen LCD
- 12G-SDI, HDMI & 10G Ethernet Video I/O
- XLR & 3.5mm Audio Input, Built-In Mics
- Built-In DaVinci Resolve Color Corrector
- 10,212.00 AED
- 10,212.00 AED
- Unit price
- per
Dimensions: 32 x 26.92 x 20.82 cm
Weight: 3.7 kg
Description
xThe Blackmagic Design Studio Camera 6K Pro is a professional studio camera designed for live production, broadcast, and cinematic workflows. It features a 6K Super 35 sensor, active EF lens mount, 13 stops of dynamic range, and dual native ISO for detailed images in different lighting conditions.
The camera includes built-in four-position ND filters with clear, 2-stop, 4-stop, and 6-stop IR ND options, making exposure control easier in changing lighting conditions. Its 7-inch 2000-nit HDR capacitive touchscreen provides a large, bright interface for camera settings, framing, and monitoring.
For professional studio and live workflows, the Studio Camera 6K Pro provides 12G-SDI, HDMI 2.0, 10G Ethernet, XLR audio inputs, USB-C recording, tally, talkback, and direct RTMP streaming. Explore more professional Digital Cinematography Cameras from Systec International.
FAQs
What sensor does the Studio Camera 6K Pro use?
It features a Super 35 sensor measuring 23.10 × 12.99mm and records up to 6K resolution.
What lens mount does it have?
The camera uses an active EF lens mount with electronic control for iris, focus, and zoom on supported lenses.
Does it have built-in ND filters?
Yes. It has four ND positions: clear, 2-stop, 4-stop, and 6-stop IR ND.
Can the camera stream directly?
Yes. It supports direct RTMP streaming over Ethernet or through a shared mobile internet connection via USB-C.
What recording media does it use?
It uses two USB-C 3.1 Gen 1 expansion ports for external media and supports Blackmagic RAW recording.
Specs
xSpecifications
| Product Type | Professional studio and live production camera |
|---|---|
| Sensor | Super 35, 23.10 × 12.99mm |
| Lens Mount | Active EF mount |
| Dynamic Range | 13 stops |
| Native ISO | 0dB and 18dB |
| Maximum Resolution | 6144 × 3456 (6K) up to 50 fps |
| 6K 2.4:1 | 6144 × 2560 up to 60 fps |
| 5.3K | 5376 × 3024 up to 60 fps |
| Ultra HD | 3840 × 2160 up to 60 fps |
| ND Filters | Clear, 2-stop, 4-stop and 6-stop IR ND |
| Display | 7-inch 1920 × 1200 capacitive touchscreen, 2000 nits |
| SDI | 1 x SDI input and 1 x SDI output, supporting 1.5G, 3G, 6G and 12G |
| HDMI | 1 x HDMI 2.0 output |
| Audio Inputs | 2 x XLR analog mic/line inputs with phantom power and 1 x 3.5mm stereo input |
| Audio Output | 5-pin XLR talkback headset output and 3.5mm TRRS headphone output |
| Ethernet | 10Gb/s |
| USB | 2 x USB-C 3.1 Gen 1 up to 5Gb/s |
| Recording | Blackmagic RAW to external USB-C media |
| File Systems | ExFAT and HFS+ |
| Streaming | RTMP over Ethernet or USB-C shared internet connection |
| Power Supply | External 12V DC 60W power supply |
| Power Inputs | 12V DC locking barrel, 12V 4-pin XLR and Type 4 PoE via Ethernet |
| Power Usage | 32–52W via DC input; 38–59W via Type 4 PoE |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
