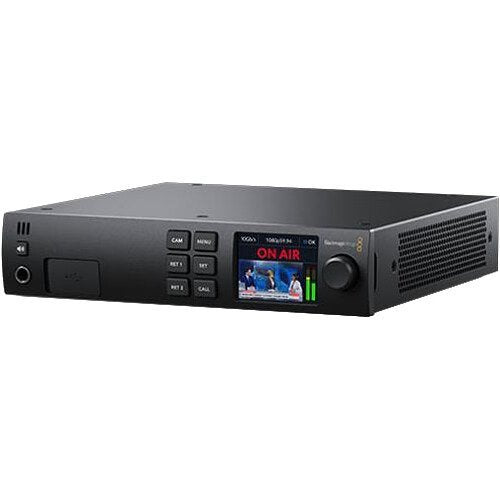

Blackmagic Design Studio Converter
SKU: CINSTUDMFT/H/SC
Key Features
- For Studio Camera 4K Pro
- Single 10G Ethernet Cable to Camera
- Powers Camera via PoE
- Breakout of Video, Audio & Talkback
- 3,882.00 AED
- 3,882.00 AED
- Unit price
- per
Dimensions: 26.67 x 26.67 x 8.89 cm
Weight: 1.78 kg
Description
xThe Blackmagic Design Studio Converter provides a professional studio workflow using a single 10G Ethernet connection between a compatible Blackmagic Studio Camera and the studio. It carries the camera feed, return program feed, timecode, reference, tally, talkback, control, and camera power over one Ethernet cable.
Designed for the Blackmagic Studio Camera 4K Pro and compatible Studio Camera Pro models, the converter provides a cost-effective alternative to traditional SMPTE fiber workflows. Its 10G Ethernet connection can carry the required camera signals while also supplying power to the camera through PoE.

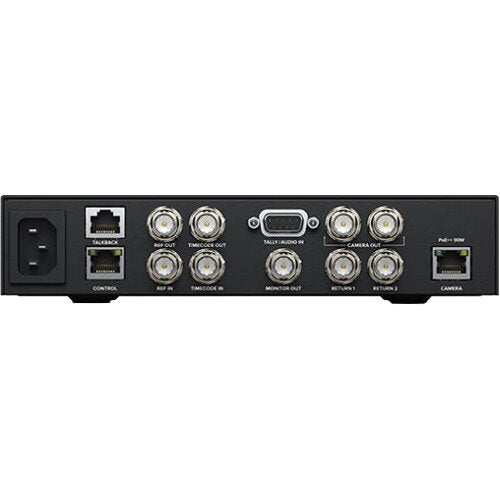

At the studio end, the Blackmagic Studio Converter provides breakout connections for video, audio, talkback, timecode, reference, and other production signals. It also converts camera and program return feeds to SDI, making it easier to integrate a Studio Camera into a professional broadcast or production environment.
The converter supports 1.5G, 3G, 6G, and 12G-SDI and can handle HD and Ultra HD video formats up to 2160p60. It provides 10-bit 4:2:2 video processing with support for Rec. 709 and Rec. 2020 color spaces.
For production communication, the Studio Converter supports production and engineering talkback, along with program audio. It also includes reference and timecode connections for professional studio synchronization workflows.
The built-in 2.2-inch color display and control panel provide convenient access to device settings and monitoring information. The converter also includes a built-in speaker and Ethernet connectivity for external control and software updates.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Studio Converter used for?
The Studio Converter connects compatible Blackmagic Studio Cameras to a studio using a single 10G Ethernet cable while carrying camera video, return video, audio, talkback, tally, timecode, reference, control, and camera power.
Can the Studio Converter power the camera?
Yes. The converter can provide PoE power to a compatible Studio Camera through the 10G Ethernet connection, eliminating the need for a separate camera power connection.
What type of Ethernet connection does it use?
It uses a 10Gb/s RJ-45 Ethernet connection for the camera and a separate 1Gb/s Ethernet connection for external control and software updates.
Specs
x| Component | Specification |
|---|---|
| SDI Video Inputs | 2 |
| SDI Video Outputs | 2 |
| SDI Monitor Output | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Camera Ethernet | 1 x 10Gb/s PoE RJ-45 |
| External Control Ethernet | 1 x 1Gb/s RJ-45 |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | Rec. 709, Rec. 2020 |
| Multiple Rate Support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Audio Input | Return 1 with 2 channels of program audio and Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI |
| SDI Audio Output | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI |
| Talkback Audio | 4 talkback channels on SDI channels 13, 14, 15 and 16 |
| Analog Audio Input | 2-channel analog program audio input via 9-pin connector |
| Analog Audio Output | 1 x 6.35 mm headphone jack |
| Timecode Connections | 1 x BNC input and 1 x BNC output |
| Reference Connections | 1 x BNC input and 1 x BNC output; Tri-Sync or Black Burst |
| Built-In Speaker | 1 x mono speaker |
| Display | 2.2-inch color LCD |
| Built-In Control Panel | 7 buttons with spin knob control |
| Computer Interface | 1 x USB-C |
| Software Included | Camera Utility for firmware updates |
| Operating Systems | macOS 13.0 Ventura, macOS 14.0 Sonoma or later, Windows 10 and 11 |
| Power Supply | Internal 100-240V AC, 50/60Hz |
| Power Consumption | 40W maximum plus camera power usage |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Studio Converter |
| Warranty | 1 Year Limited Manufacturer's Warranty |
