Blackmagic Design StudioBridge 10G PWR
SKU: CONVNVIPR/SBB10X8P
Key Features
- Convert 8 Channels of 4K60 10-Bit Video
- 8 x 10GbE Video Inputs with 90W PoE++
- Dual Redundant 100GbE Video Outputs
- SMPTE 2110 IP Video Compliance
- 2.2" LCD Monitor & Control Knob/Buttons
- External Control via RJ45 & USB-C
- 16 Channels of Embedded Audio per Input
- 2 RU Form Factor
- Dual Redundant AC Power Inputs
- Built-In Headphone Jack & Speaker
- 10,285.00 AED
- 10,285.00 AED
- Unit price
- per
Dimensions: 48.3 x 22.1 x 8.9 cm
Description
xThe Blackmagic Design StudioBridge 10G PWR is a professional IP video bridge designed to connect up to eight 10G Ethernet SMPTE 2110 devices to a redundant 100G Ethernet broadcast infrastructure. It combines eight 10G connections into dual 100G QSFP28 connections, making it ideal for modern broadcast studios, live production environments, and IP video workflows.

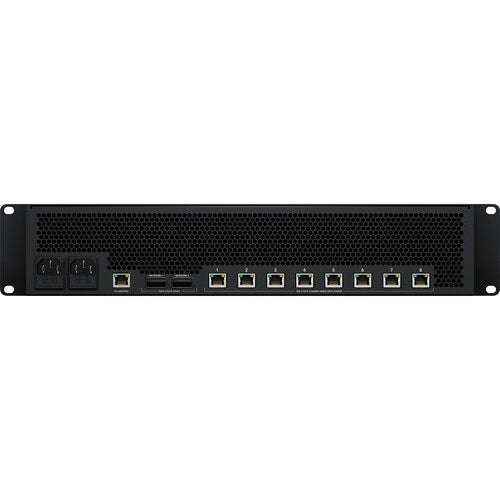

Each of the eight 10G RJ45 connections provides 90W of PoE++, allowing compatible cameras, converters, and other devices to receive power directly through the network connection. This can simplify studio installations by reducing the need for separate power supplies.
The StudioBridge 10G PWR supports SMPTE 2110 standards and SMPTE 2022-7 redundant delivery, providing a reliable solution for professional IP video networks. It supports HD and Ultra HD video, including up to 2160p60, with 10-bit 4:2:2 YUV video.

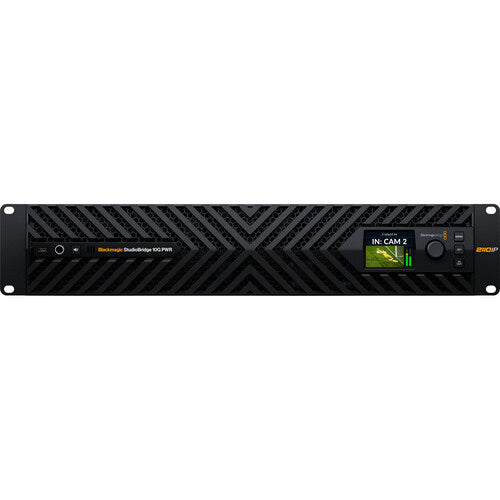

For monitoring and configuration, the unit features a 2.2-inch color LCD, three control buttons, and a rotary control knob. External control and configuration are available through RJ45 Ethernet and USB-C, while embedded audio support provides up to 16 channels per SMPTE 2110 video stream.

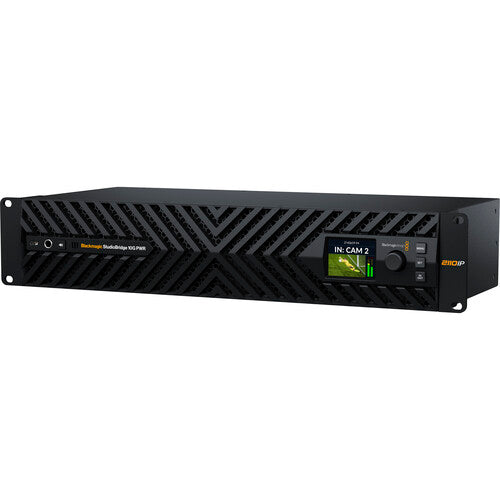

The 2RU rackmount design, dual redundant AC power inputs, built-in speaker, and headphone output make the StudioBridge 10G PWR well suited for demanding broadcast and live production systems where reliability and centralized connectivity are important.
If you're building a professional IP video workflow, explore more Blackmagic Design products from Systec International, including cameras, broadcast equipment, switchers, recorders, and other professional video solutions.
Frequently Asked Questions
What is the Blackmagic Design StudioBridge 10G PWR?
The StudioBridge 10G PWR is a professional IP video bridge designed to connect 10G Ethernet devices to 100G SMPTE 2110 networks.
How many 10G connections does the StudioBridge 10G PWR support?
It provides 8 x 10G RJ45 inputs with 90W PoE++ for compatible devices.
Does the StudioBridge 10G PWR support PoE++?
Yes. Each of its 8 x RJ45 10G connections provides up to 90W of PoE++ power.
Does the StudioBridge 10G PWR support redundant 100G networking?
Yes. It features 2 x QSFP28 100G outputs and supports SMPTE 2022-7 redundant networking.
Does the StudioBridge 10G PWR support 4K video?
Yes. The StudioBridge 10G PWR supports 4K video workflows up to 4K60 with 10-bit video.
Is the Blackmagic Design StudioBridge 10G PWR rack mountable?
Yes. The unit features a 2RU form factor and is designed for professional rack-mounted broadcast environments.
In the Box
x- Blackmagic Design StudioBridge 10G PWR
- Limited 1-Year Manufacturer Warranty
Specs
x| Brand | Blackmagic Design |
|---|---|
| Model | StudioBridge 10G |
| Display | |
| Panel Type | LCD |
| Size | 2.2" |
| Touchscreen | No |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 8x RJ45 10G Input 2x QSFP28 100G Output |
| Audio I/O | 1x 1/4" Headphone Output |
| Other I/O | 1 x RJ45 1G Control Input |
| Power | |
| Power Source | AC Input (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Output Power | 8 x RJ45 PoE++ (90W) |
| Physical | |
| Mounting | 4x Unthreaded Rackmount Hole |
| Color | Black |
| Certifications | SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7 |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19 x 8.7 x 3.5" / 48.3 x 22.1 x 8.9 cm |
