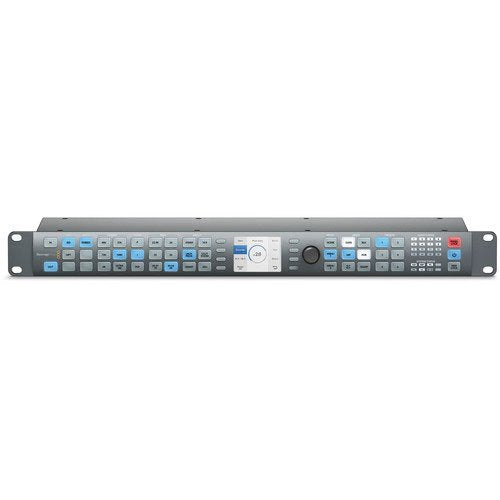

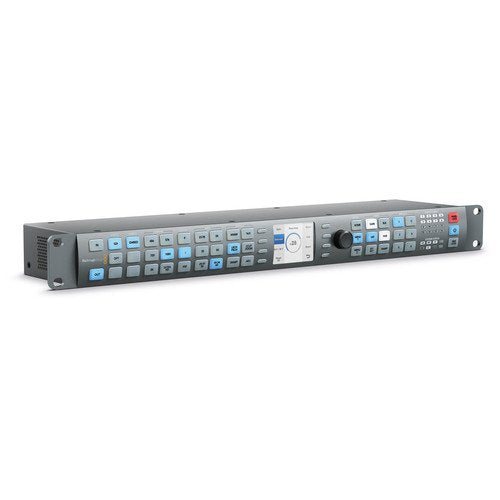

Blackmagic Design Teranex Express
SKU: TERANEXEXP12GDL
Key Features
- Real-Time Up/Down Broadcast Converter
- 12G-SDI and Dual Link 6G-SDI In/Out
- SD/HD/3G-SDI Compatible
- SD, HD, and Ultra HD (3840x2160) Support
- Adjustable Scaling
- Aspect Ratio Conversion
- Timecode and Subtitle Support
- Genlock Reference Input
- Optional Optical Fiber Output Module
- Built-In, International Power Supply
- 5,553.00 AED
- 5,553.00 AED
- Unit price
- per
Dimensions: 49.4 x 21.46 x 7.74 cm
Weight: 1.17 kg
Description
xThe Blackmagic Design Teranex Express is a professional real-time broadcast standards converter designed for SD, HD, 2K, and Ultra HD workflows. It provides 1089 different up, down, cross, and standards conversions with 10-bit processing, high-quality de-interlacing, noise reduction, cadence detection, and adjustable scaling.
Teranex Express features 12G-SDI and 6G-SDI connectivity with support for SD, HD, 3G-SDI, 2K, and Ultra HD signals. It also provides SDI loop outputs, optional optical fiber connectivity, and reference input for synchronizing external video sources in professional production environments.
The converter maintains timecode and embedded audio during conversions and supports aspect ratio conversion, color space conversion, closed captions, AFD/WSS metadata, and test patterns. A built-in LCD, illuminated controls, Ethernet remote control, and USB software updates make it practical for broadcast and post-production workflows.
For more professional video conversion and signal processing equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What is the Blackmagic Design Teranex Express used for?
It is used for real-time conversion between SD, HD, 2K, and Ultra HD video formats in broadcast, production, and post-production workflows.
Does Teranex Express support 4K?
Yes. It supports Ultra HD 3840 × 2160 formats up to 2160p60 through its SDI connections.
What SDI connections does it have?
It provides 12G-SDI and 6G-SDI input and output connections, with support for lower SDI rates including SD, HD, and 3G-SDI.
Does it support optical fiber?
Yes. Teranex Express has an optional SMPTE optical fiber SFP socket for compatible fiber modules.
Can it preserve timecode and audio?
Yes. It supports VITC/ATC timecode and 16 channels of embedded SDI audio for both inputs and outputs.
Specs
xSpecifications
| Product Type | Professional broadcast standards converter |
|---|---|
| SDI Inputs | 1 x 12G-SDI and 1 x 6G-SDI |
| SDI Outputs | 1 x 12G-SDI and 1 x 6G-SDI |
| SDI Loop Outputs | 2 x reclocked SDI loop outputs |
| Quad SDI Output | Quad HD Split using SMPTE 435-1 |
| Optical Fiber | Optional SMPTE optical fiber SFP connection |
| Video Formats | SD, HD, 2K, 3G HD, 6G Ultra HD, and 12G Ultra HD |
| Ultra HD Support | 3840 × 2160 up to 2160p60 |
| Video Sampling | 4:2:2 SDI |
| Color Precision | 10-bit |
| Color Space | Rec. 601 and Rec. 709 |
| SDI Audio | 16 channels input and 16 channels output |
| Audio Sampling | 48 kHz, 24-bit |
| Timecode | VITC/ATC input and output |
| Reference Input | Black Burst or Tri-level Sync |
| Processing | Up conversion, down conversion, cross conversion, and standards conversion |
| Aspect Ratio Conversion | Real-time variable and fixed aspect ratio conversion |
| Colorspace Conversion | Hardware-based real-time conversion |
| Computer Interface | USB 2.0 Mini-B and RJ45 10/100 Ethernet |
| Software Control | Teranex Setup software |
| Power Supply | Built-in international AC power supply, 100–240V, 50–60Hz |
| Power Consumption | 42W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Mounting | 1RU rackmount |
| Warranty | 1 Year Limited Manufacturer's Warranty |
