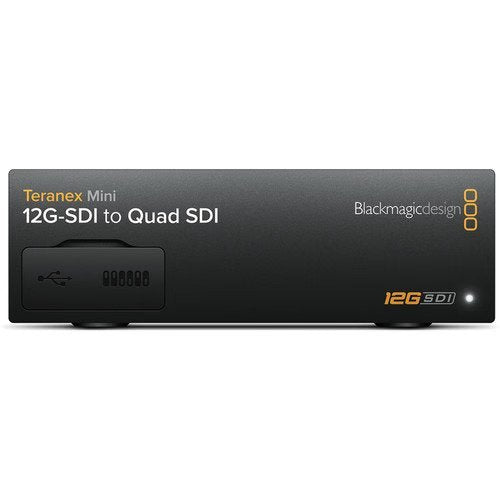

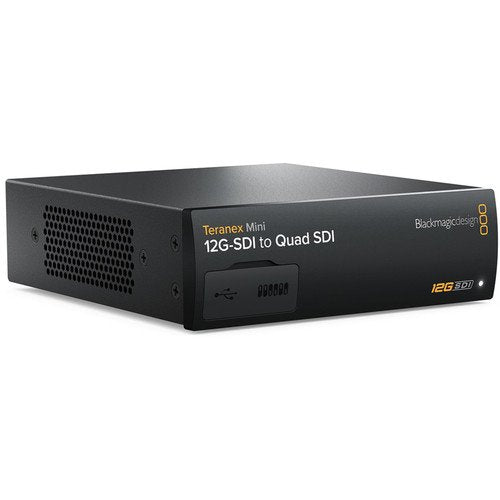

Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
SKU: CONVNTRM/DB/SDIQD
Key Features
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
- 2,462.00 AED
- 2,462.00 AED
- Unit price
- per
Dimensions: 23 x 21 x 6 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter converts a single 12G-SDI signal into four 3G-SDI outputs, allowing modern 12G-SDI equipment to connect with Quad Link SDI displays and production systems. It supports SD, HD, 2K, Ultra HD, and DCI 4K signals with automatic input detection.

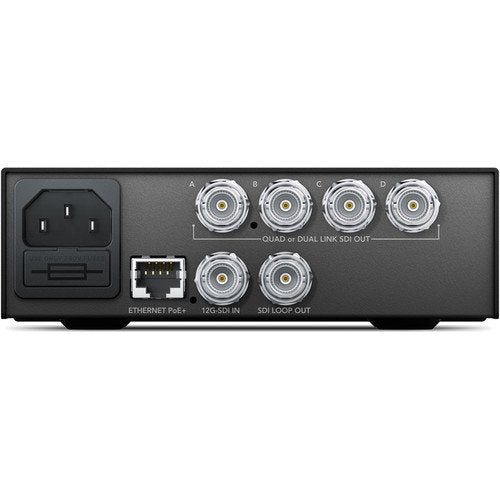

The converter provides one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI outputs. It can also split Ultra HD SDI into four HD SDI outputs for applications such as video walls and monitoring systems.
With support for up to 16 channels of embedded 24-bit, 48 kHz audio, the Teranex Mini fits professional broadcast, studio, post-production, and multi-display workflows. Ethernet and USB provide configuration and firmware updates, while PoE+ allows the unit to receive power through a compatible network connection.
For more professional broadcast converters and distribution equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini 12G-SDI to Quad SDI Converter do?
It converts a 12G-SDI input into four 3G-SDI outputs for connecting 12G-SDI equipment with Quad Link SDI systems.
Does it support 4K video?
Yes. It supports SD, HD, 2K, Ultra HD, and DCI 4K formats, including Ultra HD up to 2160p60.
Does it have an SDI loop output?
Yes. It provides one 12G-SDI loop output in addition to the four 3G-SDI outputs.
How many audio channels does it support?
It supports up to 16 channels of embedded audio at 24-bit and 48 kHz.
Can it be powered through Ethernet?
Yes. The converter supports 48V DC PoE+ as well as its built-in 100–240V AC power supply.
Specs
xSpecifications
| Product Type | 12G-SDI to Quad Link 3G-SDI converter |
|---|---|
| SDI Input | 1 x 12G-SDI with automatic SD/HD/2K/4K switching |
| SDI Loop Output | 1 x 12G-SDI loop output |
| SDI Outputs | 4 x 3G-SDI |
| Supported Video Formats | SD, HD, 2K, Ultra HD, and 4K DCI |
| Maximum Video Format | Ultra HD up to 2160p60 |
| SDI Rates | SD, HD, Level A and Level B 3G-SDI, 6G-SDI, and 12G-SDI |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Space | YUV and RGB |
| Embedded Audio | 16 channels, 48 kHz, 24-bit |
| SDI Reclocking | Yes |
| Control | Mini switches, USB, and Ethernet |
| Software Control | Blackmagic software via USB and Ethernet |
| Optional Front Panel | Teranex Mini Smart Panel with LCD, rotary knob, and six buttons |
| Power Supply | Built-in 100–240V AC power supply with IEC C14 inlet |
| Power over Ethernet | 48V DC PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Supported Operating Systems | macOS 10.15 Catalina or later and Windows 10 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
