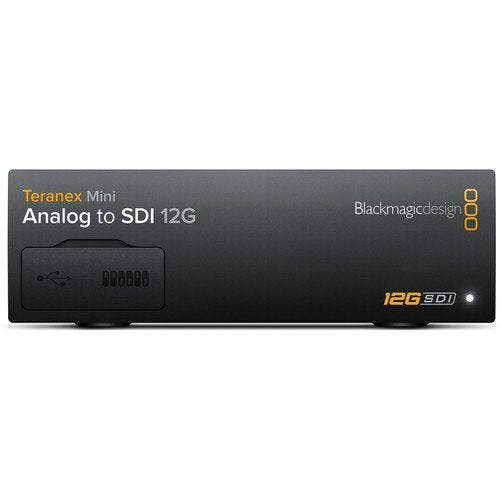

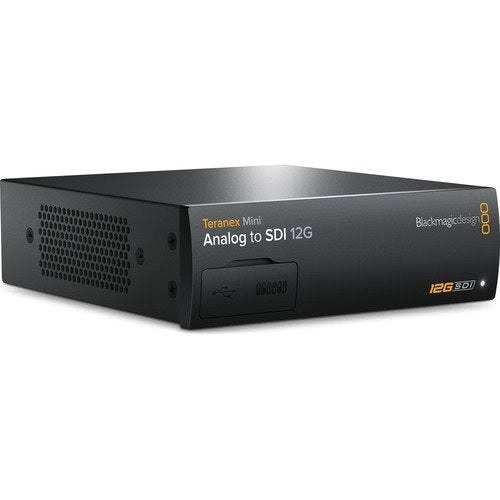

Blackmagic Design Teranex Mini Analog to SDI 12G Converter
SKU: CONVNTRM/BB/ANSDI
Key Features
- Converts analog video signals to SDI for professional broadcast and production workflows
- Supports Composite, Y/C and Component analog video inputs
- Dual 12G-SDI outputs for reliable signal distribution
- Supports SD, HD and Ultra HD video standards up to 2160p60
- Supports 3G-SDI, 6G-SDI and 12G-SDI video rates
- Embeds balanced analog and AES/EBU digital audio into SDI
- Supports YUV 4:2:2 and RGB 4:4:4 video formats
- Built-in SDI reclocking for stable signal output
- USB and Ethernet connectivity for software control and settings
- Supports 48V DC Power over Ethernet (PoE+)
- Optional Smart Panel with LCD display, rotary knob and settings buttons
- Built-in international power supply supporting 100–240V AC
- 2,521.00 AED
- 2,521.00 AED
- Unit price
- per
Dimensions: 24 x 21 x 6 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini Analog to SDI 12G is a professional converter designed to transform analog video sources into SD, HD, 6G and 12G-SDI signals. It supports Composite, Y/C and Component video inputs, making it suitable for connecting legacy equipment such as Betacam SP decks, VHS players, set-top boxes, gaming consoles and HDV cameras to modern SDI workflows.
The converter provides two 12G-SDI outputs and supports video up to Ultra HD 2160p60. It can also embed balanced analog audio or AES/EBU digital audio into the SDI output, making it useful for broadcast studios, live production and professional video systems.
For more professional video conversion and signal distribution equipment, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini Analog to SDI 12G do?
It converts analog video and audio signals into SDI signals for use with modern professional video equipment.
What analog video inputs are supported?
It supports Composite, Y/C (S-Video) and Component video inputs.
Does it support 4K?
Yes. It supports Ultra HD video formats up to 2160p60.
How many SDI outputs does it have?
It provides two 12G-SDI outputs.
Can audio be embedded into the SDI signal?
Yes. The converter supports two channels of balanced analog audio and four channels of AES/EBU digital audio for embedding into the SDI output.
Specs
xSpecifications
| Product Type | Analog to SDI 12G Converter |
|---|---|

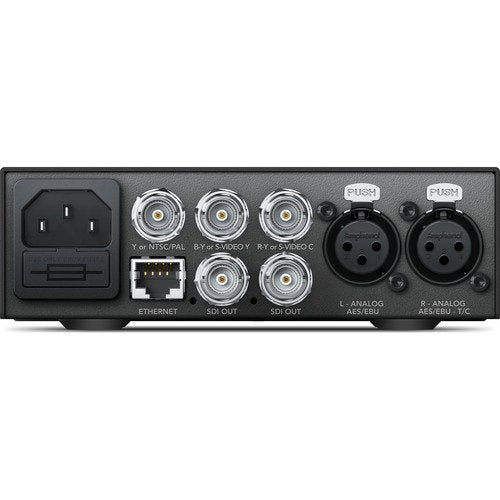

| SDI Video Outputs | 2 x 12G-SDI |
| Analog Video Inputs | Composite, Y/C or Component |
| Analog Audio Inputs | 2 channels professional balanced analog audio via XLR |
| Digital Audio Inputs | 4 channels professional 110Ω balanced AES/EBU via XLR |
| Video Standards | SD, HD and Ultra HD |
| Maximum Video Resolution | 2160p60 |
| SDI Video Rates | SD, 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Space | REC 601, REC 709 |
| SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB and Ethernet |
| Settings Control | Mini switches, USB and Ethernet |
| Optional Front Panel | Smart Panel with LCD, rotary knob and six settings buttons |
| Power Supply | 100–240V AC, built-in international power supply |
| Power over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
