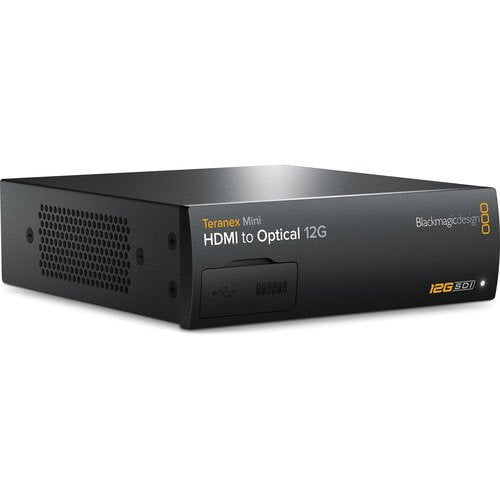

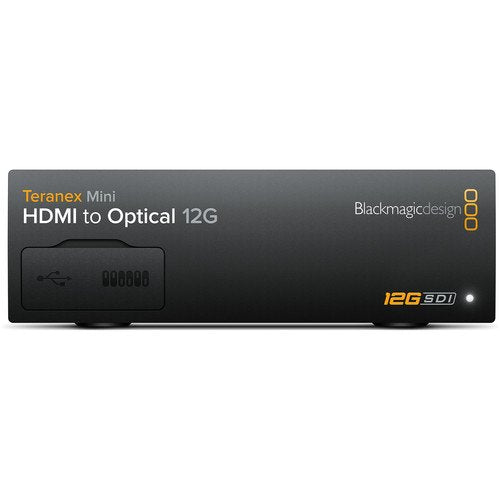

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter
SKU: CONVNTRM/MB/HOPT
Key Features
- Converts HDMI to 12G-SDI and optional optical fiber
- HDMI 2.0 input supporting up to 2160p60
- 1 x 12G-SDI output
- Optional 3G, 6G, or 12G optical SFP support
- Supports SD, HD, 2K, Ultra HD, and selected 4K DCI formats
- Automatic multi-rate switching
- SDI reclocking for stable signal transmission
- 16 channels of embedded audio
- 2-channel balanced analog audio via XLR
- 4-channel 110Ω balanced AES/EBU digital audio via XLR
- Ethernet for remote configuration and software updates
- PoE+ support
- Optional Teranex Mini Smart Panel with LCD and controls
- Built-in 100–240V AC power supply
- 2,388.00 AED
- 2,388.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 6 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini HDMI to Optical 12G Converter converts HDMI video to 12G-SDI and optional SMPTE optical fiber for professional broadcast, live production, and video distribution. It supports HDMI 2.0 input up to Ultra HD 2160p60 and can output video through 12G-SDI or an optional 3G, 6G, or 12G optical SFP module.
The converter supports SD, HD, 2K, Ultra HD, and selected 4K DCI formats with automatic multi-rate switching and SDI reclocking. It also provides 16 channels of embedded audio, along with two channels of balanced analog audio and four channels of professional digital AES/EBU audio through XLR connections.
Ethernet provides remote setup and configuration through Blackmagic software and also supports PoE+. The unit includes a built-in 100–240V AC power supply and can be fitted with an optional Teranex Mini Smart Panel for LCD monitoring and front-panel controls.
For more professional broadcast converters and signal-routing equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini HDMI to Optical 12G do?
It converts HDMI video to 12G-SDI and can also send video over optional 3G, 6G, or 12G-SDI optical fiber.
Does it support 4K video?
Yes. The HDMI input supports Ultra HD up to 2160p60, with support for selected 4K DCI formats as well.
Is the optical SFP module included?
No. The optical SFP module is optional and sold separately. Compatible 3G, 6G, and 12G optical SFP modules can be selected for the required workflow.
Does it support professional audio?
Yes. It supports 16 channels of embedded audio plus balanced analog and AES/EBU digital audio through XLR connections.
Can it be controlled remotely?
Yes. Ethernet provides remote configuration and software control, while PoE+ can also be used to power the converter.
Specs
xSpecifications
| Product Type | HDMI to 12G-SDI and optical fiber converter |
|---|---|
| HDMI Input | 1 x HDMI 2.0 Type A, up to 2160p60 |
| SDI Output | 1 x 12G-SDI |
| Optical Fiber | Optional 3G/6G/12G-SDI optical SFP |
| Video Standards | SD, HD, 2K, Ultra HD and 4K DCI |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
| SDI Compliance | SMPTE 259M, 292M, 296M, 297M, 372M, 424M, 2081-1, 2081-10, 2082-1 and 2082-10 |
| Embedded Audio | 16 channels, 48 kHz, 24-bit |
| Analog Audio Input | 2-channel balanced analog audio via XLR |
| Digital Audio Input | 4-channel 110Ω balanced AES/EBU via XLR |
| Timecode | Right XLR configurable for timecode input |
| Reclocking | Yes |
| Control and Updates | USB and Ethernet |
| Front Panel | Optional Teranex Mini Smart Panel with LCD, rotary knob and six buttons |
| Power Supply | Built-in 100–240V AC power supply with IEC C14 inlet |
| Power over Ethernet | 48V DC PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
