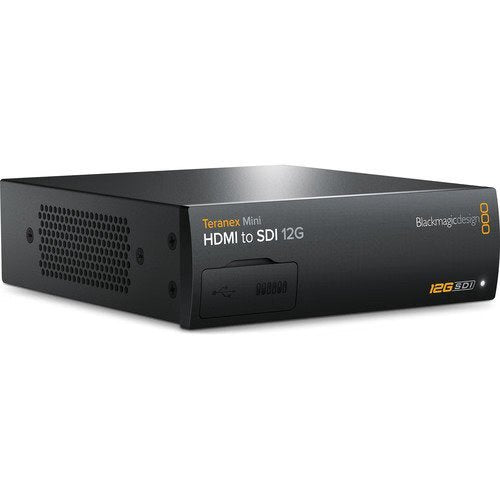

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
SKU: CONVNTRM/AB/HSDI
Key Features
- Advanced High-Data Rate Signal Converter
- Supports Up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI Outputs
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
- 2,521.00 AED
- 2,521.00 AED
- Unit price
- per
Dimensions: 23.11 x 20.26 x 6.09 cm
Weight: 0.841 kg
Description
xThe Blackmagic Design Teranex Mini HDMI to SDI 12G Converter converts HDMI video signals to professional 12G-SDI for broadcast, live production, post-production, and studio workflows. It supports HDMI 2.0 input and video formats up to 4K DCI 4096x2160p.
The converter provides two independent 12G-SDI outputs, allowing HDMI sources such as cameras and computers to be integrated into professional SDI-based systems. It also supports SD, HD, 2K, Ultra HD, and 4K formats with automatic multi-rate switching.
For audio integration, the Teranex Mini includes XLR connections that can handle balanced analog or AES/EBU digital audio. Ethernet provides remote control and PoE+ support, while USB and Ethernet can be used for configuration and software updates. For more professional signal processing and broadcast conversion solutions, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini HDMI to SDI 12G Converter do?
It converts HDMI video signals into professional 12G-SDI outputs for broadcast and professional video systems.
What is the maximum supported HDMI resolution?
It supports HDMI video up to 4K DCI 4096x2160p.
How many SDI outputs does it have?
It provides two independent 12G-SDI outputs.
Does it support external audio?
Yes. It supports balanced analog and AES/EBU digital audio through XLR inputs.
Can it be controlled remotely?
Yes. Ethernet can be used for remote control, while USB and Ethernet support configuration and software updates.
Specs
xSpecifications

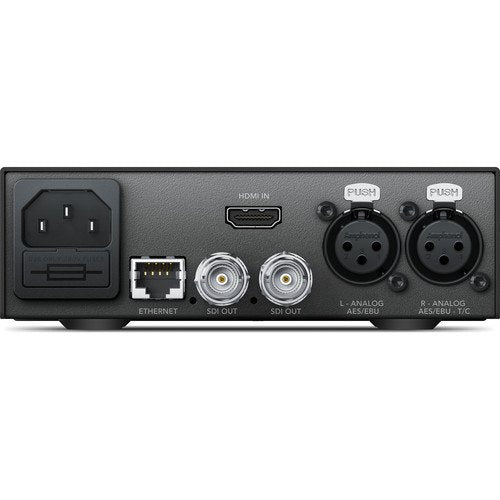

| Product Type | HDMI to SDI 12G Converter |
|---|---|
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| SDI Video Outputs | 2 x 12G-SDI |
| Maximum Resolution | 4K DCI 4096x2160p |
| Supported Video Standards | SD, HD, 2K, Ultra HD and 4K |
| SDI Video Rates | SDI, 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Space | YUV |
| HDMI Color Space | REC 601, REC 709 |
| HDMI Color Precision | YUV 4:2:2 in HD, 2K and 4K |
| Analog Audio Inputs | 2 channels professional balanced analog audio via XLR |
| Digital Audio Inputs | 4 channels professional 110Ω balanced AES/EBU via XLR |
| Embedded Audio Support | 16 channels |
| Format Conversion | HD up-conversion and down-conversion |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB and Ethernet |
| Settings Control | Mini switches, USB and Ethernet |
| Optional Front Panel | Smart Panel with LCD, rotary knob and six settings buttons |
| Power Supply | 100–240V AC, built-in international power supply |
| Power over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
