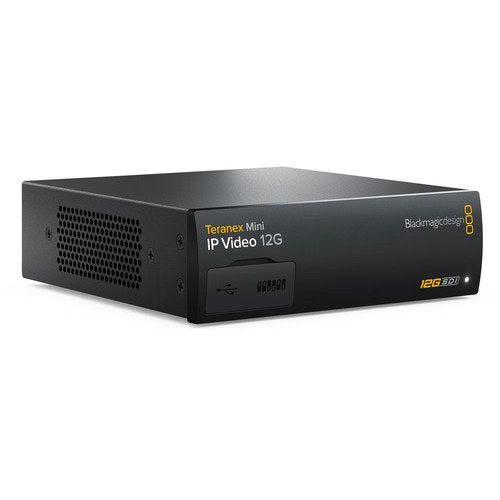

Blackmagic Design Teranex Mini IP Video 12G
SKU: CONVNTRM/OB/IPV
Key Features
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
- 2,337.00 AED
- 2,337.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini IP Video 12G is a professional SDI-to-IP encoder and decoder designed for broadcast and live production workflows. It supports 12G-SDI signals and uses TICO compression to transport high-quality video over standard Ethernet networks.

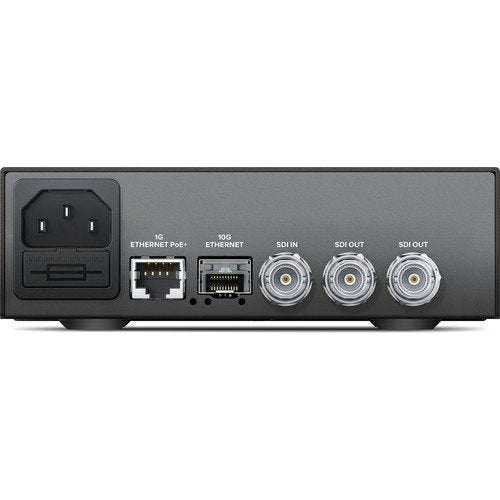

The unit features one 10-bit 12G-SDI input and two independent 12G-SDI outputs. Gigabit Ethernet supports video up to 1080p60, while an optional 10G optical Ethernet connection enables Ultra HD workflows up to 2160p60.
Multiple Teranex Mini IP Video 12G units can be connected across the same network and managed using Blackmagic Videohub software. An optional Teranex Mini Smart Panel adds an LCD display, rotary control, and buttons for local setup and monitoring. The unit can also be powered through PoE+ for suitable network installations.
For professional broadcast converters and signal-routing equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What is the Teranex Mini IP Video 12G used for?
It converts 12G-SDI video to IP and IP video back to SDI for professional broadcast and live production networks.
What SDI connections does it have?
It has one 12G-SDI input and two independent 12G-SDI outputs.
Can it transmit 4K video over Ethernet?
Yes. Gigabit Ethernet supports up to 1080p60, while optional 10G optical Ethernet supports Ultra HD up to 2160p60 using TICO encoding and decoding.
Can multiple units be used together?
Yes. Multiple units can operate on the same Ethernet network, with Blackmagic Videohub software providing control and routing management.
Does it support local control?

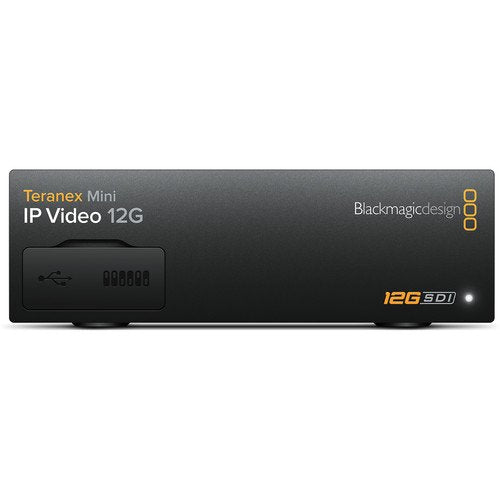

Yes. It includes built-in DIP-switch controls and supports an optional Teranex Mini Smart Panel with a 2.2-inch LCD, rotary knob, and six buttons.
Specs
xSpecifications
| Product Type | 12G-SDI to IP encoder and IP to SDI decoder |
|---|---|
| SDI Input | 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
| SDI Outputs | 2 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
| Ethernet | Gigabit Ethernet; optional 10G optical Ethernet via SFP |
| Gigabit Ethernet Support | Up to 1080p60 using TICO encoding and decoding |
| 10G Ethernet Support | Ultra HD up to 2160p60 using TICO encoding and decoding |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Precision | 10-bit 4:2:2 and 4:4:4 |
| Audio | Embedded SDI audio, 48 kHz, 24-bit |
| Video Standards | SD, HD, 2K, Ultra HD and 4K DCI |
| Control | Built-in DIP switches, Ethernet, USB and optional Teranex Mini Smart Panel |
| Software | Blackmagic IP Video Setup and Videohub Router Control Software |
| Firmware Updates | USB 2.0 or Ethernet |
| Power Supply | 100–240V AC |
| Power over Ethernet | PoE+ via compatible network equipment |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
