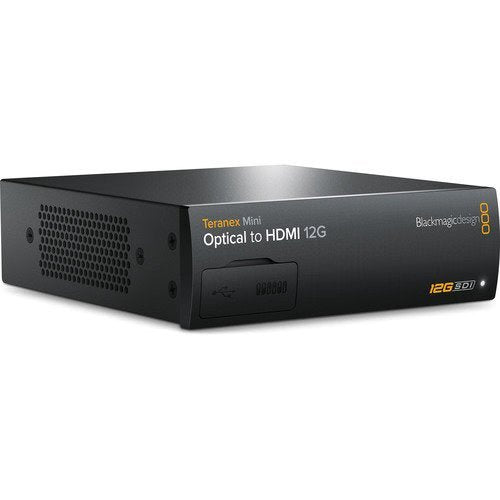

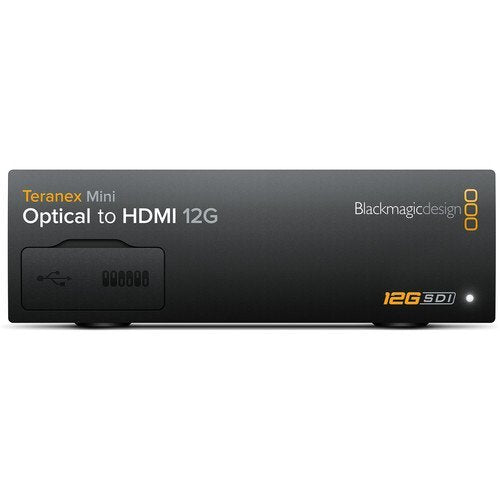

Blackmagic Design Teranex Mini Optical to HDMI 12G Converter
SKU: CONVNTRM/MA/OPTH
Key Features
- Convert a 12G-SDI Signal to HDMI
- Convert Optical Fiber to HDMI (Optional)
- Up to DCI 4K/60p Support on Input/Output
- XLR Outputs Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Built-In 90-240V Power Supply
- Rack-Mount, Duct or Desktop Installation
- Install up to 3 Units in Single 19" Rack
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 2,425.00 AED
- 2,425.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini Optical to HDMI 12G Converter is a professional broadcast converter designed to convert 12G-SDI and optional SMPTE optical fiber signals to HDMI. It supports SD, HD, 2K, Ultra HD, and 4K DCI formats, making it suitable for broadcast monitoring, live production, post-production, and professional video distribution.
The converter features one 12G-SDI input, an optional 3G, 6G, or 12G-SDI optical SFP input, and an optical loop-through output. Its HDMI 2.0 output supports resolutions up to 2160p60, while automatic format detection and SDI reclocking help provide reliable signal conversion.
For audio, the Teranex Mini provides balanced XLR outputs that can be configured for analog or AES/EBU digital audio. Ethernet provides remote configuration and can also support PoE+, while an optional Teranex Mini Smart Panel adds an LCD display and front-panel controls.
For professional broadcast converters and signal-processing equipment, explore the Systec Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini Optical to HDMI 12G do?
It converts 12G-SDI or compatible optical fiber video signals to HDMI for professional monitoring and video production workflows.
Does it support 4K video?
Yes. The HDMI output supports Ultra HD up to 2160p60 and 4K DCI formats up to 25p.
Does it support optical fiber input?
Yes. It supports optional 3G, 6G, or 12G-SDI single-mode optical SFP modules with an LC connector. The optical module is sold separately.
What audio outputs are available?
It provides two channels of balanced analog audio through XLR connections and four channels of balanced AES/EBU digital audio. The right XLR can also be configured for timecode output.
Can it be controlled remotely?
Yes. USB and Ethernet provide configuration and software updates, while Ethernet can also provide PoE+ power. An optional Smart Panel provides local LCD and button controls.
Specs
xSpecifications
| Product Type | 12G-SDI and optical fiber to HDMI converter |
|---|---|
| SDI Input | 1 x 12G-SDI, supporting SD, HD, 2K, and 4K |
| Optical Fiber Input | Optional 3G, 6G, or 12G-SDI single-mode 1310nm SFP with LC connector |
| Optical Fiber Loop Output | 1 x 12G-SDI optical loop output |
| HDMI Output | 1 x HDMI 2.0 Type A, supporting up to 2160p60 |
| Video Standards | SD, HD, 2K, Ultra HD, and 4K DCI |
| Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | YUV 4:2:2 in HD, 2K, and 4K |
| HDMI Color Space | Rec. 601 and Rec. 709 |
| LUT Support | 33-point LUT via Teranex Utility |
| Embedded Audio | 8 channels |
| Analog Audio Output | 2-channel balanced analog audio via XLR |
| Digital Audio Output | 4-channel 110Ω balanced AES/EBU via XLR |
| Timecode | Right XLR configurable for timecode output |
| Reclocking | Yes |
| Control and Updates | USB and Ethernet |
| Front Panel | Optional Teranex Mini Smart Panel with LCD, rotary knob, and six buttons |
| Power Supply | Built-in 100–240V AC power supply with IEC C14 inlet |
| Power over Ethernet | 48V DC PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
