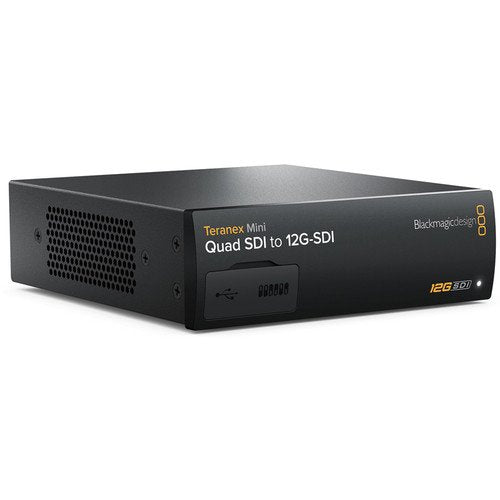

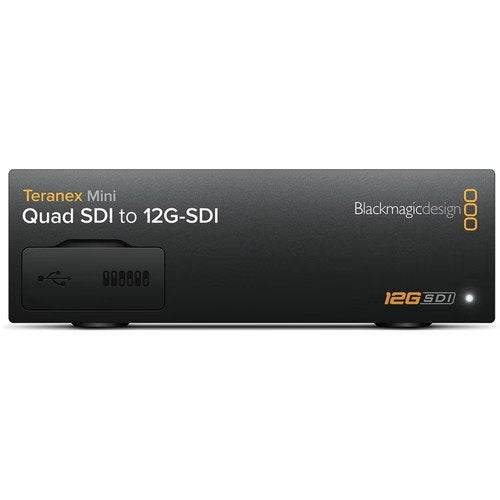

Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
SKU: CONVNTRM/DA/QDSDI
Key Features

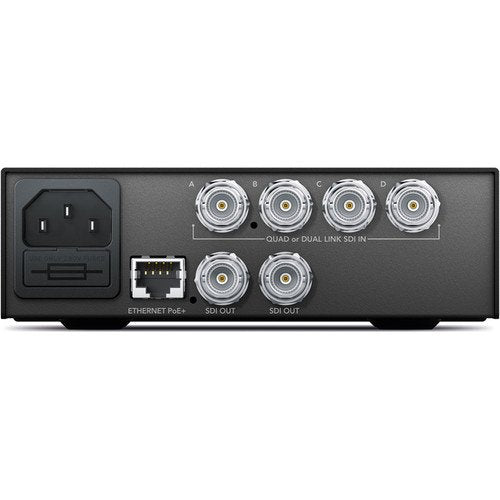

- Quad-Link 12G-SDI Input
- 2 Single-Link 12G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- Requires IEC C14 Power Cable
- 2,499.00 AED
- 2,499.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 6 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini Quad SDI to 12G SDI Converter is designed to connect Quad-Link SDI equipment with modern 12G-SDI devices. It combines four SDI inputs into 12G-SDI outputs, making it useful for professional broadcast, studio, live production, and post-production workflows.
The converter supports SD, HD, Ultra HD 4K, and DCI 4K signals with automatic input signal detection. It also provides 16 channels of embedded audio and SDI reclocking for dependable signal transmission. Control and configuration can be handled through USB, Ethernet, or the available DIP switches.
For more professional video signal conversion and distribution solutions, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini Quad SDI to 12G-SDI Converter do?
It converts Quad-Link SDI signals into 12G-SDI connections, allowing older Quad-Link Ultra HD equipment to connect with modern 12G-SDI devices.
What video formats does it support?
It supports SD, HD, 2K, Ultra HD 4K, and DCI 4K video formats.
How many SDI inputs does it have?
The converter has four SDI inputs for Quad-Link signal configurations.
How many 12G-SDI outputs are available?
It provides two 12G-SDI outputs.
Can the converter be controlled through software?
Yes. The unit supports configuration and software updates through USB and Ethernet, while basic settings can also be controlled using DIP switches.
Specs
xSpecifications
| Product Type | Quad SDI to 12G-SDI Converter |
|---|---|
| SDI Video Inputs | 4 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Outputs | 2 x 12G-SDI |
| Video Standards | SD, HD, 2K, Ultra HD 4K and DCI 4K |
| Multi-Rate Support | Automatic switching between SD, HD, 2K and 4K |
| Embedded Audio | 16 channels |
| SDI Reclocking | Yes |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Space | YUV and RGB |
| Software Control | Mac and Windows via USB and Ethernet |
| Basic Settings Control | Mini switches, USB and Ethernet |
| Power Supply | 100–240V AC |
| Power over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
