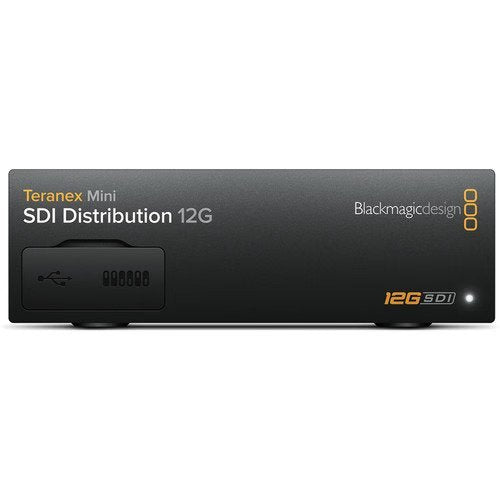

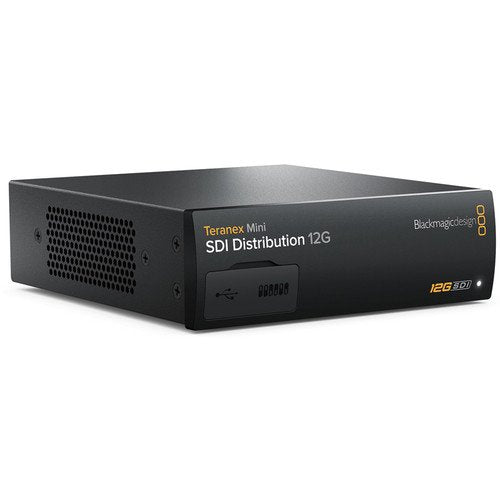

Blackmagic Design Teranex Mini SDI 12G Distribution

The Blackmagic Design Teranex Mini SDI Distribution 12G is a professional SDI distribution amplifier designed to send a single SDI video signal to up to eight SDI outputs. It supports multi-rate 12G-SDI connections and automatically switches between SD, HD, 2K, and Ultra HD formats up to 2160p60.

Full SDI reclocking helps maintain signal integrity when distributing video to multiple devices such as monitors, switchers, encoders, and other broadcast equipment. The eight SDI outputs automatically match the incoming SDI format, making the unit suitable for mixed-format production environments.

The converter supports 16 channels of embedded audio and provides USB and Ethernet connections for configuration and software updates. It can be powered from its built-in AC power supply or through 48V DC PoE+, while an optional Teranex Mini Smart Panel provides an LCD, rotary control, and six buttons for local operation.

For professional broadcast signal distribution and conversion equipment, explore the Systec Signal Processing, Converters & Distribution collection.

FAQs

What does the Teranex Mini SDI Distribution 12G do?

It distributes one SDI video input to up to eight independent SDI outputs for monitors, switchers, encoders, and other equipment.

How many SDI outputs does it have?

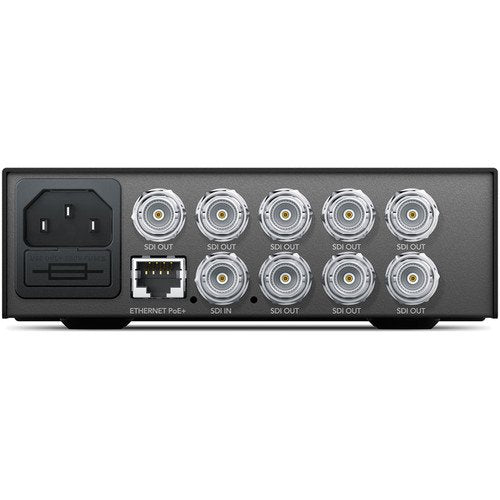

It provides eight 12G-SDI outputs, which automatically match the incoming SDI format.

Does it support 4K video?

Yes. It supports SD, HD, 2K, and Ultra HD formats up to 2160p60.

Does it support SDI reclocking?

Yes. Full SDI reclocking helps maintain reliable signal quality across the distributed outputs.

Can it be controlled remotely?

Yes. Configuration and software updates can be performed through USB or Ethernet. An optional Smart Panel is also available for local control.
