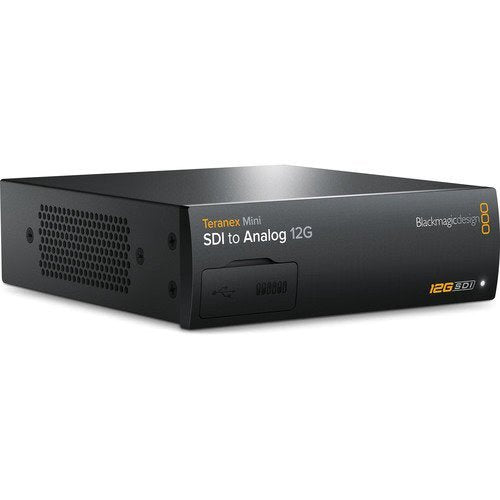

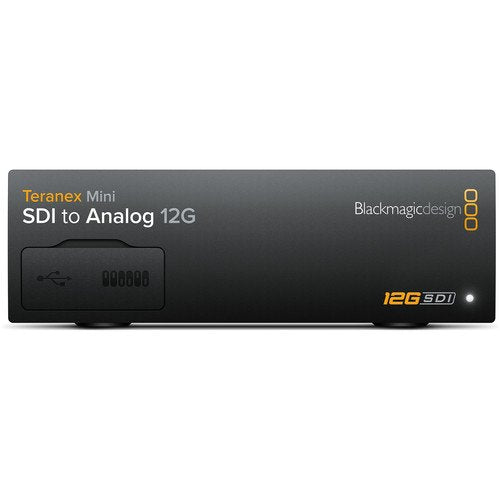

Blackmagic Design Teranex Mini SDI to Analog 12G Converter
SKU: CONVNTRM/BA/SDIAN
Key Features
- Converts 12G-SDI video to analog video
- Supports SD, HD, 2K and 4K video formats
- Built-in HD down-converter for 4K to HD or SD output
- Composite, Y/C and Component analog video outputs
- 1 x 12G-SDI input with automatic SD/HD/2K/4K switching
- 1 x 12G-SDI loop-through output
- Balanced analog and AES/EBU digital audio outputs via XLR
- Supports up to 16 channels of embedded SDI audio
- Full SDI reclocking and low-jitter performance
- USB and Ethernet connectivity for configuration and updates
- Ethernet remote control with PoE+ support
- Optional Smart Panel with LCD, rotary knob and six control buttons
- Built-in 100–240V AC international power supply
- Intelligent thermal design with crossflow cooling
- Suitable for desktop, cable duct and rack-mounted installations
- 2,484.00 AED
- 2,484.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini SDI to Analog 12G Converter converts SDI video signals to analog video for professional broadcast, post-production, and live production workflows. It supports SD, HD, 2K, and 4K SDI signals with automatic multi-rate switching.
With its built-in down-converter, the Teranex Mini can convert 4K SDI sources to analog HD or SD, making it useful for connecting modern SDI equipment to legacy monitors and video devices. It provides Composite, Y/C, and Component analog video outputs.
The converter also supports balanced analog and AES/EBU digital audio outputs through XLR connections, along with USB and Ethernet control. For more professional signal processing and broadcast conversion solutions, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini SDI to Analog 12G do?
It converts SDI video signals, including 4K sources, to analog video outputs.
What SDI formats does it support?
It supports SD, HD, 2K, and 4K video formats with multi-rate SDI support.
Does it support audio conversion?
Yes. It provides balanced analog and AES/EBU digital audio outputs through XLR connections.
Can it convert 4K video to HD or SD?
Yes. The built-in down-converter allows 4K SDI sources to be converted for analog HD or SD equipment.
Can it be controlled remotely?
Yes. The converter supports configuration and control through USB and Ethernet.
Specs
xSpecifications
| Product Type | SDI to Analog 12G Converter |
|---|---|

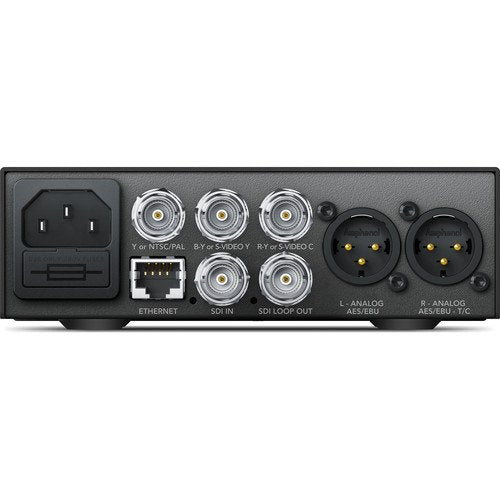

| SDI Video Input | 1 x 12G-SDI, SD/HD/2K/4K auto switching |
| SDI Video Output | 1 x 12G-SDI loop output |
| Analog Video Outputs | Composite, Y/C or Component |
| Analog Audio Outputs | 2 channels professional balanced analog audio via XLR |
| Digital Audio Outputs | 4 channels professional 110Ω balanced AES/EBU via XLR |
| Embedded Audio Support | 16 channels |
| Video Standards | SD, HD, 2K and Ultra HD |
| SDI Video Rates | SDI, 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Space | YUV |
| Analog Color Space | REC 601, REC 709 |
| Analog Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
| Format Conversion | HD down conversion |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB and Ethernet |
| Settings Control | Mini switches, USB and Ethernet |
| Optional Front Panel | Smart Panel with LCD, rotary knob and six settings buttons |
| Power Supply | 100–240V AC, built-in international power supply |
| Power over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
