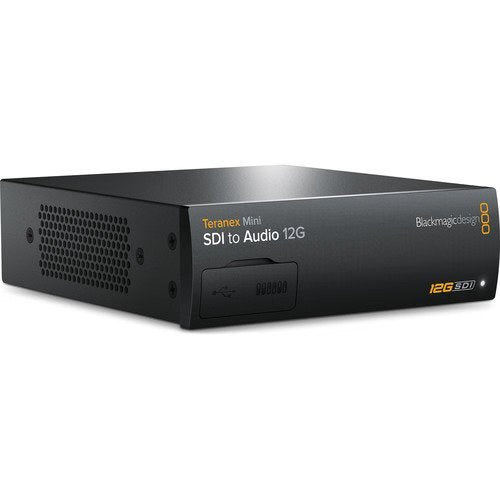

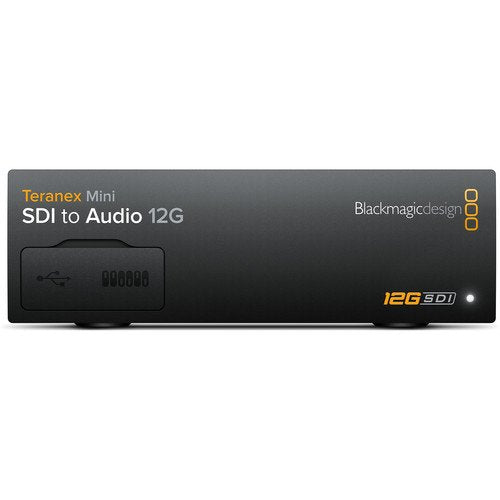

Blackmagic Design Teranex Mini SDI to Audio 12G Converter
SKU: CONVNTRM/CA/SDIAU
Key Features
- Advanced High-Data Rate De-Embedder
- De-Embed Audio from up to 4K SDI Signals
- Output via XLR, AES/EBU, RCA, or S/PDIF
- 12G-SDI Input and Output
- Supports up to Full 4K DCI 4096x2160p
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- 2,462.00 AED
- 2,462.00 AED
- Unit price
- per
Dimensions: 22.4 x 19.38 x 5.6 cm
Weight: 0.83 kg
Description
xThe Blackmagic Design Teranex Mini SDI to Audio 12G Converter is a professional solution for extracting embedded audio from SD, HD, 2K and Ultra HD SDI signals. It supports 12G-SDI input and provides a 12G-SDI loop output for convenient signal routing.

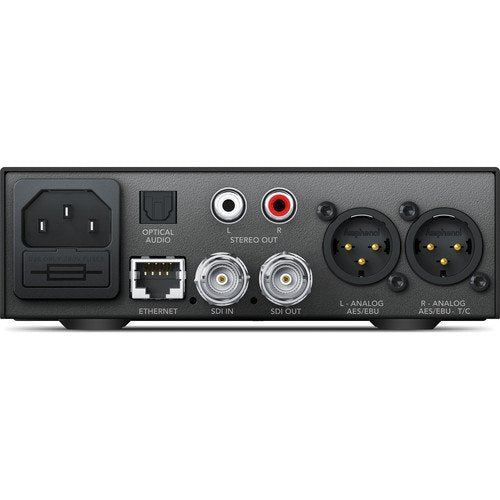

The converter can output two channels of balanced analog audio through XLR, two channels of unbalanced analog audio through RCA, up to four channels of AES/EBU digital audio, or optical S/PDIF audio through TOSLINK. This makes it suitable for audio mixers, broadcast decks, audio monitors and other professional audio equipment.
It supports automatic switching between SD, HD, 2K and 4K formats, along with SDI reclocking and 16 channels of embedded audio. Ethernet provides remote control and PoE support, while USB and Ethernet can be used for software updates. For more professional signal conversion and distribution equipment, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Teranex Mini SDI to Audio 12G do?
It de-embeds audio from SD, HD, 2K and Ultra HD SDI video signals and converts the embedded audio into professional analog, digital or optical audio outputs.
What audio outputs are available?
It provides balanced XLR, RCA, AES/EBU and optical S/PDIF audio outputs.
Does it support 4K video?
Yes. It supports Ultra HD and DCI 4K formats, including 2160p and 4K DCI standards.
Does it have an SDI loop output?
Yes. It includes one 12G-SDI loop output for passing the original SDI signal to another device.
Can it be controlled remotely?
Yes. The converter supports control and configuration through Ethernet and USB, with PoE available through Ethernet.
Specs
xSpecifications
| Product Type | SDI to Audio 12G Converter |
|---|---|
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Output | 1 x 12G-SDI loop output |
| Analog Audio Outputs | 2 channels balanced analog via XLR or 2 channels unbalanced analog via RCA |
| Digital Audio Outputs | 4 channels professional 110Ω balanced AES/EBU via XLR |
| Optical Audio Output | S/PDIF via TOSLINK |
| Embedded Audio Support | 16 channels |
| Multi-Rate Support | Automatic switching between SD, HD, 2K and 4K |
| SDI Video Rates | SD, 1.5G-SDI, 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Space | REC 601, REC 709 |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB and Ethernet |
| Settings Control | Mini switches, USB and Ethernet |
| Optional Front Panel | Smart Panel with LCD, rotary knob and six settings buttons |
| Power Supply | Built-in international AC power supply, 100–240V AC |
| Power over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
