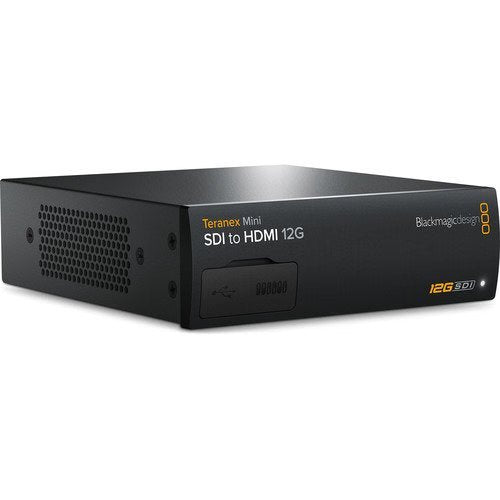

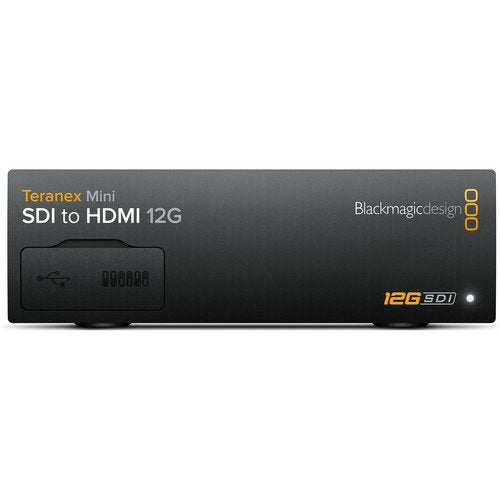

Blackmagic Design Teranex Mini SDI to HDMI 12G Converter
SKU: CONVNTRM/AA/SDIH
Key Features
- Advanced High-Data Rate Signal Converter
- Supports Up to 4K DCI 4096x2160p Signals
- 12G-SDI Input and Loopout
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
- 2,462.00 AED
- 2,462.00 AED
- Unit price
- per
Dimensions: 23 x 20 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Teranex Mini SDI to HDMI 12G is a professional broadcast converter designed to convert 12G-SDI signals to HDMI. It supports SD, HD, 2K, Ultra HD and 4K DCI formats, making it suitable for broadcast studios, production setups and professional monitoring.
The converter features an HDMI 2.0 output supporting up to 2160p60, along with a 12G-SDI loop output for connecting additional SDI equipment. It also includes a built-in down converter, Instant Lock on HDMI output and a 33-point LUT for professional monitoring workflows.
Audio can be de-embedded from the SDI signal to balanced analog or AES/EBU outputs, while USB and Ethernet provide configuration and software updates. For more professional broadcast and video conversion solutions, explore Systec International's Blackmagic Design collection.
FAQs
What does the Teranex Mini SDI to HDMI 12G do?
It converts 12G-SDI video signals to HDMI for use with HDMI displays, televisions and projectors.
Does it support 4K video?
Yes. It supports Ultra HD up to 2160p60 and 4K DCI formats up to 25p.
Does it have an SDI loop output?
Yes. It provides one 12G-SDI loop output alongside the HDMI output.
Can it de-embed audio?
Yes. It can output de-embedded audio through balanced analog XLR or AES/EBU digital XLR connections.
Can the converter be updated through software?
Yes. Software updates and configuration can be performed through USB or Ethernet.
Specs
xSpecifications

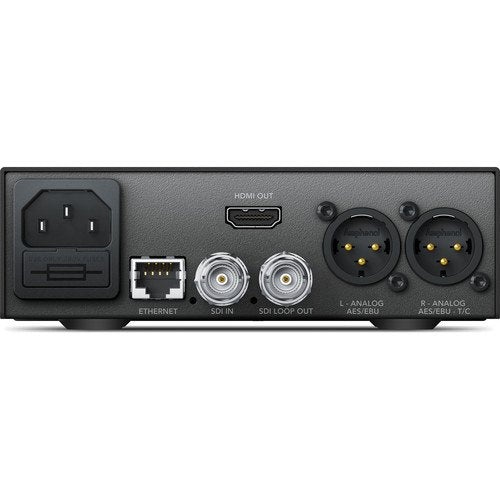

| Model | Teranex Mini SDI to HDMI 12G |
|---|---|
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Output | 1 x 12G-SDI loop output |
| HDMI Output | 1 x HDMI 2.0 Type A, up to 2160p60 |
| Multi-Rate Support | 270MB, 1.5G, 3G, 6G and 12G |
| Analog Audio Output | 2 channels professional balanced analog audio via XLR |
| Digital Audio Output | 4 channels professional 110Ω balanced AES/EBU via XLR |
| Embedded Audio | 8 channels |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| HDMI Color Space | REC 601 and REC 709 |
| HDMI Color Precision | YUV 4:2:2 in HD, 2K and 4K |
| LUT | 33-point LUT |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB or Ethernet |
| Power Supply | 100–240V AC, built-in international power supply |
| Power Over Ethernet | 48V DC via PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
