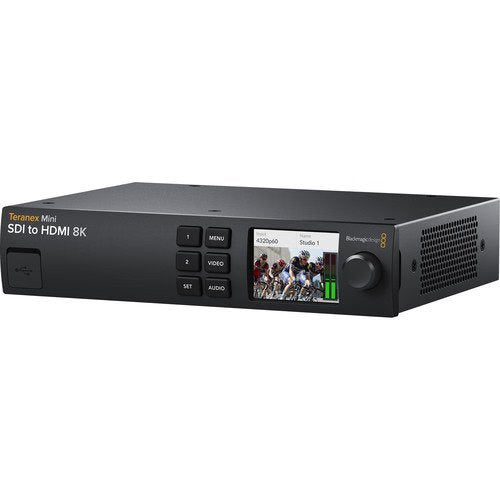

Blackmagic Design Teranex Mini SDI to HDMI 8K Converter
SKU: CONVN8TRM/AA/SDIH
Key Features
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- On-Screen Scopes
- 12G-SDI I/O and HDMI Outputs
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface
- 5,958.00 AED
- 5,958.00 AED
- Unit price
- per
Dimensions: 28 x 22 x 9 cm
Weight: 2 kg
Description
xThe Blackmagic Design Teranex Mini SDI to HDMI 8K HDR is an advanced monitoring converter designed to convert SDI sources to HDMI in HD, Ultra HD and 8K formats up to 4320p60. It provides four 12G-SDI inputs and four HDMI 2.0 outputs for professional broadcast and production workflows.
It supports 8K through dual-link and quad-link 12G-SDI, with automatic switching between 2SI and Square Division formats. The converter also includes HDR support, a built-in down converter and 33-point 10-bit RGB LUTs for accurate monitoring and professional color workflows.
For advanced monitoring, it features built-in waveform, RGB/YUV parade, vector and histogram scopes, plus monitor calibration support. It also provides four 12G-SDI loop outputs and HDMI audio support. For more professional Blackmagic Design broadcast and video solutions, explore Systec International's Blackmagic Design collection.
FAQs
What does the Teranex Mini SDI to HDMI 8K HDR do?
It converts professional SDI video sources to HDMI for monitoring in HD, Ultra HD and 8K formats.
Does it support 8K at 60fps?
Yes. It supports 8K up to 4320p60 using quad-link 12G-SDI.
How many SDI inputs does it have?
It has four 12G-SDI inputs with automatic HD, 2K, 4K and 8K switching.
Does it support HDR?
Yes. The converter supports HDR formats and can output SDR, HLG or PQ.
Does it include built-in scopes?
Yes. It includes waveform, RGB/YUV parade, vector and histogram scopes with picture overlay options.
Specs
xSpecifications
| Model | Teranex Mini SDI to HDMI 8K HDR |
|---|---|
| SDI Video Inputs | 4 x 12G-SDI, HD/2K/4K/8K auto switching |
| SDI Video Outputs | 4 x 12G-SDI loop outputs |
| HDMI Video Outputs | 4 x HDMI 2.0 Type A |
| 8K SDI Input | Dual Link and Quad Link 12G-SDI |
| 8K HDMI Output | 4320p23.98 to 4320p60 via Quad Link |
| HDMI Output Resolution | HD, Ultra HD and 8K up to 4320p60 |
| SDI Video Rates | 1.5G, 3G, 6G and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| HDMI Color Space | REC 709 and REC 2020 |
| HDMI Color Precision | YUV 4:2:2 in HD, 2K, 4K and 8K |
| HDR | SDR, HLG and PQ |
| LUT | 33-point 10-bit RGB LUT |
| Scopes | Waveform, RGB/YUV Parade, Vector and Histogram |
| Analog Audio Output | 2 channels via RCA connectors |
| Embedded Audio | 16 channels on SDI loop outputs, 8 channels on HDMI outputs |
| SDI Audio Sampling | 48 kHz, 24-bit |
| Updates and Configuration | USB-C or Ethernet |
| Reclocking | Yes |
| Settings Control | 6 buttons, control knob and 2.2-inch color LCD |
| Power Supply | 100–240V AC, built-in international power supply |
| Power Consumption | 25W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
