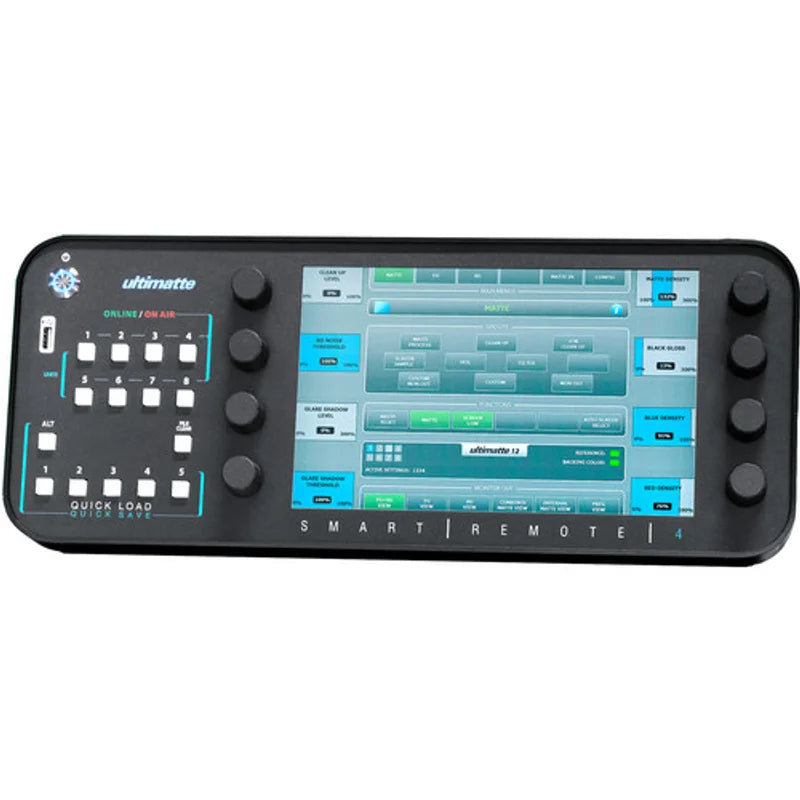

Blackmagic Design Ultimatte Smart Remote 4
SKU: ULTMSMTREM4
Key Features
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
- 9,896.00 AED
- 9,896.00 AED
- Unit price
- per
Description
xThe Blackmagic Design Ultimatte Smart Remote 4 is a professional control panel designed to manage up to eight Ultimatte units over Ethernet. It provides a large capacitive touchscreen for navigating menus and adjusting settings, along with physical controls for fast and precise operation.
The Smart Remote 4 includes eight rotary encoder knobs, unit selection buttons, Online and On Air indicators, and five quick-save and quick-load buttons. Its adjustable stand and user-controlled display and LED brightness make it well suited for broadcast studios, live production, and virtual production workflows.
For more professional switchers and controllers, explore the Systec Switchers & Controllers collection.
FAQs
How many Ultimatte units can the Smart Remote 4 control?
It can control up to eight Ultimatte units simultaneously through Ethernet.
Does it have a touchscreen?
Yes. It features a 10.1-inch capacitive touchscreen with a 1280 × 800 resolution for navigating menus and adjusting settings.
Does it include physical controls?
Yes. The panel includes eight rotary knobs, eight unit selection buttons, Online and On Air indicators, and quick-save/load buttons.
How does it connect to Ultimatte units?
The Smart Remote 4 uses Ethernet connections to control Ultimatte 12 units over a network.
Is the Smart Remote 4 suitable for professional broadcast use?
Yes. It is designed for fast control of Ultimatte systems and is suitable for broadcast, live production, and virtual production environments
Specs
x| Specification | Details |
|---|---|
| Control Capacity | Up to 8 Ultimatte 12 units |
| Touchscreen | 10.1-inch 1280 × 800 capacitive touchscreen |
| Rotary Knobs | 8 |
| Unit ID Buttons | 8 illuminated buttons |
| Unit ID Indicators | Green Online and red On Air indicators |
| Quick Load/Save | 5 buttons |
| File Clear | 1 button for Auto Key |
| Customizable Menus | 4 |
| LED Control | User-adjustable brightness |
| Fan Speed Control | User-adjustable |
| Ethernet | 2 × 10/100 Mbps Ethernet ports |
| USB | 2 × USB 2.0 and 1 × USB 3.0 |
| Video Outputs | SVGA and DisplayPort |
| RS-422 | 2 × RS-422 ports for Ultimatte 11 control |
| Power Supply | 100–240V AC |
| Power Consumption | 24W |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Mounting | Adjustable desk mounting option |
| Warranty | 1 Year Limited Manufacturer's Warranty |
