Blackmagic Design UltraStudio 4K Mini
SKU: BDLKULSDMINI4K
Key Features
- 12G-SDI & HDMI 2.0 Input/Output
- 1 x 40 Gb/s Thunderbolt 3 Interface
- 3" LCD Status/Preview Screen
- DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
- DCI 4K30 4:4:4 Single-Link 12G-SDI I/O
- DCI 4K60 4:4:4 via HDMI
- 8-, 10- & 12-Bit Processing
- 2K/HD/SD via SDI or HDMI
- RS-422 Deck Control
- Mac OS X, Windows & Linux Compatible
- 4,339.00 AED
- 4,339.00 AED
- Unit price
- per
Dimensions: 21 x 17.78 x 4.57 cm
Weight: 1.2 kg
Description
xThe Blackmagic Design UltraStudio 4K Mini is a professional capture and playback solution designed for high-quality video production, post-production, broadcasting, and live workflows. It combines 12G-SDI and HDMI 2.0 connectivity with Thunderbolt 3, allowing you to capture and play back video up to DCI 4K at 60 fps.
The UltraStudio 4K Mini supports 8-bit, 10-bit, and 12-bit video processing, with support for 4:2:2 and 4:4:4 workflows. It also provides HDR support with HDR metadata, HLG, and PQ transfer characteristics for compatible production workflows.

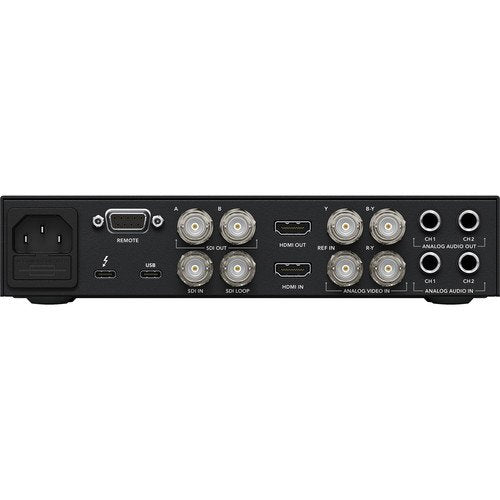

Its professional connections include SDI, HDMI, analog video and audio, microphone input with switchable 48V phantom power, reference input, RS-422 deck control, and a built-in SD card reader. The Thunderbolt 3 interface provides connectivity with Mac, Windows, and Linux computers.
The built-in 5-inch color display and front-panel controls make it easy to monitor and manage connected equipment. The unit also includes hardware-based real-time processing features such as color-space conversion and video up/down/cross conversion.
For related production equipment, you can explore our Blackmagic Design products, video production equipment, and capture cards and devices.
Frequently Asked Questions
What is the Blackmagic Design UltraStudio 4K Mini?
The Blackmagic Design UltraStudio 4K Mini is a professional capture and playback device designed for video production, post-production, broadcasting, and live workflows.
What video resolution does the UltraStudio 4K Mini support?
It supports video formats up to DCI 4K at 60 fps, along with SD, HD, 2K, and Ultra HD formats.
Does the UltraStudio 4K Mini support 12G-SDI?
Yes, it supports 12G-SDI connectivity for high-resolution video capture and playback workflows.
Does the UltraStudio 4K Mini support HDMI?
Yes, it features HDMI 2.0b input and output for connecting compatible cameras, monitors, and other video equipment.
Does it use Thunderbolt 3?
Yes, the UltraStudio 4K Mini uses a Thunderbolt 3 interface for high-speed connectivity with compatible Mac, Windows, and Linux computers.
Specs
x| Component | Specification |
|---|---|
| Product Type | Professional Capture and Playback Device |
| SDI Video Input | 1 |
| SDI Video Outputs | 2 x Program Out, 1 x Loop Out |
| SDI Rates | 270Mb/s, 1.5G, 3G, 6G, 12G |
| HDMI Video Input | 1 x HDMI 2.0b |
| HDMI Video Output | 1 x HDMI 2.0b |
| Analog Video Input | Component YUV or Composite NTSC/PAL |
| Analog Audio Inputs | 2 Channels, Professional Balanced Analog Audio, 1/4" Jack |
| Analog Audio Outputs | 2 Channels, Professional Balanced Analog Audio, 1/4" Jack |
| SDI Audio | 16 Channels Embedded Audio |
| HDMI Audio | 8 Channels Embedded Audio |
| Microphone Input | 1 x XLR with Switchable 48V Phantom Power |
| Sync Input | Tri-Sync or Black Burst |
| Device Control | Sony-Compatible RS-422 Deck Control |
| USB | 1 x USB-C 3.1 Gen 1, Up to 5 Gb/s |
| SD Card Reader | UHS-I and UHS-II Compatible |
| Computer Interface | Thunderbolt 3, Mac, Windows and Linux |
| Thunderbolt Charging | 45W Host Charging Capability |
| Video Sampling | 4:2:2, 4:4:4 |
| Color Precision | 8, 10 and 12-bit |
| Color Space | Rec. 601, Rec. 709 and Rec. 2020 |
| HDR Support | HDR Static Metadata, HLG and PQ |
| Supported Video Formats | SD, HD, 2K, Ultra HD and DCI 4K |
| Maximum Video Resolution | DCI 4K up to 60 fps |
| Built-In Display | 5" Color Display |
| Device Control | 2 x RS-422 Deck Control |
| Power Supply | Internal 100-240V AC |
| Operating Temperature | 5° to 40°C |
| Supported Operating Systems | Mac, Windows and Linux |
