Blackmagic Design UltraStudio Express Monitor 3G Playback Device
SKU: BDLKULSDMBEXMON3G
Key Features
- Professional 10-bit SDI and HDMI video playback
- 1 x 10-bit SD/HD switchable SDI output
- 1 x HDMI 2.0 Type-A output
- Supports 270Mb, 1.5G and 3G SDI rates
- Supports SD and HD video up to 1080p60
- 16 channels of embedded SDI audio
- 8 channels of embedded HDMI audio
- USB Type-C with USB 40Gbps support
- Hardware-based real-time color space conversion
- Compatible with DaVinci Resolve, Final Cut Pro, Premiere Pro and Avid Media Composer
- USB-C powered design
- 644.00 AED
- 644.00 AED
- Unit price
- per
Description

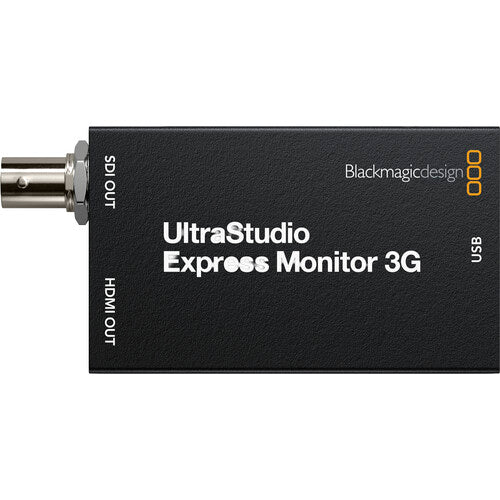

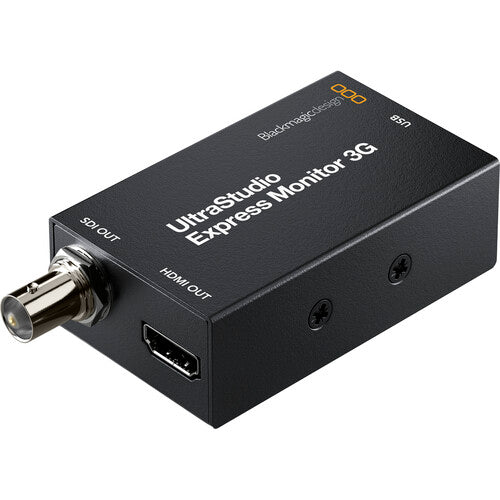

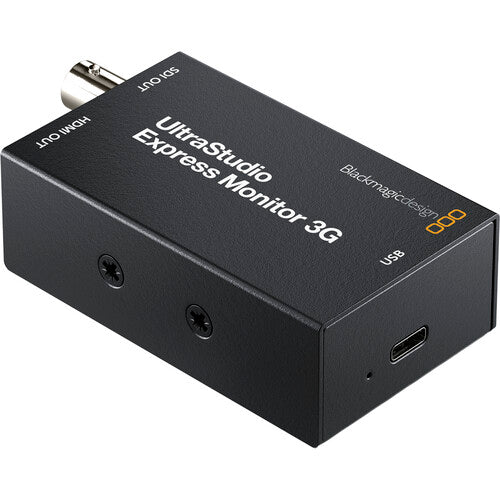

xThe Blackmagic Design UltraStudio Express Monitor 3G is a compact video playback device designed to send high-quality video from a computer to professional SDI and HDMI displays. It supports broadcast-quality 10-bit video and is well suited for editing, monitoring, broadcast graphics, and post-production workflows.
The device provides one 10-bit SD/HD switchable SDI output and one HDMI 2.0 output, with support for SDI rates from 270Mb to 3G. It can output video up to 1080p60 and supports embedded multi-channel audio through both SDI and HDMI connections.
The UltraStudio Express Monitor 3G connects to compatible computers using USB Type-C with USB 40Gbps support and is powered directly through the USB-C connection. It works with popular software including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer. For more professional video capture and monitoring solutions, explore the Systec Capture Cards collection.
FAQs
What is the UltraStudio Express Monitor 3G used for?
It is used for professional video playback and monitoring from a computer through SDI and HDMI outputs.
What video formats does it support?
It supports SD and HD video standards up to 1080p60, with SDI rates of 270Mb, 1.5G, and 3G.
Does it support HDMI?
Yes. It includes one HDMI 2.0 Type-A output for video and embedded audio.
How does it connect to a computer?
It uses USB Type-C with USB 40Gbps support and is powered through the USB-C connection.
Which software is compatible with it?
It supports popular professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer.
Specs
xSpecifications
| Product Type | Professional video playback and monitoring device |
|---|---|
| SDI Output | 1 x 10-bit SD/HD switchable |
| SDI Rates | 270Mb, 1.5G and 3G |
| SDI Audio | 16 channels embedded in SD/HD |
| HDMI Output | 1 x HDMI 2.0 Type-A |
| HDMI Audio | 8 channels embedded in SD/HD |
| Computer Interface | USB Type-C supporting USB 40Gbps |
| Video Resolution | SD and HD up to 1080p60 |
| Hardware Frame Buffer | v210, 2vuy, ARGB, BGRA, r210, R12B and R12L |
| Processing | Hardware-based real-time color space conversion |
| Power | Powered through USB Type-C |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer’s Warranty |
