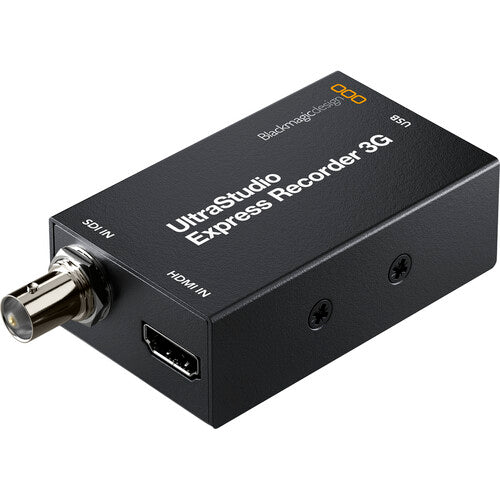

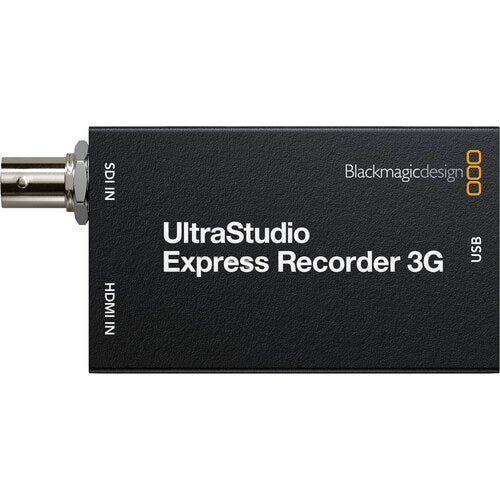

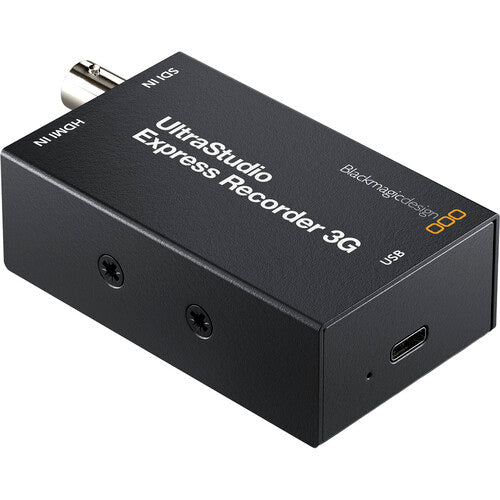

Blackmagic Design UltraStudio Express Recorder 3G
SKU: BDLKULSDMAEXREC3G
Key Features
- Compact 3G-SDI and HDMI video capture solution
- 10-bit broadcast-quality video connections
- 1 x 3G-SDI SD/HD video input
- 1 x HDMI 2.0 Type A input
- Supports video formats up to 1080p60
- 16 channels of embedded SDI audio
- 8 channels of embedded HDMI audio
- USB Type-C computer interface with USB 40Gbps support
- Hardware-based real-time color space conversion
- Supports YUV and RGB video
- Compatible with DaVinci Resolve and popular video software
- Supports Mac, Windows and Linux systems
- Powered through USB Type-C
- 644.00 AED
- 644.00 AED
- Unit price
- per
Description
xThe Blackmagic Design UltraStudio Express Recorder 3G is a compact video capture solution for bringing broadcast-quality SD and HD video into a computer. It features 10-bit 3G-SDI and HDMI 2.0 inputs, making it suitable for video production, live streaming, editing, and professional content workflows.
The recorder supports SD and HD video standards up to 1080p60, with 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio. Hardware-based real-time color space conversion and support for YUV and RGB video provide flexible integration with professional production software.
Its USB-C computer interface supports USB 40Gbps and works with compatible Mac, Windows, and Linux computers. UltraStudio Express Recorder 3G is compatible with popular applications including DaVinci Resolve and other video editing, streaming, and AI image-processing software.
For more professional video capture and production solutions, explore Systec International’s Capture Cards collection.
FAQs
What video inputs does the UltraStudio Express Recorder 3G have?
It features one 10-bit SD/HD 3G-SDI input and one HDMI 2.0 Type A input.
What is the maximum supported resolution?
It supports SD and HD video formats up to 1080p60.
How does it connect to a computer?
The recorder uses USB Type-C with support for USB 40Gbps.
How many audio channels does it support?
It supports 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio in SD/HD formats.
Which operating systems are supported?
It supports macOS, Windows 10/11, and Linux on compatible systems.
Specs
xSpecifications
| Product Type | Video Capture Device |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD switchable |
| SDI Rates | 270Mb, 1.5G, 3G |
| SDI Audio | 16 channels embedded in SD/HD |
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| HDMI Audio | 8 channels embedded in SD/HD |
| Computer Interface | 1 x USB Type-C supporting USB 40Gbps |
| Maximum Video Format | Up to 1080p60 |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 |
| HDMI Color Space | Rec. 601, Rec. 709 and Rec. 2020 |
| Color Space Conversion | Hardware-based real-time |
| Operating Systems | macOS, Windows 10/11 and Linux |
| Power | Powered via USB Type-C |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
