Blackmagic Design UltraStudio HD Mini
SKU: BDLKULSDMINHD
Key Features
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
- 2,337.00 AED
- 2,337.00 AED
- Unit price
- per
Dimensions: 16.99 x 14 x 4.45 cm
Weight: 0.6 kg
Description

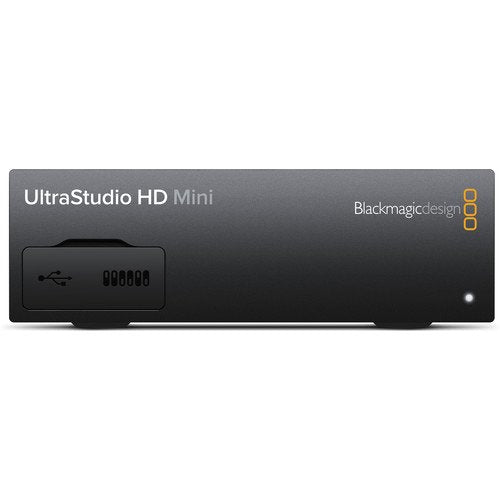

xThe Blackmagic Design UltraStudio HD Mini is a professional video capture and playback solution designed for broadcast, post-production, editing, and live production workflows. It supports SD, HD, and 3G-SDI video along with analog video connections, making it suitable for both modern and legacy professional equipment.
The UltraStudio HD Mini connects to compatible computers through Thunderbolt 3 and supports high-quality video capture and playback up to 1080p60. It also provides up to 16 channels of embedded SDI audio, making it suitable for professional video production and post-production applications.

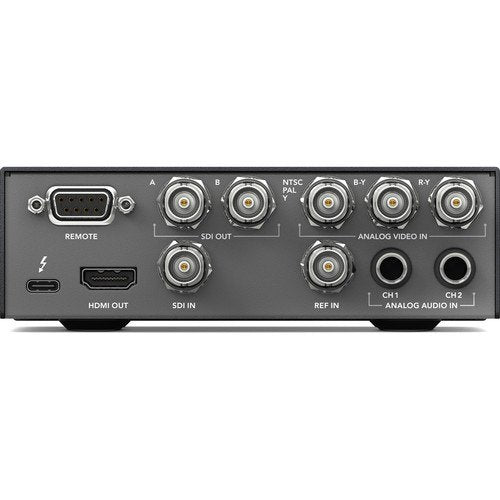

The device features dual 3G-SDI outputs with fill and key support as well as an HDMI output for monitoring. It also includes an RS-422 connection for professional deck control and a reference input supporting Tri-Sync and Black Burst for accurate video synchronization.
The UltraStudio HD Mini includes real-time hardware color space conversion and HD-to-SD down-conversion. Its analog video and audio connections provide additional flexibility when working with different video sources and professional broadcast equipment.
The system works with popular professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer. It is a versatile choice for editors, broadcasters, filmmakers, and production teams that need professional video I/O with flexible SDI, HDMI, and analog connectivity.
For more professional video production equipment, explore our Blackmagic Design collection and browse our range of Video Converters & Capture Devices for additional professional video solutions.
Frequently Asked Questions
What is the Blackmagic Design UltraStudio HD Mini used for?
The Blackmagic Design UltraStudio HD Mini is a professional video capture and playback device designed for broadcast, post-production, editing, monitoring, and other professional video workflows.
What video formats does the UltraStudio HD Mini support?
The UltraStudio HD Mini supports SD, HD, and 3G-SDI video formats, including resolutions up to 1080p60.
How does the UltraStudio HD Mini connect to a computer?
The device connects to a compatible computer using Thunderbolt 3, providing a high-speed connection for professional video capture and playback.
Does the UltraStudio HD Mini support HDMI?
Yes. The UltraStudio HD Mini features an HDMI 1.4b output for connecting compatible monitors and displays.
Does the UltraStudio HD Mini support analog video?
Yes. It includes analog video inputs supporting Y, B-Y, R-Y, NTSC, and PAL signals for compatibility with a range of professional video equipment.
Specs
x| Product Name | Blackmagic Design UltraStudio HD Mini |
|---|---|
| SDI Video Input | 1 x 3Gb/s SD/HD switchable |
| SDI Video Outputs | 2 x 3Gb/s SD/HD switchable, supports fill and key |
| SDI Rates | 270Mb, 1.5G, 3G |
| HDMI Video Output | 1 x HDMI 1.4b Type A |
| Analog Video Input | Y, B-Y, R-Y / NTSC/PAL |
| Analog Audio Inputs | 2 x 1/4-inch jack connectors for balanced and unbalanced analog audio |
| SDI Audio | 16 channels embedded in SD and HD |
| HDMI Audio Output | 2 channels embedded in SD and HD |
| Reference Input | Tri-Sync or Black Burst |
| Deck Control | 1 x RS-422 |
| Computer Interface | Thunderbolt 3 |
| Video Standards | SD, HD and 2K DCI |
| Color Sampling | 4:2:2 / 4:4:4 |
| Color Depth | 8-bit, 10-bit and 12-bit RGB; 8-bit and 10-bit YUV |
| HDMI Support | 8-bit RGB 4:4:4 up to 1080p30; 8/10-bit YUV 4:2:2 |
| SDI Compliance | SMPTE 259M, 292M, 296M, 372M and 425M A/B |
| Audio Sampling | 48 kHz, 24-bit |
| Power | Powered through Thunderbolt 3 |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Operating System | Mac, Windows and Linux |
| Supported Software | DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro and Avid Media Composer |
