Blackmagic Design UltraStudio Monitor 3G
SKU: BDLKULSDMBREC3G
Key Features
- Ultra-Portable Playback Device
- Outputs Footage from Computer to Monitor
- Thunderbolt, SDI, HDMI / Embedded Audio
- Supports Resolutions up to 1080p60
- 534.00 AED
- 534.00 AED
- Unit price
- per
Dimensions: 13.2 x 12.95 x 4.06 cm
Weight: 0.27 kg
Description

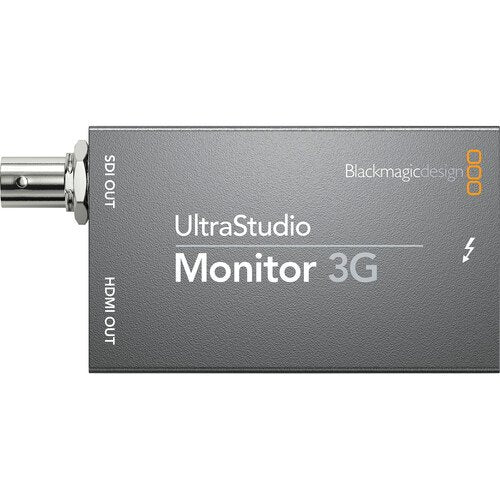

xThe Blackmagic Design UltraStudio Monitor 3G is a compact professional video playback and monitoring interface for connecting a Thunderbolt 3 computer to SDI and HDMI displays. It supports broadcast-quality 10-bit video and works with popular editing and graphics applications.
The unit provides 3G-SDI and HDMI 2.0 outputs, supporting SD and HD video formats up to 1080p60. SDI carries up to 16 channels of embedded audio, while HDMI supports up to 8 channels of embedded audio, making it suitable for professional monitoring workflows.
UltraStudio Monitor 3G connects directly through Thunderbolt 3 and supports Mac, Windows, and Linux systems. It also provides hardware-based real-time color space conversion and compatibility with software such as DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer.
For professional capture, playback, and signal conversion equipment, explore Systec International’s Signal Processing, Converters & Distribution collection.
FAQs
What is the UltraStudio Monitor 3G used for?
It is designed for professional video playback and monitoring, connecting a computer to SDI and HDMI displays.
Does it support 1080p60?
Yes. It supports SD and HD video standards, including 1080p up to 60 frames per second.
What video outputs does it have?
It provides one 10-bit SD/HD switchable 3G-SDI output and one HDMI 2.0 output.
How does it connect to a computer?
It uses a Thunderbolt 3 connection over USB-C and is compatible with Mac, Windows, and Linux computers.
Does it support embedded audio?
Yes. The SDI output supports 16 channels of embedded audio, while the HDMI output supports 8 channels.
Specs
xSpecifications
| Product Type | SDI and HDMI video playback and monitoring interface |
|---|---|
| SDI Video Output | 1 x 10-bit SD/HD switchable |
| SDI Rates | 270 Mb/s, 1.5G, 3G |
| SDI Audio Output | 16 channels embedded in SD/HD |
| HDMI Video Output | 1 x HDMI 2.0 Type A |
| HDMI Audio Output | 8 channels embedded in SD/HD |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 |
| 2K Video Standards | 2K DCI and 2K PsF formats up to 60p |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30; 8, 10-bit YUV 4:2:2 |
| SDI Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 10/12-bit RGB 4:4:4 up to 1080p30; 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 |
| HDMI Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDR Support | HDR metadata packing, HLG, and PQ transfer characteristics |
| Computer Interface | Thunderbolt 3 via USB-C |
| Processing | Hardware-based real-time color space conversion |
| Supported Operating Systems | Mac, Windows 10/11 64-bit, Linux |
| Power Supply | Powered through Thunderbolt |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
