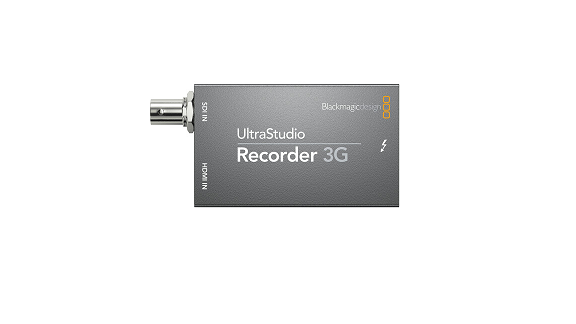

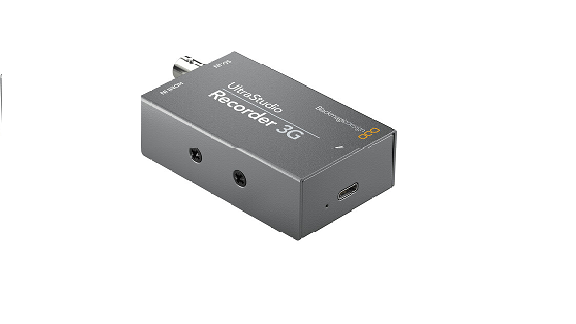

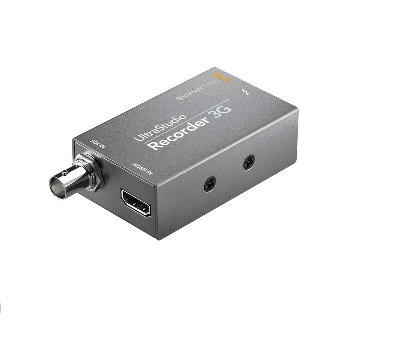

Blackmagic Design UltraStudio Recorder 3G
SKU: BDLKULSDMAREC3G
Key Features
- 3G-SDI and HDMI Inputs
- Thunderbolt 3 Output
- Supports Resolutions up to 1080p60
- Supports YUV and RGB Video
- Compact Design
- 534.00 AED
- 534.00 AED
- Unit price
- per
Dimensions: 9.1 x 4.4 x 2.4 cm
Weight: 0.27 kg
Description
xThe Blackmagic Design UltraStudio Recorder 3G is a compact video capture device designed to bring professional SDI and HDMI video into a computer. It supports 10-bit video capture through 3G-SDI and HDMI, making it suitable for editing, live streaming, post-production, and broadcast workflows.
The recorder features one 3G-SDI input and one HDMI input, with support for video formats up to 1080p60. It can handle both YUV and RGB video and provides embedded audio support through the SDI and HDMI inputs.
Connection to the computer is provided through Thunderbolt 3, allowing a simple single-cable setup with compatible Mac, Windows, and Linux systems. It also works with popular professional software including DaVinci Resolve, Adobe Premiere Pro, Avid Media Composer, and streaming applications.
For more professional video capture solutions, explore the Systec Capture Cards collection.
FAQs
What inputs does the UltraStudio Recorder 3G have?
It has one 3G-SDI input and one HDMI input for capturing professional video signals.
What is the maximum video resolution?
It supports video formats up to 1080p60 through both HDMI and SDI inputs.
Does it support 10-bit video?
Yes. The UltraStudio Recorder 3G supports 10-bit video capture and a range of uncompressed and compressed codecs.
How does it connect to a computer?
It uses a Thunderbolt 3 connection and is designed for compatible Mac, Windows, and Linux computers.
Is it suitable for live streaming?
Yes. It can capture video from SDI or HDMI sources for use with compatible live-streaming software and production workflows.
Specs
xSpecifications
| Product Type | SDI and HDMI video capture device |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD switchable 3G-SDI |
| SDI Rates | 270Mb/s, 1.5Gb/s, 3Gb/s |
| SDI Audio Input | 16 channels embedded in SD/HD |
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| HDMI Audio Input | 8 channels embedded in SD/HD |
| Computer Interface | Thunderbolt 3 |
| Maximum Resolution | 1080p60 |
| Video Sampling | YUV and RGB |
| Supported Systems | Mac, Windows, and Linux |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Power | Powered through Thunderbolt 3 connection |
| Warranty | 1 Year Limited Manufacturer's Warranty |
