Blackmagic Design UpDownCross 100G

SKU: CONVNVIPJ/STG/100G

View More Items from
Blackmagic Design UpDownCross 100G

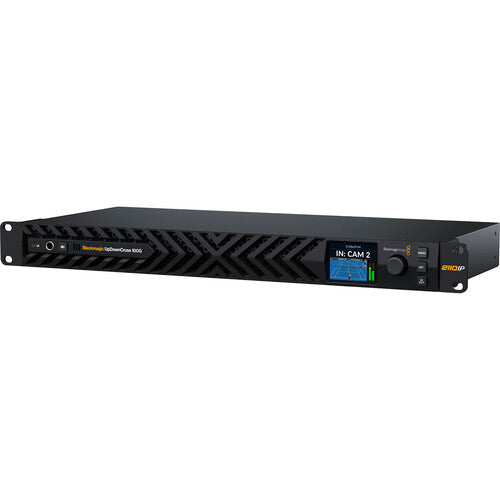

Side view of a black electronic device with purple accents on a white background
Blackmagic Design UpDownCross 100G
Blackmagic Design UpDownCross 100G
Side view of a black electronic device with purple accents on a white background
Blackmagic Design UpDownCross 100G

Key Features

  • 8-Channel Video Standard Conversion
  • SMPTE 2110 IP Video via 2 × 100GbE Ports
  • Supports SD, HD & UHD Video Standards
  • 2.2" LCD Monitor with Control Knob & Buttons
  • External NMOS Control via RJ45 Port
  • 16 Channels of Embedded Audio per Stream
  • 1 RU Rackmount Form Factor
  • Dual Redundant AC Power Inputs
  • Built-In Headphone Jack & Speaker
SKU: CONVNVIPJ/STG/100G
Availability: Available on backorder
10,042.00 AED
10,042.00 AED
Tax excluded.
Subtotal: 10,042.00
10 customers are viewing this product

Dimensions: 48.3 × 21.8 × 4.3 cm

Blackmagic Design UpDownCross 100G

Blackmagic Design UpDownCross 100G

10,042.00
Blackmagic Design UpDownCross 100G
Side view of a black electronic device with purple accents on a white background
Blackmagic Design UpDownCross 100G

Blackmagic Design UpDownCross 100G

10,042.00
Description
Description
x

The Blackmagic Design UpDownCross 100G is a professional 8-channel video standards converter built for modern SMPTE 2110 IP broadcast workflows. It enables real-time conversion between SD, HD, and Ultra HD video formats, making it ideal for live production, broadcast facilities, post-production houses, and IP-based media networks.

Designed for high-bandwidth environments, the UpDownCross 100G features dual QSFP28 100GbE Ethernet ports for SMPTE 2110 connectivity and supports 10-bit 4:2:2 video processing with resolutions up to 4K UHD at 60 fps. It also supports up to 16 channels of embedded audio per stream, ensuring synchronized audio and video throughout production workflows.

A built-in 2.2-inch LCD display with front panel controls allows quick monitoring and configuration, while external NMOS control provides seamless integration into managed IP broadcast systems. Dual redundant AC power inputs help maximize uptime for mission-critical applications, and the compact 1RU rackmount design fits easily into professional broadcast racks.

Systec International supplies genuine Blackmagic Design broadcast equipment across the UAE. Explore our Video Converters, Broadcast Equipment, Capture & Playback Devices, and Professional Video Accessories to build a complete production workflow.

Frequently Asked Questions

What is the Blackmagic Design UpDownCross 100G used for?

It is designed to convert SD, HD, and UHD video standards within SMPTE 2110 IP broadcast environments.

What video resolutions does it support?

The converter supports SD, HD, and Ultra HD video formats up to 3840 × 2160 at 60 fps.

How many IP connections does the UpDownCross 100G provide?

It features two QSFP28 100GbE Ethernet ports for high-speed SMPTE 2110 IP video connectivity.

Does it support embedded audio?

Yes. The unit supports up to 16 channels of embedded audio for each IP stream.

Is the UpDownCross 100G suitable for broadcast facilities?

Yes. It is built specifically for professional broadcast, live production, and IP-based video infrastructure using SMPTE 2110 standards.

Does it include redundant power supplies?

Yes. The converter features dual redundant AC power inputs for improved reliability during continuous operation.

Read more
In the Box
In the Box
x
  • Blackmagic Design UpDownCross 100G
  • Limited 1-Year Manufacturer Warranty
Specs
Specs
x
Brand Blackmagic Design
Model UpDownCross 100G
Device Type 8-Channel Video Standard Converter
Video I/O 2 × QSFP28 100G Ethernet (Input/Output)
Supported Video Resolution 3840 × 2160 (UHD), 1920 × 1080p, 1920 × 1080PsF, 1920 × 1080i, 1280 × 720 (10-Bit 4:2:2 YUV)
Supported Frame Rates 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps (depending on resolution)
Audio Format 48 kHz / 24-Bit Digital Audio
Embedded Audio 16 Channels per IP Stream
Video Standards SMPTE ST 2110-20, ST 2110-21, ST 2110-30, ST 2110-40, ST 2022-7
HDR Support Yes
Broadcast Compatibility NTSC, PAL
Display 2.2" LCD
Control Interface Front Panel Controls with LCD, External NMOS Control
Wireless No
Operating System Compatibility macOS 26.0 or later, Windows 11 or later
Power Input Dual IEC C14 AC Inputs (100–240V AC)
Power over Ethernet (PoE) No
Rack Size 1 RU
Operating Temperature 0°C to 40°C (32°F to 104°F), up to 90% Humidity
Storage Temperature -20°C to 45°C (-4°F to 113°F), up to 90% Humidity
Certifications IEEE 1588-2008, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7
Dimensions 19 × 8.6 × 1.7 in (48.3 × 21.8 × 4.3 cm)
Read more
