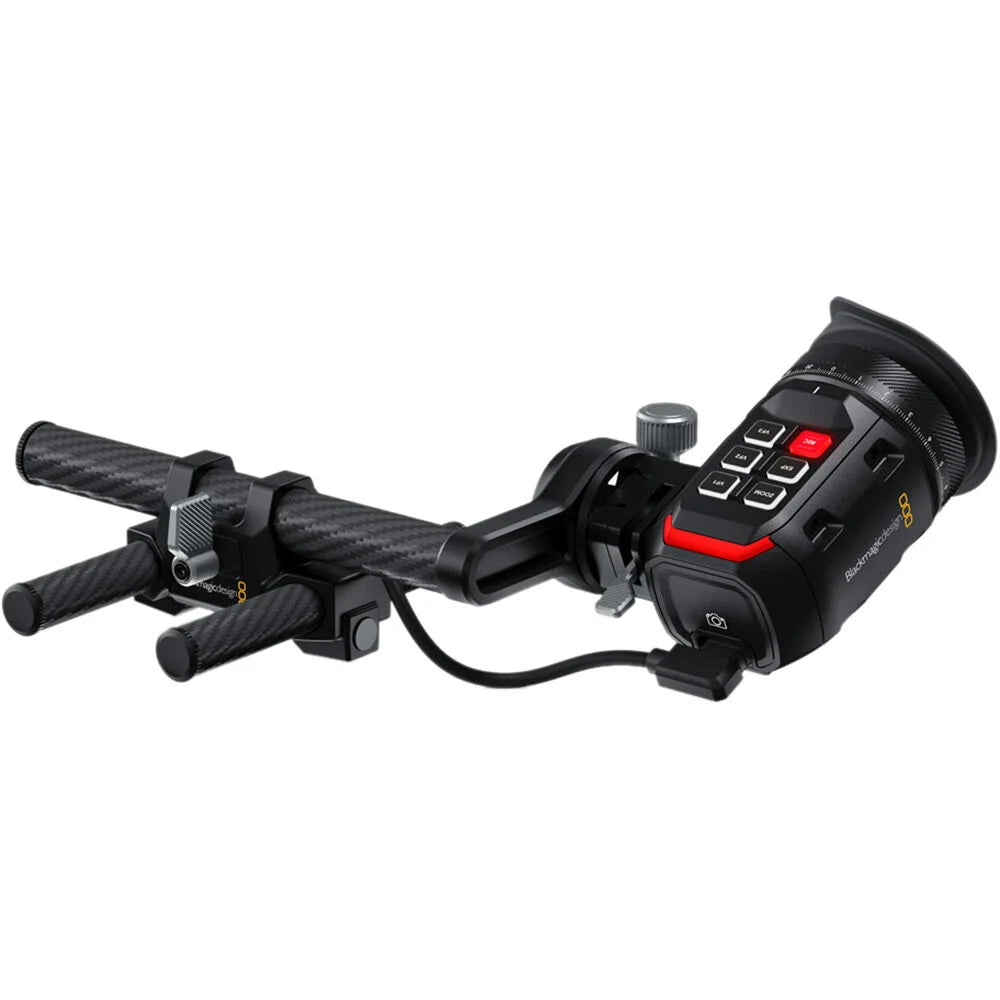

Blackmagic Design URSA Cine EVF

The Blackmagic Design URSA Cine EVF is a professional electronic viewfinder designed for Blackmagic URSA Cine and PYXIS 6K cameras. Its full 1920 x 1080 OLED display with 6.22 million dots provides a sharp, detailed view for accurate framing and focusing during handheld, outdoor, and professional cinema production.

The EVF features a 4-element glass diopter with a -5 to +5 adjustment range, allowing operators to fine-tune the viewfinder for comfortable and precise viewing. The eyepiece can be tilted and extended for left- or right-eye operation, while the built-in proximity sensor helps activate the display when the EVF is in use.

A single USB-C connection carries video, power, camera control data, and firmware update functionality. Dedicated Record, Exposure, Zoom, and three assignable viewfinder buttons provide quick access to important camera controls. The built-in LED tally light also gives a clear indication when recording.

The URSA Cine EVF includes an adjustable mounting system, carbon fiber rods, and an EVF extension for flexible positioning on a camera, dolly, or geared head. The Blackmagic URSA Cine Handle is required when mounting the EVF to URSA Cine and PYXIS 6K cameras. For more professional camera monitoring solutions, explore Systec International's Viewfinders collection.

FAQs

What cameras are compatible with the URSA Cine EVF?

It is designed for Blackmagic URSA Cine cameras and Blackmagic PYXIS 6K cameras.

What is the display resolution?

The EVF uses a 1920 x 1080 OLED display with 6.22 million dots and supports frame rates up to 60fps.

What is the diopter range?

The 4-element glass diopter provides an adjustment range from -5 to +5.

How does the EVF connect to the camera?

It uses USB-C for video, power, camera control data, and firmware updates.

Is a handle required for mounting?

Yes. The Blackmagic URSA Cine Handle is required to mount the EVF to Blackmagic URSA Cine and PYXIS 6K cameras.
