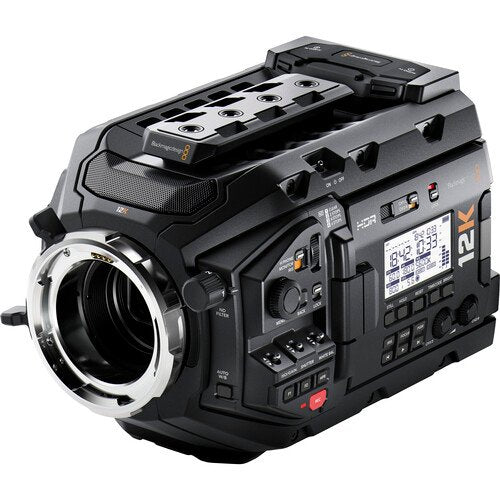

Blackmagic Design URSA Mini Pro 12K (PL)
SKU: CINEURSAMUPRO12K
Key Features
- 12K Super35 HDR CMOS Sensor
- 12K 17:9 to 60 fps/12K 2.4:1 to 75 fps
- DCI 8K to 120 fps/14 Stops Dynamic Range
- User-Changeable PL Lens Mount
- 4K Super16 up to 220 fps
- 80MP/frame Blackmagic Raw
- Dual CFast 2.0 or SD Card Recording
- USB Type-C Recording to Disk/SSD
SKU:
CINEURSAMUPRO12K
Availability:
Out Of Stock
- 25,852.00 AED
- 25,852.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 38 x 23 x 21 cm
Weight: 3.8 kg
Description
x| Lens Mount | ARRI PL |
| Included Lens Mount Adapter | None |
| Lens Communication | Yes |
| Sensor Resolution | Effective: 79.6 Megapixel (12,288 x 6480) |
| Sensor Type | 27.03 x 14.25 mm (Super35) CMOS |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Shutter Type | Electronic Rolling Shutter |
| Advertised Dynamic Range | 14 Stops |
| Raw Recording | Raw 12-Bit12288 x 6480 at 23.98/24.00/25/29.97/50/59.94/60 fps [72 to 578 MB/s]11520 x 648 at 23.98/24.00/25/29.97/50/59.94/60 fps12288 x 5112 at 23.98/24.00/25/29.97/50/59.94/60 fps7680 x 6408 at 23.98/24.00/25/29.97/50/59.94/60 fps8192 x 4320 at 23.98/24.00/25/29.97/50/59.94/60 fps [32 to 258 MB/s]7680 x 4320 up to 23.98/24.00/25/29.97/50/59.94/60/119.88 fps8192 x 3408 at 23.98/24.00/25/29.97/50/59.94/60/119.88 fps5120 x 4272 at 23.98/24.00/25/29.97/50/59.94/60/119.88 fps6144 x 3240 at 23.98/24.00/25/29.97/50/59.94/60/119.88 fps [18 to 145 MB/s]4096 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [8 to 65 MB/s]4096 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps4096 x 1704 at 23.98/24.00/25/29.97/59.94/60 fps2560 x 2136 at 23.98/24.00/25/29.97/50/59.94/60 fps |
| Variable Frame Rates | 12K: Up to 60 fps12K Anamorphic: Up to 75 fps8K: Up to 119.88 fpsDCI 4K: Up to 119.88 fps8K Anamorphic: Up to 160 fps4K Anamorphic: Up to 160 fps6K (Windowed): Up to 119.88 fpsDCI 4K (Windowed): Up to 240 fps |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| Raw Output | USB: 12 x 64808192 x 43206144 x 32404096 x 2160 |
| Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0)Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1 x BNC (12G-SDI) Input1 x BNC (12G-SDI) Output1 x BNC (3G-SDI) Monitor Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
| Power I/O | 1 x XLR 4-Pin Input1 x Molex 12-Pin Input/Output1 x XLR 4-Pin (12 VDC) Output |
| Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 2)1 x USB Type-C Data Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Accessory Mount | 4 x 1/4"-20 Female1 x ARRI/Hirth Rosette |
| Dimensions (W x H x D) | 9.2 x 5.92 x 5.87" / 23.4 x 15.04 x 14.91 cm |
| Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0)Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1 x BNC (12G-SDI) Input1 x BNC (12G-SDI) Output1 x BNC (3G-SDI) Monitor Output |
| Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
| Power I/O | 1 x XLR 4-Pin Input1 x Molex 12-Pin Input/Output1 x XLR 4-Pin (12 VDC) Output |
| Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 2)1 x USB Type-C Data Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Accessory Mount | 4 x 1/4"-20 Female1 x ARRI/Hirth Rosette |
| Dimensions (W x H x D) | 9.2 x 5.92 x 5.87" / 23.4 x 15.04 x 14.91 cm |
