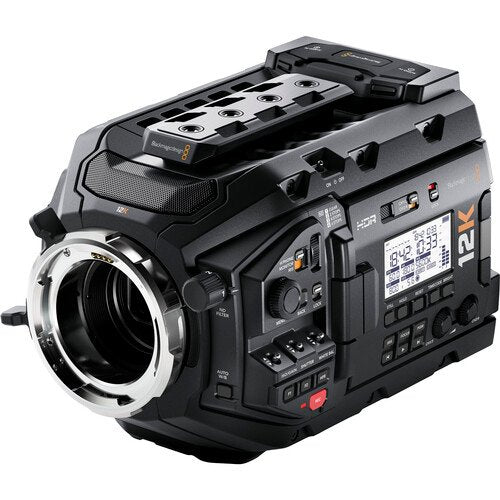

Blackmagic Design URSA Mini Pro 12K with OLPF
SKU: CINEURSAMUPRO12KOLPF
Key Features
- 12K Super35 HDR CMOS Sensor
- 12K 17:9 at 60 fps | 12K 2.4:1 at 75 fps
- OLPF for Reduced Moire and Aliasing
- Updated IR Filtering
- DCI 8K at 120 fps, 14-Stop Dynamic Range
- User-Changeable PL Lens Mount
- 4K Super16 up to 220 fps
- 80MP/frame Blackmagic Raw
- Dual CFast 2.0 or SD Card Recording
- USB-C Recording to Disk/SSD
- 26,735.00 AED
- 26,735.00 AED
- Unit price
- per
Dimensions: 25 x 17 x 16 cm
Weight: 3 kg
Description
xThe Blackmagic Design URSA Mini Pro 12K OLPF is a high-end digital cinema camera built for feature films, television, commercials, and demanding virtual production workflows. It combines a 12K Super 35 sensor with 14 stops of dynamic range and Blackmagic’s advanced color science for detailed, cinematic images.
The integrated optical low-pass filter is precisely matched to the 12K sensor to help reduce moiré and aliasing while maintaining fine image detail. Its updated IR filtering also improves far-red color response, making the camera well suited to high-resolution shooting and LED volume environments.
The camera records 12-bit Blackmagic RAW at resolutions up to 12K and supports high-speed recording at up to 240fps in 4K Super 16. It also features a PL lens mount, built-in four-position IR ND filter wheel, dual CFast 2.0 and SD UHS-II card slots, plus USB-C recording to external flash disks or SSDs.
For more professional digital cinema cameras and production equipment, explore Systec International’s Digital Cinematography Cameras collection.
FAQs
What is the URSA Mini Pro 12K OLPF designed for?
It is designed for high-end digital cinema, feature films, commercials, television, and virtual production.
What sensor does the URSA Mini Pro 12K OLPF use?
It uses a 27.03 × 14.25mm Super 35 sensor with a resolution of 12,288 × 6,480 and 14 stops of dynamic range.
What does the OLPF do?
The optical low-pass filter helps reduce moiré and aliasing while preserving important image detail. It is particularly useful with high-resolution sensors and LED video walls.
What recording formats are supported?
The camera records 12-bit Blackmagic RAW with constant bitrate options from 5:1 to 18:1 and constant quality options from Q0 to Q5.
What lens mount is included?
The camera includes a PL lens mount, which can be replaced with optional EF or F lens mounts.
Specs
xSpecifications
| Product Type | Digital Cinema Camera |
|---|---|
| Sensor | 27.03 × 14.25mm Super 35 CMOS |
| Sensor Resolution | 12,288 × 6,480 |
| Dynamic Range | 14 stops |
| Lens Mount | PL mount, interchangeable with optional EF and F mounts |
| Optical Filter | High-performance optical low-pass filter with updated IR filtering |
| Built-in ND Filters | Clear, 2-stop, 4-stop and 6-stop IR ND |
| Maximum Resolution | 12K DCI, 12,288 × 6,480 |
| High-Speed Recording | 12K up to 60fps; 8K up to 120fps; 4K Super 16 up to 240fps |
| Recording Format | Blackmagic RAW |
| RAW Compression | 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 |
| Storage | 2 × CFast 2.0, 2 × SD UHS-II and USB-C external media |
| USB-C | USB 3.1 Gen 2 with power delivery for external recording |
| Screen | 4-inch LCD touchscreen |
| Audio Inputs | 2 × XLR analog inputs, switchable mic, line and AES |
| Audio Output | 3.5mm headphone output |
| Reference Input | Tri-Sync, Black Burst and Timecode |
| Remote Control | 2.5mm LANC input for recording, iris and focus control |
| Power | 12V external power with 4-pin XLR and rear battery connection |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
