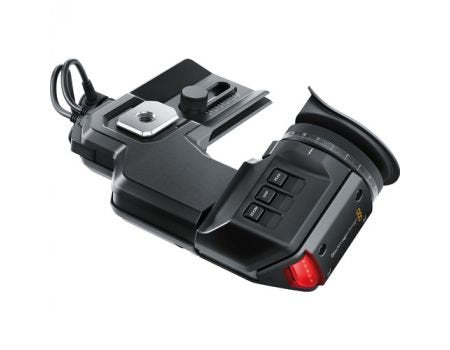

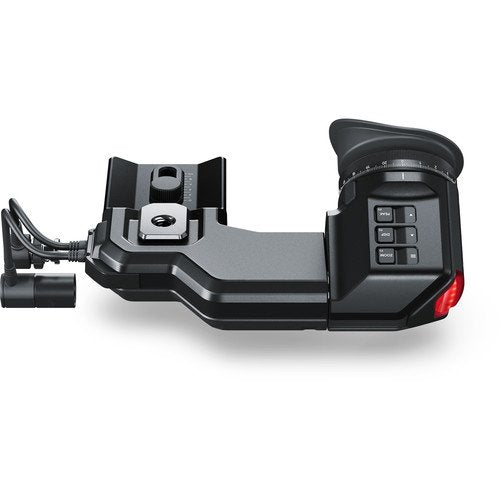

Blackmagic Design URSA Viewfinder
SKU: CINECAMURSANEVFP
>Key Features
- Designed for URSA & URSA Mini
- 1920 x 1080 OLED Display
- Glass Optics
- Adjustable Diopter
- Digital Focus Chart
- 6,274.00 AED
- 6,274.00 AED
- Unit price
- per
Dimensions: 28.95 x 21.08 x 11.43 cm
Weight: 1.06 kg
Description
xThe Blackmagic Design URSA Viewfinder is designed for professional handheld and outdoor shooting with Blackmagic URSA and URSA Mini digital film cameras. It features a high-resolution 1920 x 1080 color OLED display with precision glass optics for a clear and accurate view while shooting.
The adjustable four-element diopter helps you fine-tune the viewfinder to your eyesight, while the built-in digital focus chart makes it easier to achieve accurate focus. The eyepiece can also be adjusted for comfortable left- or right-eye operation.
An eye sensor automatically turns the OLED display off when you are not looking through the viewfinder, helping extend the display's life. It also includes a built-in tally light, camera controls, and 3G-SDI connectivity. For more professional camera accessories, explore Systec International's Viewfinders collection.
FAQs
What cameras is the Blackmagic URSA Viewfinder compatible with?
It is designed for Blackmagic URSA and URSA Mini cameras. A URSA Mini Shoulder Kit is required when mounting it on URSA Mini, URSA Mini Pro, or URSA Broadcast.
What is the viewfinder display resolution?
It has a 1920 x 1080 OLED display with 6.22 million pixels.
Does it support adjustable focus?
Yes. It features a four-element diopter with a range of -4 to +3 for adjusting the viewfinder to your eyesight.
Does the viewfinder support left- and right-eye use?
Yes. The eyepiece can be tilted and extended for left- or right-eye operation.
What video connection does it use?
The URSA Viewfinder uses a 3G-SDI BNC video input and a 4-pin XLR 12V power input.
Specs
xSpecifications
| Product Type | Professional Camera Viewfinder |
|---|---|
| Compatible Cameras | Blackmagic URSA, URSA Mini, URSA Mini Pro, URSA Broadcast |
| Display Resolution | 1920 x 1080 |
| Display Type | OLED |
| Display Pixels | 6.22 million pixels |
| Frame Rate | Up to 60 fps |
| Color Precision | 24-bit RGB, 16.7 million colors |
| Focus | 4-element diopter |
| Diopter Range | -4 to +3 |
| Video Input | 1 x 3G-SDI BNC |
| Power Input | 1 x 4-pin XLR, 12V |
| Computer Interface | USB 2.0 Mini-B for software updates |
| Eyepiece | Adjustable for left- or right-eye use |
| Tally | LED tally light |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90% non-condensing |
