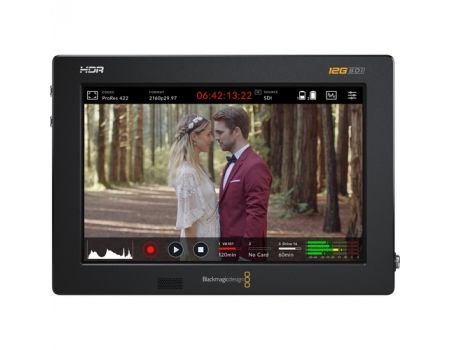

Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor
SKU: HYPERD/AVIDA12/7HDR
Key Features
- 7" 1920 x 1200 Touchscreen LCD
- Record up to DCI or UHD 4K HDR Video
- HDMI and 12G-SDI Video Inputs & Outputs
- 10-Bit, 4:2:2 ProRes & DNxHD Encoding
- Blackmagic RAW with Select Cameras
- 3D LUTs, 2500 cd/m² Brightness
- Stores to Dual SDHC/XC Memory Slots
- Two Balanced Mini-XLR Audio Inputs
- Histogram, Waveform, Vectorscope
- Dual L-Series Battery Slots, AC Adapter
- 3,382.00 AED
- 3,382.00 AED
- Unit price
- per
Dimensions: 26 x 25 x 9 cm
Weight: 1.5 kg
Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor
Description
xThe Blackmagic Design Video Assist 7” 12G-SDI/HDMI HDR Recording Monitor combines professional monitoring and high-quality recording in a bright 7-inch touchscreen display. It features a 1920 x 1200 resolution, 2500-nit brightness, 12G-SDI and HDMI inputs and outputs, making it suitable for professional cameras and production workflows.
It supports recording up to DCI 4K, UHD 4K, 2K and HD in 10-bit 4:2:2 using Apple ProRes and Avid DNx codecs. The monitor also supports 3D LUTs, professional scopes, Blackmagic RAW with compatible cameras and dual UHS-II SD card recording.
For professional monitoring and recording equipment, explore Systec International’s Monitors collection.
FAQs
What resolution does the Video Assist 7” support?
It supports HD, 2K, UHD 4K and DCI 4K recording and monitoring with 10-bit 4:2:2 video.
How bright is the display?
The 7-inch touchscreen provides up to 2500 cd/m² brightness and supports a P3 wide color gamut.
What recording formats are supported?
It records in Apple ProRes, DNxHD and DNxHR formats, with Blackmagic RAW available for select compatible cameras.
Does it support SD cards?
Yes. It features two UHS-II SD card slots for recording to SDHC and SDXC cards.
Does it have professional audio inputs?
Yes. It includes two balanced mini-XLR audio inputs with 48V phantom power.
Specs
xSpecifications
| Display | 7" 1920 x 1200 LCD |
|---|---|
| Display Brightness | 2500 cd/m² |
| SDI Input | 1 x 12G-SDI |
| SDI Output | 1 x 12G-SDI |
| HDMI Input | 1 x HDMI 2.0a |
| HDMI Output | 1 x HDMI 2.0a |
| SDI Rates | 270Mb, 1.5G, 3G, 6G and 12G |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| HDR Support | HDR10 and Hybrid Log-Gamma |
| Analog Audio Inputs | 2 x balanced mini-XLR with phantom power |
| Audio Output | 1 x 3.5mm headphone jack |
| Media | 2 x UHS-II SD card slots |
| Computer Interface | USB Type-C 3.1 Gen 1 |
| Supported Codecs | Apple ProRes, DNxHD, DNxHR and Blackmagic RAW with compatible cameras |
| Power | 12V DC input and dual L-Series battery slots |
