Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
SKU: VHUBSMAS12G120120
Key Features
- 120 x 12G-SDI Inputs & 120 x Outputs
- Zero-Latency Routing Switcher
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- 4:2:2 & 4:4:4 Video Sampling Supported
- Push-Button, Knob & Ethernet Control

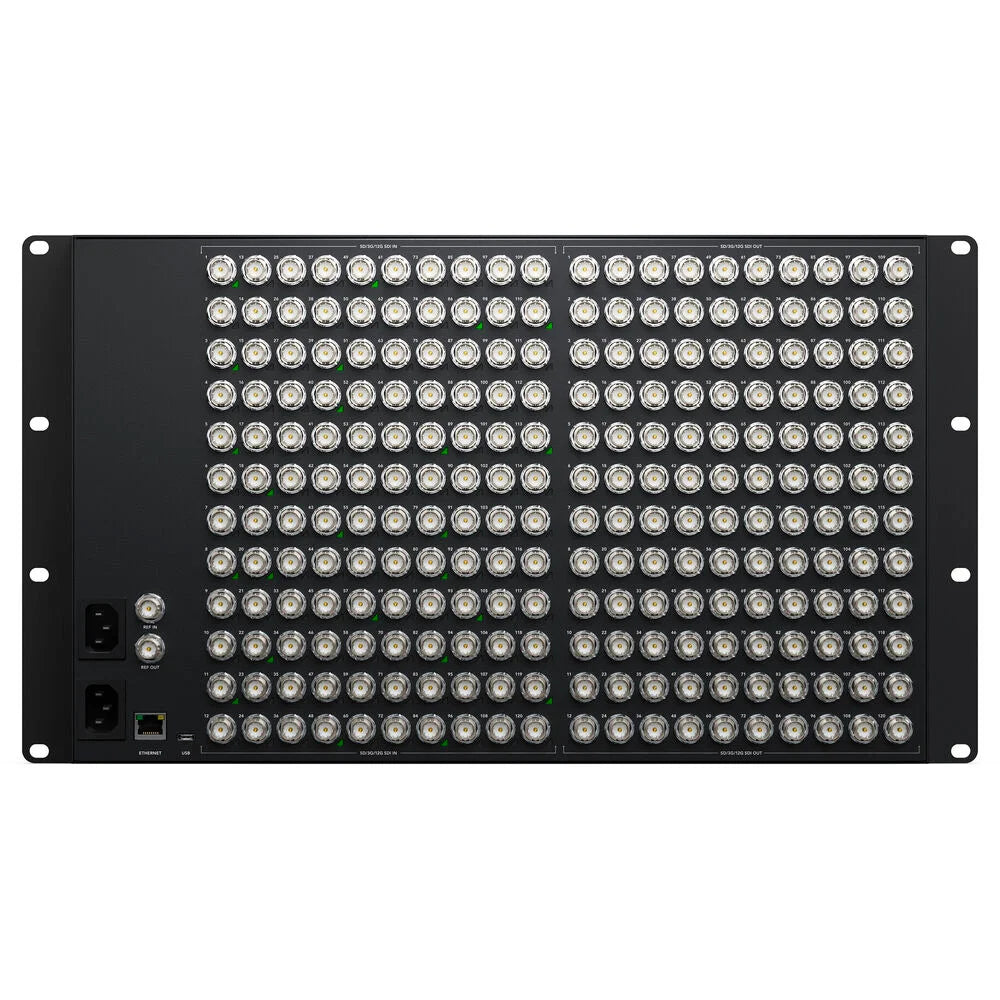

- SDI Reclocking, Standard BNC Connectors
- 32 Channels of Embedded Audio
- Mac, Windows, iPad Router Control
- Separate Connector Rows for Easy Repair
- 54,041.00 AED
- 54,041.00 AED
- Unit price
- per
Dimensions: 49 x 27 x 17 cm
Weight: 15 kg

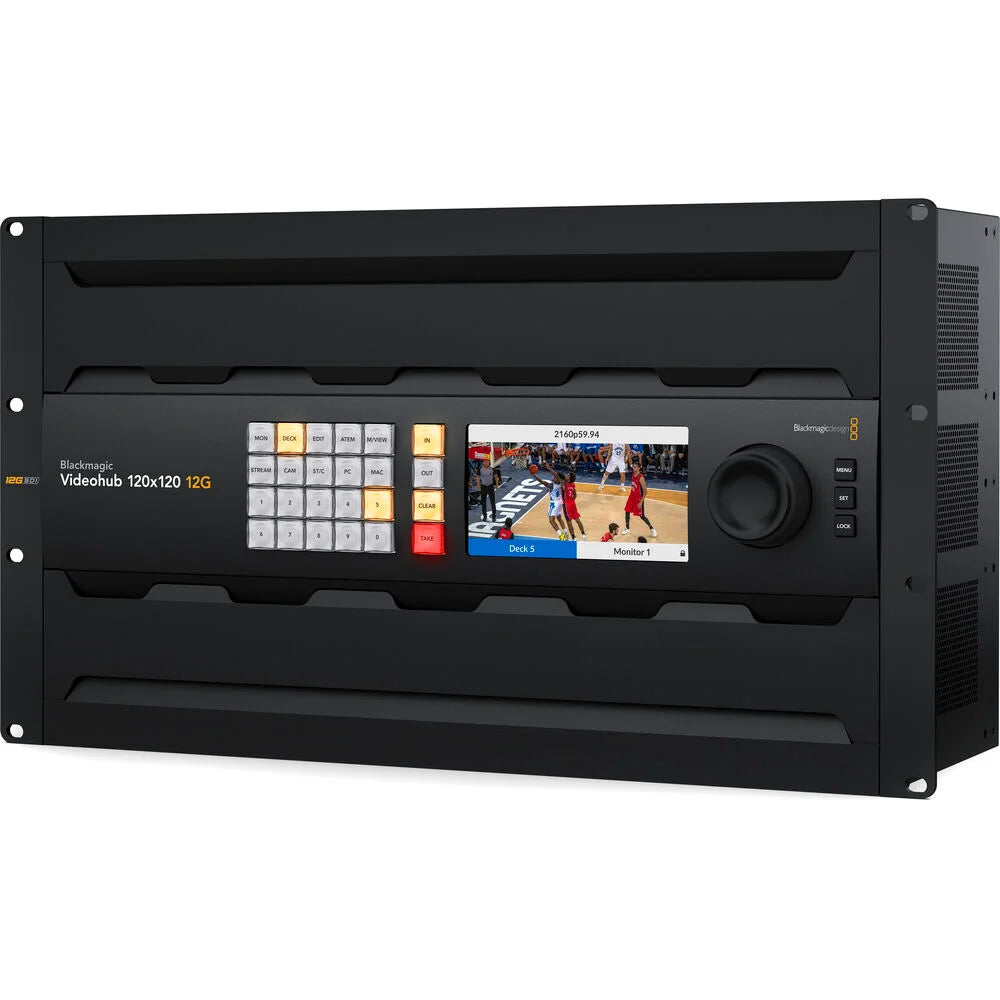

Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Description
xThe Blackmagic Design Videohub 120x120 12G is a professional zero-latency SDI video router built for large broadcast, live production, and studio environments. It provides 120 SDI inputs and 120 SDI outputs, allowing multiple cameras, switchers, monitors, recorders, and other SDI equipment to be connected and routed from one central system. It supports SD, HD, and Ultra HD formats on the same router, including video standards up to 2160p60.
The router supports DVB-ASI, 270Mb, 1.5G, 3G, 6G, and 12G-SDI signals. SDI re-clocking is available on all outputs, helping maintain reliable signal quality across professional broadcast installations. Reference connections support Tri-Sync or Black Burst, while the reference output provides a terminating loop connection.

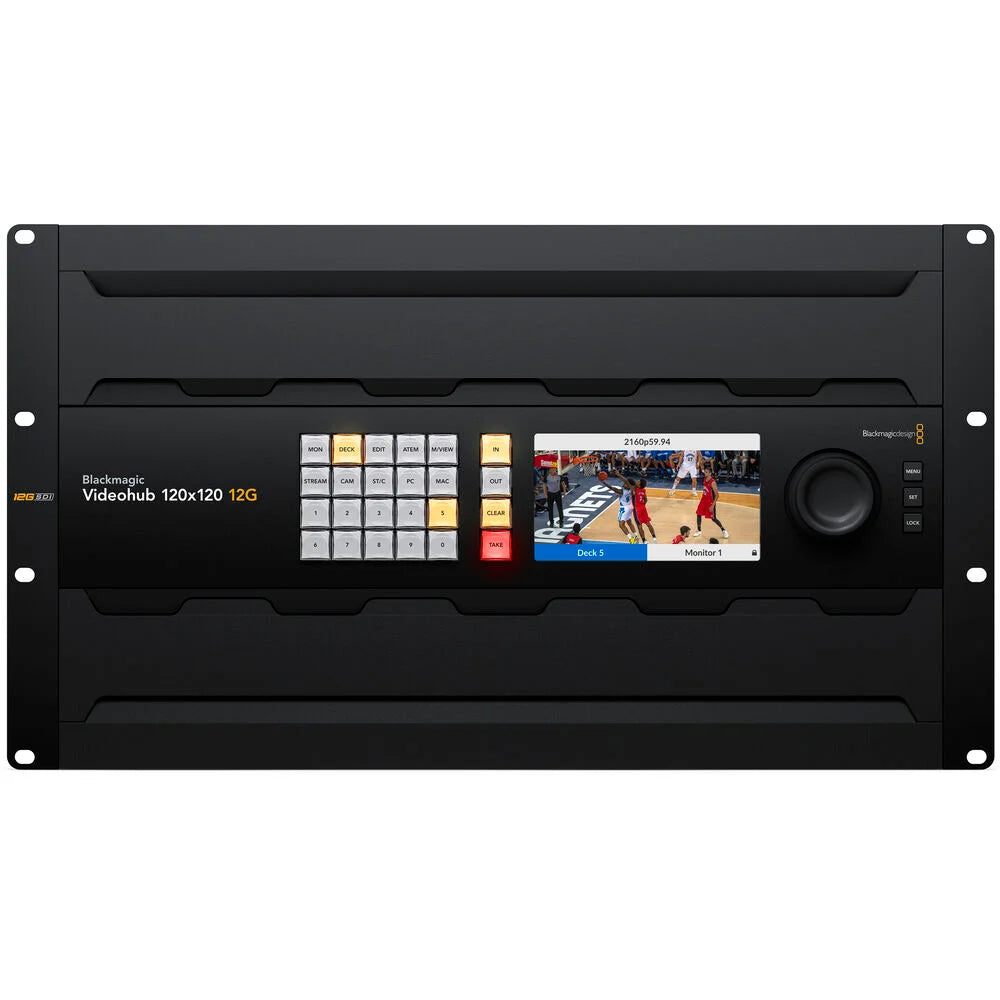

For local operation, the Videohub features 24 routing buttons, menu buttons, a large search dial, and a 5-inch color LCD for viewing video, routing labels, and video standards. Ethernet connectivity enables remote control through Blackmagic Videohub software, compatible hardware control panels, and the Videohub Control Protocol.
The 120x120 model also includes redundant internal power supplies and USB-C for computer connectivity. With support for Mac and Windows control software, this router is well suited for broadcast studios, OB facilities, production trucks, post-production environments, and large SDI infrastructure. For more routing and control equipment, explore the Systec switchers and controllers collection.
FAQs
How many inputs and outputs does the Videohub 120x120 12G have?
It provides 120 SDI video inputs and 120 SDI video outputs.
What video formats does it support?
It supports SD, HD, 2K, Ultra HD, and 4K DCI standards, with supported formats up to 2160p60.
Does the Videohub 120x120 12G support SDI re-clocking?
Yes. SDI re-clocking is available on all SDI outputs.
Can the router be controlled remotely?
Yes. Ethernet connectivity supports remote control through Blackmagic Videohub software, compatible hardware control panels, and the Videohub Control Protocol.
Does it include redundant power?
Yes. The router has two internal 100–240V AC power supplies for power redundancy.
Specs
xSpecifications
| Product Type | Zero-latency SDI video router |
|---|---|
| SDI Video Inputs | 120 |
| SDI Video Outputs | 120 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Video Input Re-Sync | None |
| SDI Re-Clocking | On all SDI outputs |
| Reference Input | Tri-Sync or Black Burst |
| Reference Output | Reference terminating loop output |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB-C |
| Control Panel | 24 routing buttons, 3 menu buttons and search dial |
| Display | 5-inch color LCD |
| Software Control | Blackmagic Videohub software for Mac and Windows |
| External Control | Ethernet, Videohub Control Protocol, Smart Control Pro and Master Control Pro |
| Power Supply | 2 x internal 100–240V AC, 50/60Hz |
| Power Consumption | 140W maximum |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3-year limited manufacturer warranty |
