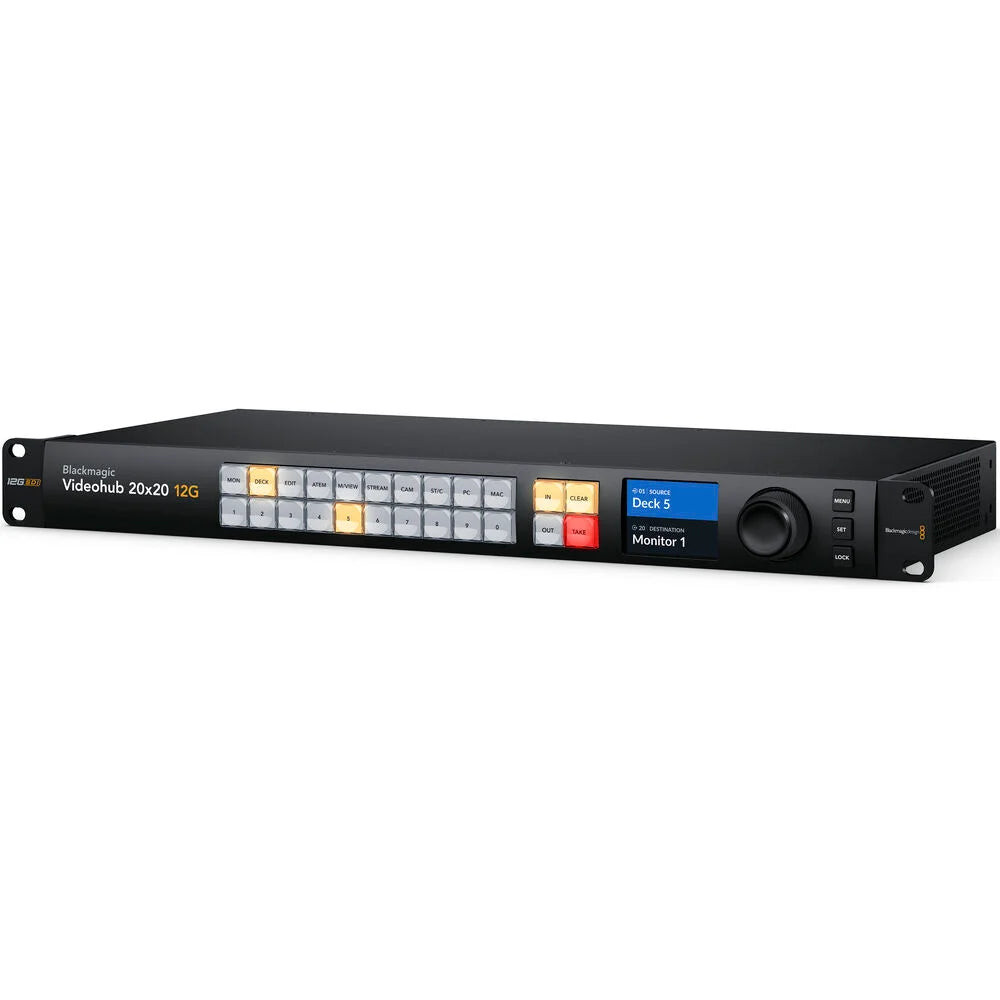

Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
SKU: VHUBSMAS12G02020
Key Features
- Zero-Latency Routing Switcher
- 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, Compact 1 RU Size
- Includes Videohub Mac/Windows Software
- 9,785.00 AED
- 9,785.00 AED
- Unit price
- per
Dimensions: 54 x 29 x 9 cm
Weight: 4.2 kg
Description
xThe Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router is a professional SDI routing solution designed for broadcast studios, live production, post-production, and professional video facilities. It provides 20 12G-SDI inputs and 20 12G-SDI outputs in a compact 1RU design, allowing multiple video sources and destinations to be connected through a single router.
The Videohub 20x20 12G supports SD, HD, 2K, and Ultra HD formats up to 2160p60, allowing different SDI standards to be used on the router at the same time. Its zero-latency design makes it suitable for live production environments where immediate signal routing is important.
Built-in SDI re-clocking on all outputs helps maintain signal quality, while the reference connections support Tri-Sync and Black Burst synchronization. The router also includes a front-panel control system with dedicated buttons, a search dial, and a 2.2-inch color LCD for viewing video, routing labels, and video standards.
For remote operation, the Videohub 20x20 12G supports 10/100/1000 BASE-T Ethernet and includes software control for Mac and Windows. It also supports Blackmagic Videohub hardware control panels and the Videohub SDK, making it easy to integrate into larger broadcast and production systems.
The router is a strong choice for production facilities that need flexible SDI signal distribution, centralized routing, and reliable operation across multiple video formats.
For more professional video routing equipment, explore our Video Routers & Distribution collection and Blackmagic Design range for additional broadcast and production solutions.
Frequently Asked Questions
What is the Blackmagic Videohub 20x20 12G used for?
The Videohub 20x20 12G is used to route SDI video signals between multiple cameras, switchers, monitors, recorders, and other professional video equipment.
How many inputs and outputs does it have?
It provides 20 12G-SDI inputs and 20 12G-SDI outputs, allowing up to 20 sources and 20 destinations to be connected.
What video formats does the Videohub 20x20 12G support?
It supports SD, HD, 2K, Ultra HD, and 4K DCI formats up to 2160p60.
Does the router have zero latency?
Yes. The Videohub 20x20 12G uses a zero-latency design, making it suitable for live production and broadcast applications.
Can it be controlled remotely?
Yes. The router supports Ethernet control and includes software control for Mac and Windows. It can also work with compatible Videohub hardware control panels.
Specs
x| Model | Blackmagic Videohub 20x20 12G |
|---|---|
| Product Type | Zero-Latency 12G-SDI Video Router |
| SDI Video Inputs | 20 |
| SDI Video Outputs | 20 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Video Input Re-Sync | None |
| SDI Re-Clocking | All SDI Outputs |
| Reference Input | Tri-Sync or Black Burst |
| Reference Output | Reference Terminating Loop Output |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB-C |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080i, 1080p, 1080PsF up to 60 fps |
| 2K Video Standards | DCI 2K up to 60 fps |
| Ultra HD Video Standards | 2160p23.98 to 2160p60 |
| 4K Video Standards | DCI 4K up to 60 fps |
| SDI Compliance | SMPTE 259M, 292M, 296M, 372M, 424M, 425M, 2081-1, 2081-10, 2082-10 |
| SDI Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Color Precision | 10-bit YUV 4:2:2; 10/12-bit RGB 4:4:4 in supported modes |
| SDI Color Space | REC 601, REC 709, REC 2020 |
| Built-In Control Panel | 24 Routing Buttons, Menu Buttons, Search Dial, 2.2" Color LCD |
| External Control | Blackmagic Videohub Software, Smart Control Pro, Master Control Pro |
| Operating Systems | macOS 13.0 Ventura or Later; Windows 10 64-bit and Windows 11 |
| Power Supply | Internal 100-240V AC, 50/60Hz |
| Power Consumption | 27.5W Maximum |
| Rack Installation | 1 RU |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90% Non-Condensing |
| Warranty | 3-Year Limited Manufacturer's Warranty |
