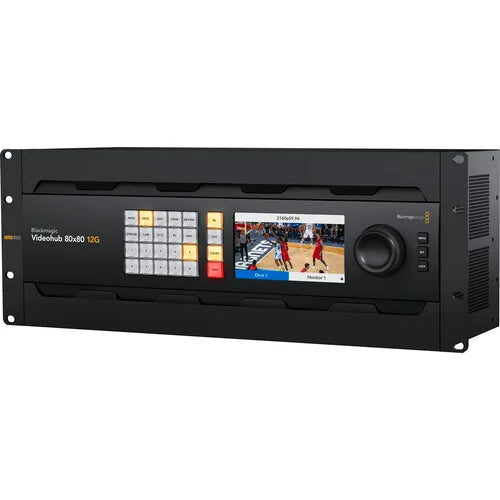

Blackmagic Design Videohub 80x80 12G Zero Latency Video Router
SKU: VHUBSMAS12G8080
Key Features
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- 4:2:2 & 4:4:4 Video Sampling Supported
- Push-Button, Knob & Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
- 42,721.00 AED
- 42,721.00 AED
- Unit price
- per
Dimensions: 49 x 24 x 18 cm
Weight: 11 kg
Description
xThe Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router is a professional broadcast router designed to manage large SDI signal networks with fast, reliable routing. It provides 80 12G-SDI inputs and 80 12G-SDI outputs, allowing multiple cameras, recorders, switchers, monitors, and other SDI equipment to be connected through a single routing system.
The router supports SD, HD, Ultra HD and DCI 4K video standards up to 2160p60, with multi-rate 12G-SDI connections that can handle different video standards simultaneously. It also supports 4:2:2 and 4:4:4 video sampling, while SDI reclocking on all outputs helps maintain signal quality across professional production environments.

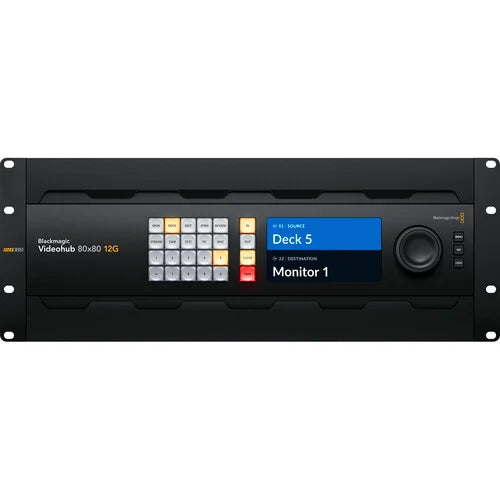

A built-in 5-inch LCD display lets operators preview video, view routing labels and check video standards before making a connection. Front-panel buttons and the large electronic-clutch spin knob provide direct control, while Ethernet control and Videohub software allow routing from Mac or Windows computers.
With redundant internal power supplies, reference connections, USB-C computer connectivity and support for optional Videohub Smart Control Pro and Master Control Pro panels, the Videohub 80x80 12G is well suited to broadcast studios, OB production, post-production facilities and large live-event systems. For more professional routing and live-production equipment, explore Systec International's Switchers & Controllers collection.
FAQs
How many inputs and outputs does the Videohub 80x80 12G have?
It provides 80 12G-SDI inputs and 80 12G-SDI outputs.
What video formats does it support?
It supports SD, HD, Ultra HD and DCI 4K standards, including video up to 2160p60.
Does the Videohub 80x80 12G support zero-latency routing?
Yes. It is designed as a zero-latency SDI video router for fast signal routing.
Can it be controlled from a computer?
Yes. Videohub software control is included for Mac and Windows, with Ethernet control and support for Videohub control protocols and SDK.
Does it support SDI reclocking?
Yes. SDI reclocking is available on all SDI outputs to help maintain signal integrity.
Specs
xSpecifications
| Product Type | Professional Zero-Latency Video Router |
|---|---|
| SDI Video Inputs | 80 x 12G-SDI |
| SDI Video Outputs | 80 x 12G-SDI |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Video Input Re-Sync | None |
| SDI Reclocking | All SDI outputs |
| Maximum Video Standard | 2160p60 |
| Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Audio Sampling | 48kHz, 24-bit |
| Reference Input | Tri-Sync or Black Burst |
| Reference Output | Reference terminating loop output |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB-C |
| Control Panel | 24 buttons, 3 menu buttons and search dial |
| Display | 5-inch color LCD |
| Software Control | Videohub Software Control for Mac and Windows |
| External Control | Videohub Smart Control Pro, Master Control Pro, SDK and Ethernet control protocol |
| Power Supply | 2 x internal 100–240V AC, 50/60Hz |
| Power Consumption | 92W maximum |
| Rack Height | 4RU |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
