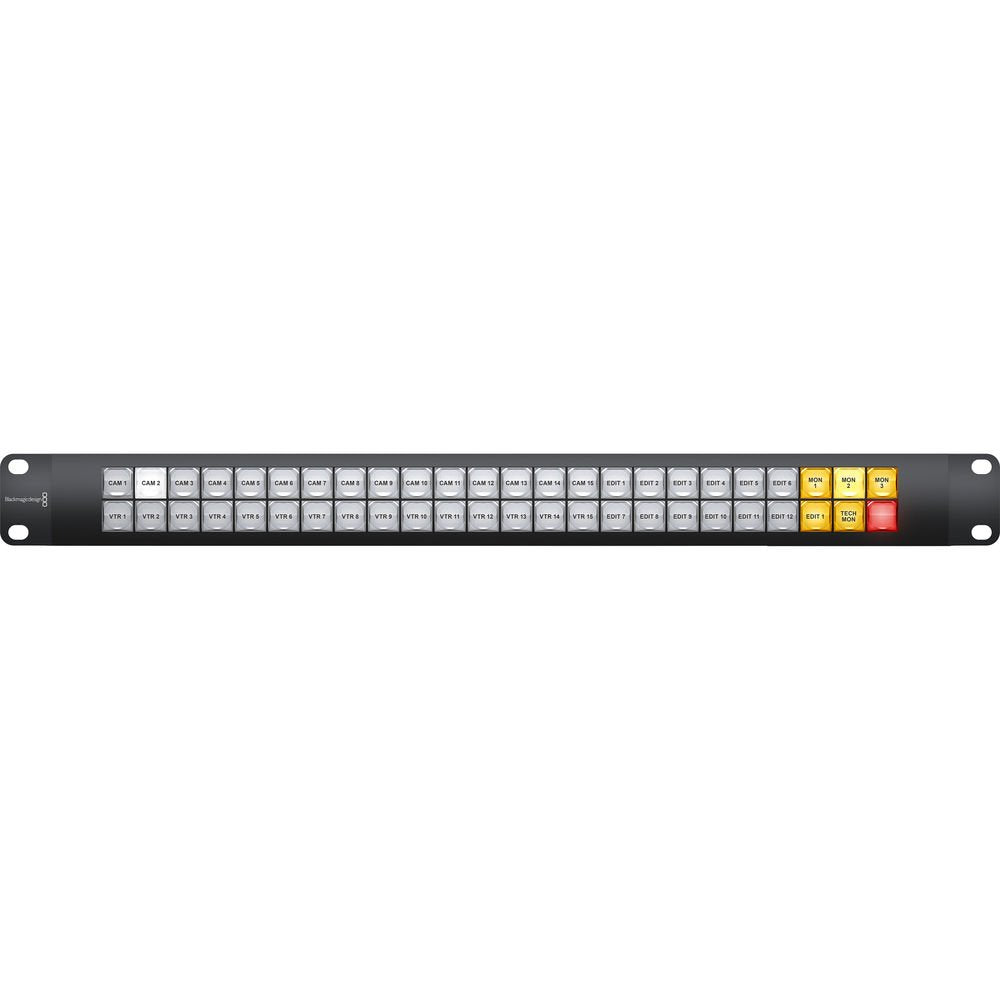

Blackmagic Design Videohub Smart Control Pro

The Blackmagic Design Videohub Smart Control Pro is a professional router control panel designed for fast source and destination switching over an IP network. It features 48 programmable buttons that can be assigned to specific router crosspoints, allowing operators to make routes with a single button press.

The front panel also provides up to 10 programmable macro buttons for triggering multiple switching commands at the same time. Button configurations can be created and saved using the included software for Mac and Windows, while power-fail protection helps preserve router communication and button settings.

Connectivity includes RJ45 Ethernet input and output, with PoE available through the Ethernet input, plus RS-422 connections and USB-C for configuration and software updates. The 1RU design makes it suitable for broadcast studios, live production systems, and portable racks. For more professional routing and production control equipment, explore the Systec Switchers & Controllers collection.

FAQs

What is the Videohub Smart Control Pro used for?

It provides fast physical control of compatible Videohub routers, allowing operators to route sources and destinations using programmable buttons.

How many programmable buttons does it have?

It has 48 programmable buttons for assigning router crosspoints and control functions.

Does it support macros?

Yes. Up to 10 buttons can be configured as macros for activating multiple simultaneous switching commands.

Can it be powered over Ethernet?

Yes. The Ethernet input supports Power over Ethernet, while the Ethernet output does not provide PoE.

How is the control panel configured?

The buttons can be configured using the included software on Mac and Windows through the USB connection. USB-C is also provided for configuration and software updates.
