Blackmagic Design Web Presenter HD
SKU: BDLKWEBPTRPRO
Key Features
- Live Stream SDI Video Source to Internet
- Input 12G/6G/3G-SDI Video up to UHD 4K
- SDI/HDMI Monitor Output up to 1080p60
- Supports H.264/RTMP Streaming Protocol
- Use USB Type-C as Webcam or 5G/4G Tether
- SDI Loop Output, 10/100/1000 Ethernet
- Redundant AC and DC Power Inputs
- Mac, Win, Linux & Chromebook Compatible
- Works with ATEM Streaming Bridge Option
- 2,057.00 AED
- 2,057.00 AED
- Unit price
- per
Dimensions: 29.21 x 17.78 x 6.6 cm
Weight: 0.75 kg
Description
xThe Blackmagic Design Web Presenter HD is a professional streaming solution that lets you take an SDI video source and stream it directly to the internet. It accepts 12G, 6G, 3G, and HD-SDI signals up to UHD 4K and converts them for HD streaming up to 1080p60.
It supports H.264 streaming through RTMP and SRT over Ethernet, while a connected 4G or 5G smartphone can provide mobile internet access. The USB-C connection can also work as a webcam output, making it suitable for video conferencing and streaming software on computers.

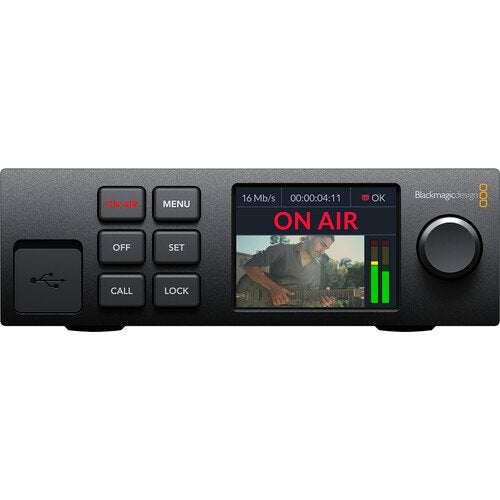

The Web Presenter HD includes SDI loop output and SDI/HDMI monitoring outputs with detailed video, audio, codec, cache, and streaming status information. Its built-in 2.2-inch color display provides quick access to essential monitoring and status information.
For more professional broadcast and streaming equipment, explore Systec International's Blackmagic Design collection.
FAQs
What video input does the Web Presenter HD support?
It accepts 12G, 6G, 3G, and HD-SDI video inputs, including UHD 4K sources.
What streaming protocols does it support?
It supports H.264 streaming through RTMP and SRT over an Ethernet connection.
Can it be used as a webcam?
Yes. Its USB-C connection can provide webcam functionality at up to 1080p60 for compatible computers and software.
Can I stream using a mobile phone?
Yes. You can connect a 4G or 5G smartphone through USB-C tethering for mobile internet streaming.
Does it provide monitoring outputs?

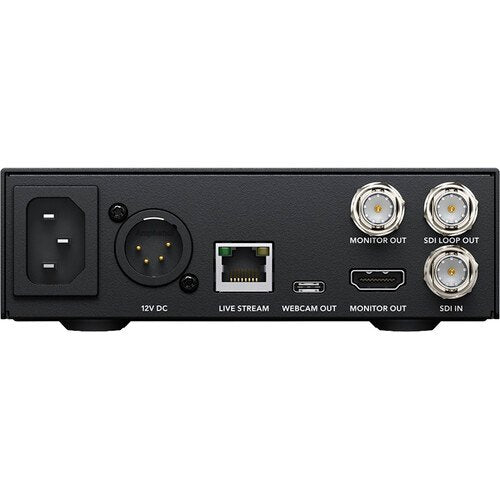

Yes. It provides SDI and HDMI monitor outputs, along with an SDI loop output for monitoring or connecting to another broadcast device.
Specs
xSpecifications
| Product Type | HD Streaming Processor |
|---|---|
| Video Input | 1 x SDI |
| SDI Standards | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI |
| Maximum Input Resolution | UHD 4K |
| SDI Loop Output | 1 |
| Monitor Outputs | 1 x SDI, 1 x HDMI |
| Maximum Monitor Output | 1080p60 |
| Streaming Resolution | Up to 1080p60 |
| Video Codec | H.264 |
| Streaming Protocols | RTMP and SRT |
| Webcam Output | USB-C, up to 1080p60 |
| Ethernet | 10/100/1000 BaseT |
| Control | Front panel, USB-C, Ethernet |
| Display | 2.2-inch color LCD |
| Power Supply | 100-240V AC |
| DC Power Input | 12V DC, 4-pin XLR |
| Power Consumption | 21W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0% to 90% non-condensing |
