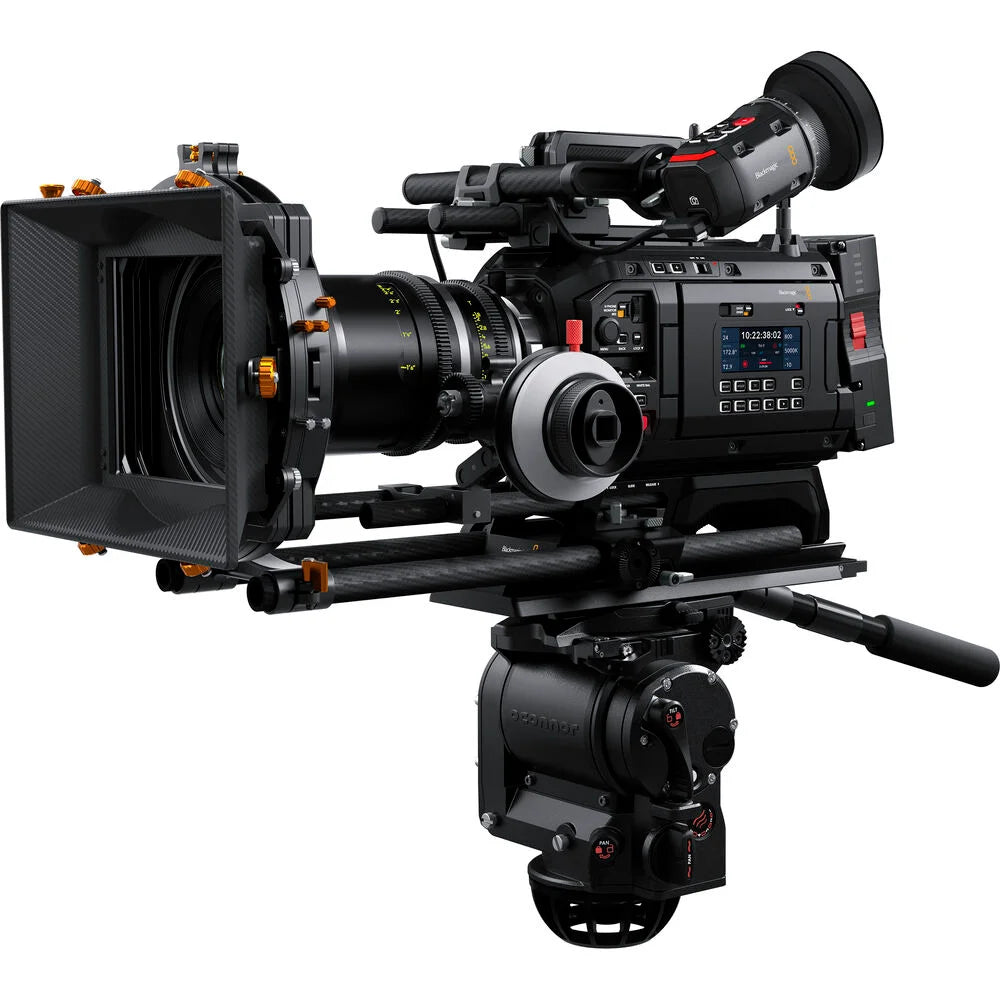

Blackmagic URSA Cine 12K LF Camera (PL Mount)
SKU: CINEURSAA12KLF
Key Features
- Large Format Full-Frame 12K Sensor
- 16 Stops of Dynamic Range
- Blackmagic Raw up to 12K 3:2 Open Gate
- Stream via RTMP/SRT via Wi-Fi/RJ45/USB-C
- Built-In Clear, 2/4/6-Stop IRND Filters
- Built-In Folding 5" 1500 cd/m² Monitor
- 12G-SDI Output, USB-C Expansion Ports
- Timecode/REF, LEMO/Fischer Control Ports
- 2 x Balanced 3-Pin XLR Audio Inputs
- Optional EVF Top Handle
- 62,726.00 AED
- 62,726.00 AED
- Unit price
- per
Description
xThe Blackmagic URSA Cine 12K Camera (PL Mount) is a professional large-format cinema camera built for high-end film and television production. Its 35.64 x 23.32mm RGBW sensor delivers up to 12K resolution, 16 stops of dynamic range, and Blackmagic RAW recording for detailed cinematic images with strong flexibility in post-production.
The camera features a PL lens mount, which is interchangeable with the included URSA Cine lockable EF mount. It supports 12K 3:2 Open Gate recording up to 80fps, 12K 17:9 up to 100fps, and 12K 2.4:1 up to 120fps, making it suitable for high-resolution cinema, visual effects, and slow-motion production.
For fast on-set workflows, the URSA Cine 12K includes 8TB of internal high-performance media storage, 10G Ethernet, Wi-Fi, and USB-C connectivity. Built-in clear, 2-stop, 4-stop, and 6-stop IR ND filters provide quick exposure control, while the folding 5-inch 1500 cd/m² HDR touchscreen supports monitoring and camera operation.
Professional production connectivity includes dual 12G-SDI outputs, 3-pin XLR audio inputs, timecode/reference connections, LEMO and Fischer power/control connections, and RTMP/SRT streaming. For more professional cinema cameras and accessories, explore Systec International's Digital Cinematography Cameras collection.
FAQs
What resolution does the URSA Cine 12K record?
It can record Blackmagic RAW at up to 12,288 x 8,040 resolution, including 12K 3:2 Open Gate.
What lens mount does this camera use?
This version comes with an ARRI PL mount and includes an interchangeable URSA Cine lockable EF mount.
How much dynamic range does the URSA Cine 12K offer?
The camera provides an advertised 16 stops of dynamic range.
Does the URSA Cine 12K have built-in storage?
Yes. This Systec package includes an 8TB Blackmagic Media Module for high-speed internal recording and media workflows.
Does it have built-in ND filters?
Yes. It includes clear, 2-stop, 4-stop, and 6-stop IR ND filter settings for controlling exposure in changing lighting conditions.
In the Box
xItems Included
- Blackmagic Design URSA Cine 12K LF Camera (PL Mount)
- URSA Cine EF Mount
- Screw Set for EF Mount
- Blackmagic Design Media Module (8TB)
- Blackmagic Design URSA Cine Top Handle
- URSA Cine Top Rod Mount (15mm)
- Blackmagic Design 19mm Baseplate for URSA Cine 12K
- Blackmagic Design Folding Sunshade for URSA Cine
- Blackmagic Design Battery Plate for URSA Cine (B-Mount)
- Wi-Fi Antenna Set
- URSA Cine PL Body Cap
- URSA Cine EF Body Cap
- Blackmagic Design Rubber Caps for URSA Cine Camera (Set of 6)
- 24 VDC 250W Power Supply
- DaVinci Resolve Studio Activation Key
- Blackmagic Sticker
- Pelican 1510 Case with Custom-Cut Foam
- Limited 1-Year Manufacturer Warranty
Specs
xSpecifications
| Camera Type | Large-Format Digital Cinema Camera |
|---|---|
| Lens Mount | ARRI PL Mount, interchangeable with URSA Cine lockable EF mount |
| Sensor | 35.64 x 23.32mm Large-Format RGBW CMOS |
| Pixel Pitch | 2.9 microns |
| Effective Resolution | 98 megapixels, 12,288 x 8,040 |
| Dynamic Range | 16 stops |
| Recording Format | Blackmagic RAW |
| Maximum Recording Resolution | 12K 3:2 Open Gate, 12,288 x 8,040 |
| Maximum High-Speed Frame Rate | Up to 224fps depending on resolution and aspect ratio |
| Internal Storage | 8TB Blackmagic Media Module |
| Built-In ND Filters | Clear, 2-stop, 4-stop and 6-stop IR ND |
| Monitor | 5-inch 1920 x 1080 HDR LCD touchscreen, 1500 cd/m² |
| SDI Output | 2 x 12G-SDI |
| Audio Inputs | 2 x balanced 3-pin XLR mic/line inputs with +48V phantom power |
| Ethernet | 1 x 10G Ethernet |
| USB-C | Camera interface and firmware connectivity |
| Streaming | RTMP and SRT |
| Wireless | Wi-Fi and Bluetooth |
| Power Input | 8-pin LEMO, 12–24V DC |
| Power Output | 7-pin LEMO and 3-pin Fischer, 12–24V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
