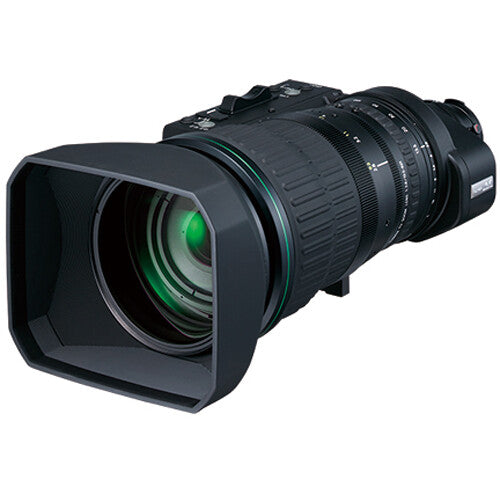

Fujinon UA46X13.5BERD 2/3" Wide 46x ENG 4K Lens with Motorized 2X Extender
SKU: UA46X13.5BERD-G1
Key Features
- 13.5 to 621mm Lens for 2/3" Cameras
- 46x Zoom Ratio with 2x Extender
- Included Optical Shift Stabilization
- Motorized Extender via Servo Control
- 9-Blade Iris for Natural Bokeh
- Rich Tonal Gradation
- Macro Function, Anti-Vibration Tech
- 388,976.00 AED
- 388,976.00 AED
- Unit price
- per
Dimensions: 60.5 × 59.4 × 33.0 cm
Weight: 16.24 kg
Description
xFujinon UA46X13.5 Overview
The UA46x13.5BERD-G1 2/3" ENG 4K Lens from Fujinon is a 13.5 to 621mm zoom lens offering 4K capture in a portable broadcast form. Its high 46x zoom ratio doubles to 27 to 1242mm when you engage its motorized 2x extender. The lens features a fast f/2.8 maximum aperture, cutting-edge optical design with rich tonal gradation, and a 9-blade iris that produces natural-looking bokeh. The 4K Plus Premier series also offers selectable OS-TECH optical shift stabilization to compensate for vibration and smooth longer shots.
Features
Portable 4K Broadcast Lens
The UA46x13.5BERD offers a 46x zoom ratio and long 621mm reach in a portable 4K broadcast lens.
Optimal Imaging
Cutting-edge optical design produces optimal imagery with rich tonal gradations.
Built-In Stabilization
OS-TECH stabilization with anti-vibration mechanism supports stable 4K video capture.
Servo Drive
High-performance servo drive unit provides smooth and ergonomic control.
Natural Bokeh
A 9-blade iris creates natural-looking bokeh effects.
Specs
x| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 13.5 to 621mm With Extender: 27 to 1242mm |
| Built-In Extender | 2x (Motorized) |
| Zoom Ratio | 46x |
| Angle of View |
Wide: 0.9 x 0.5° (H x V) Tele: 39.1 x 22.6° (H x V) With 2x Extender Wide: 0.4 x 0.2° (H x V) Tele: 20.1 x 11.4° (H x V) |
| Maximum Aperture | f/2.8 to 5.5 With Extender: f/5.6 to 11 |
| Focus Type | Servo |
| Iris Type | Servo |
| Macro | Yes |
| Minimum Object Distance | 9.1' / 2.8 m Macro: 2.4" / 6 cm |
| Optical Image Stabilization | Yes |
| Certifications | CAN-ICES-3(B)/NMB-3(B), FCC-Class B, IEC-003 |
| Dimensions | 60.5 × 59.4 × 33.0 cm |
| Weight | 16.24 kg |
