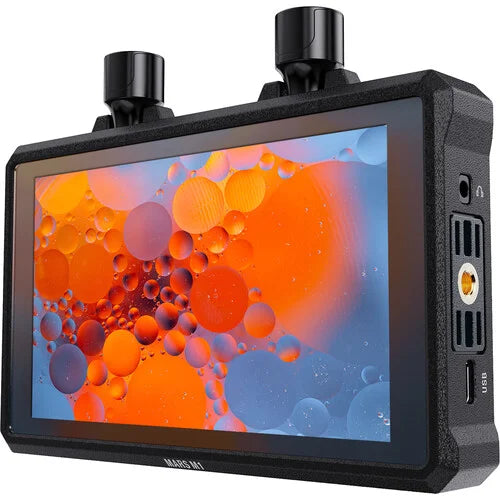

Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor
SKU: HL-MARS M1 ENHANCED
Key Features
- Wirelessly Monitor Video from up to 450'
- Transmitter & Receiver Mode Switching

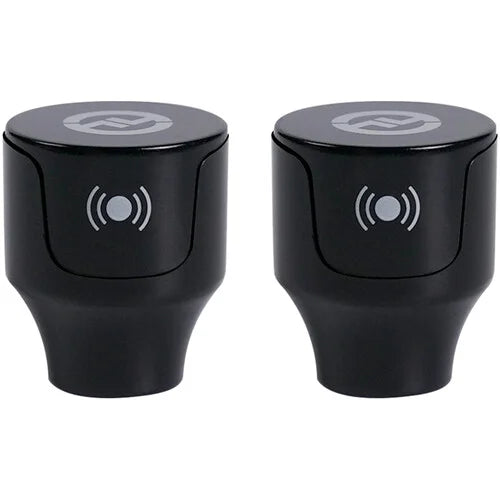

- New Capsule Antennas & Record/Playback
- 5.5" Touchscreen 1920 x 1080 Display
- Up to 4K30 Video SDI Input, HDMI In/Out
- Presets & USB-C 3D LUT Import
- High 1000 cd/m² Brightness
- Low 0.08s Latency, Smart Channel Scan

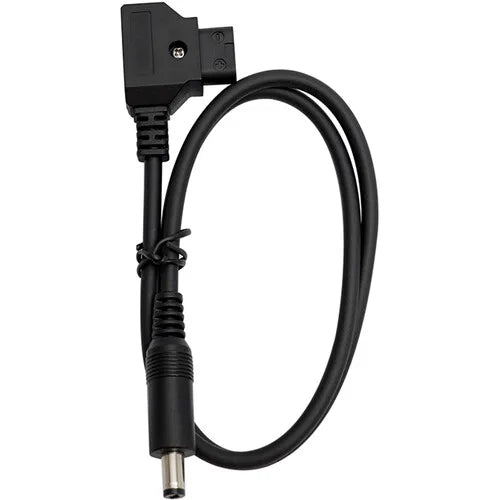

- DC Power Input & Output
- Built-In L-Series Battery Plate
- 1,578.00 AED
- 1,578.00 AED
- Unit price
- per
Dimensions: 16 x 10 x 5 cm
Weight: 1 kg
Description
xThe Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor is an all-in-one solution for filmmakers, camera operators, and video production teams. It combines a wireless transmitter, receiver, and monitor in one device, allowing users to switch between operating modes as needed.
Its 5.5-inch Full HD touchscreen delivers 1920 × 1080 resolution and 1,000 nits brightness for clear image monitoring. It supports wireless transmission up to 450 feet with approximately 0.08-second latency, along with HDMI and 3G-SDI connectivity for flexible video workflows.
The Mars M1 Enhanced also features HollyOS monitoring tools, 3D LUT support, smart channel scanning, and video recording and playback for up to two minutes. It supports NP-F batteries and DC power, making it suitable for studio and on-location production. Explore the Hollyland collection at Systec International for more professional video production equipment.
FAQs
Can the Hollyland Mars M1 Enhanced work as both a transmitter and receiver?
Yes, it combines transmitter and receiver functions with a built-in monitoring display.
What is the screen size and resolution?
It features a 5.5-inch touchscreen with 1920 × 1080 Full HD resolution.
What is the wireless transmission range?
It supports transmission up to 450 feet (150 metres) in line-of-sight conditions.
Does it support HDMI and SDI connections?
Yes, it includes HDMI input, HDMI loop output, and 3G-SDI input.
Can I record and review videos on the monitor?
Yes, it supports video recording and playback for up to two minutes. Recordings cannot be exported and are deleted when the device is powered off or a new recording begins.
Additional Information
x| Weight | 1 kg |
|---|---|
| Dimensions | 16 × 10 × 5 cm |
| MONITOR STYLE | One Monitor |
Specs
xSpecifications
| Product Name | Hollyland Mars M1 Enhanced |
|---|---|
| Device Type | Wireless Transceiver Monitor |
| Screen Size | 5.5 inches |
| Screen Resolution | 1920 × 1080 pixels |
| Pixel Density | 403 PPI |
| Aspect Ratio | 16:9 |
| Screen Brightness | 1,000 nits |
| Contrast Ratio | 1000:1 |
| Color Gamut | Rec. 709 |
| Operating Modes | Transmitter, Receiver, and Monitor |
| Wireless Range | Up to 450 feet (150 metres), line of sight |
| Transmission Latency | Approximately 0.08 seconds |
| Wireless Frequency | 5.15–5.85 GHz, depending on region |
| Video Codec | H.264 |
| Bit Rate | 12 Mbps |

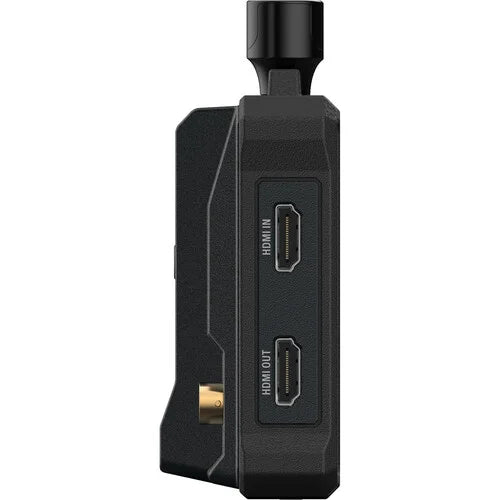

| Video Input | HDMI 1.4b, 3G-SDI |
| Video Output | HDMI 1.4b loop output in transmitter mode; HDMI output in receiver mode |

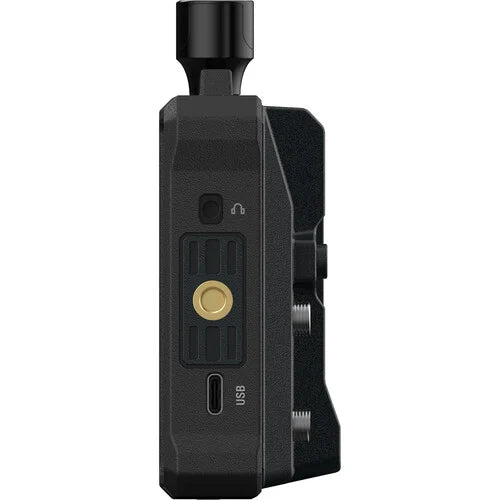

| Headphone Output | 3.5mm |
| USB Interface | USB-C 2.0 OTG |
| Monitoring System | HollyOS |

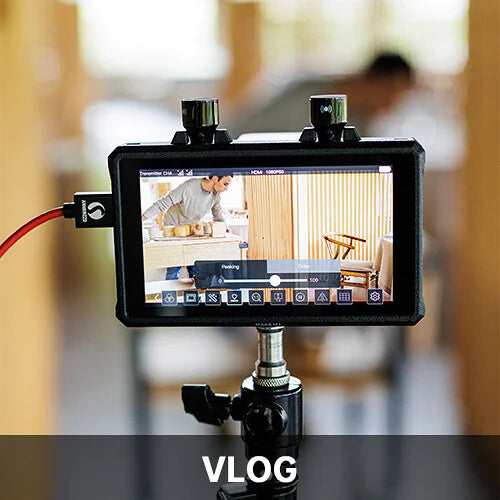

| Monitoring Tools | Waveform, vectorscope, zebra pattern, peaking, aspect marks, and anamorphic de-squeeze |
| Recording | Up to 2 minutes, internal review only |

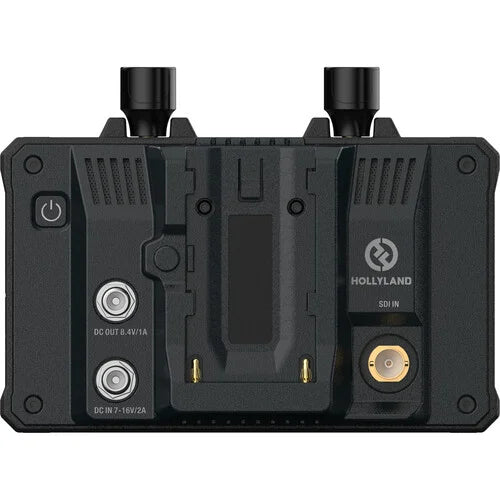

| Power Input | 7–16V DC or NP-F series battery |
| DC Output Voltage | 8.4V ±5% |
| Power Consumption | Transmitter: less than 16W; Receiver: less than 13.6W |
| Operating Temperature | −10°C to 60°C |
