Key Features
- Wireless Transmitter and Receiver Set
- Transmit UHD 4K30 Video up to 1300'
- HDMI/SDI Inputs and Outputs
- 2.4 and 5 GHz Frequency Bands
- Supports UVC and RTMP for Streaming
- 650' Transmission in Broadcast Mode
- Smart Channel Scanning, Bright LCD
- Low 50 ms Latency, 12 Mb/s Bit Rate
- DC, L-Series, and USB-C Power Options
- 1,460.00 AED
2,572.00 AED- 1,460.00 AED
- Unit price
- per
Dimensions: 19 x 15 x 10 cm
Weight: 1.5 kg

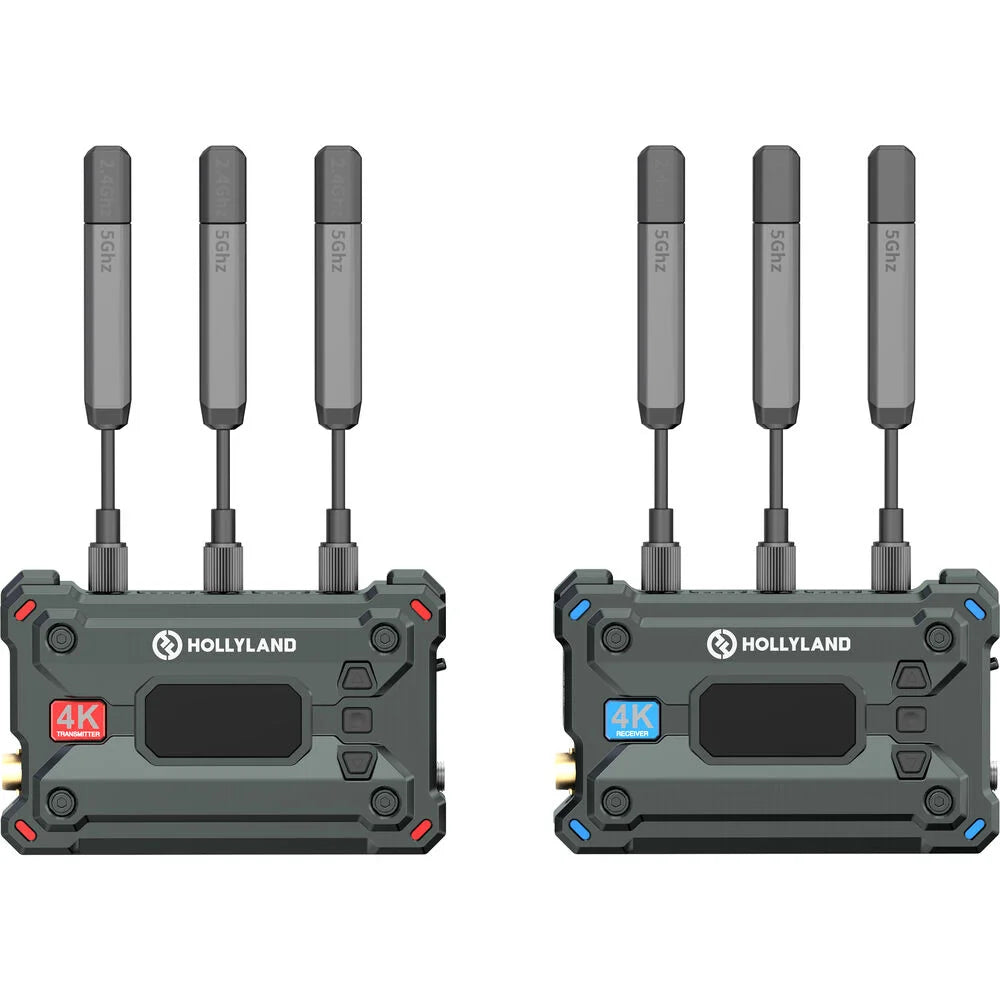

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System
Description
xThe Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System is designed to send high-quality video from cameras to monitors and displays without cables. It includes one transmitter and one receiver, making it suitable for filmmaking, broadcasting, live events, and multi-camera production.
The system supports wireless video transmission up to 4K30 through HDMI and 1080p60 through SDI. Its 2.4GHz and 5GHz dual-band technology helps maintain a stable connection, with a range of up to 400 metres in line-of-sight conditions and latency as low as 50ms.
With HDMI and SDI connectivity, the Pyro S integrates easily with professional cameras and monitoring equipment. One transmitter can also connect to up to four receivers in Broadcast mode, allowing multiple crew members to monitor the same video feed. Explore the Hollyland collection at Systec International for more professional wireless video equipment.
FAQs
What is the Hollyland Pyro S used for?
It wirelessly transmits video from cameras to monitors, displays, and compatible computers during professional production.
Does the Pyro S support both HDMI and SDI?
Yes, the transmitter supports HDMI and SDI inputs, while the receiver provides HDMI and SDI outputs.
What is the maximum wireless transmission range?
It supports up to 400 metres in line-of-sight conditions. In Broadcast mode, the range is up to 200 metres.
How many receivers can connect to one transmitter?
One transmitter can connect to up to four receivers in Broadcast mode.
Does the Pyro S support 4K video transmission?
Yes, it supports up to 4K30 wireless transmission through HDMI and up to 1080p60 through SDI.
Specs
xSpecifications
| Product Name | Hollyland Pyro S |
|---|---|
| Product Type | 4K HDMI/SDI Wireless Video Transmission System |
| Included Units | 1 Transmitter and 1 Receiver |
| Wireless Frequency | 2.4GHz and 5GHz |
| Transmission Range | Up to 400m (Line of Sight) |
| Broadcast Mode Range | Up to 200m (Line of Sight) |
| Latency | As low as 50ms |
| Maximum HDMI Transmission | UHD 4K at 30fps |
| Maximum SDI Transmission | 1080p at 60fps |
| Receiver Support | Up to 4 receivers in Broadcast mode |
| Transmitter HDMI Input | HDMI 1.4b |
| Transmitter SDI Input | 3G-SDI |
| Receiver HDMI Output | HDMI 1.4b |
| Receiver SDI Output | 3G-SDI |
| USB-C Function | USB 2.0 OTG and UVC support |
| Wireless Technology | Auto Dual-Band Hopping (ADH) |
| Channel Bandwidth | 20MHz (Broadcast: 40MHz) |
| Transmitter Power Consumption | Less than 11W |
| Receiver Power Consumption | Less than 8W |
| Power Supply | NP-F Battery or DC 6–16V |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 60°C |
| Housing Material | Magnesium Alloy |
