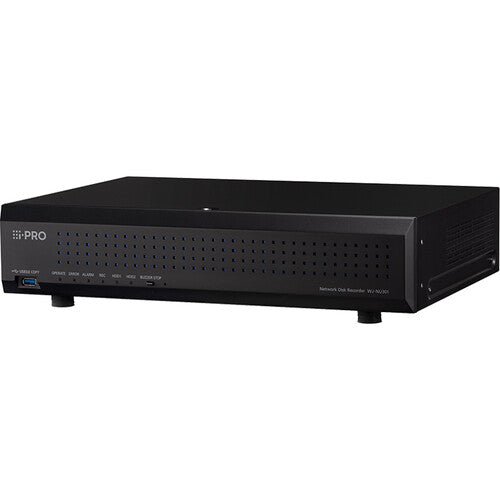

i-PRO WJ-NU301K 16-Channel NVR Built-In PoE+ Switch
SKU: WJ-NU301KG
Key Features
- Supports up to UHD 4K resolution
- Supports up to 40TB HDD capacity
- H.265 and H.264 video codecs
- 2 x HDMI video outputs
- NDAA compliant with Intel CPU
- FIPS 140-2 Level 3 certified
- 7,155.00 AED
- 7,155.00 AED
- Unit price
- per
Dimensions: 420 x 88 x 300 mm
Weight: 4.7 kg
Description
xThe i-PRO WJ-NU301K 16-Channel NVR with Built-In PoE+ Switch is a professional network video recorder designed for surveillance systems with up to 16 network cameras. Its integrated 16-port PoE+ switch provides both network connectivity and power to compatible cameras, helping simplify installation.
The WJ-NU301K supports H.265, H.264, and JPEG video formats and camera resolutions up to 3840 × 2160. It provides a maximum recording rate of 128 Mbps and supports remote monitoring for centralized surveillance management.
The built-in PoE+ switch provides up to 233W total PoE budget, with up to 30W available per port. The NVR also features dual HDMI outputs, including 4K UHD output at up to 30 Hz for compatible displays.
For storage, the WJ-NU301K supports two 3.5-inch SATA HDDs, with up to 20TB per drive and 40TB total capacity. It also supports RAID 1 for improved data protection. Security features include an Intel CPU, NDAA compliance, a FIPS 140-2 Level 3 certified secure element, SSL/TLS, and user authentication.
For more professional surveillance equipment, explore our i-PRO collection and Network Video Recorders (NVRs) range for additional security solutions.
Frequently Asked Questions
How many cameras does the i-PRO WJ-NU301K support?
The WJ-NU301K supports up to 16 network cameras, including compatible i-PRO cameras and ONVIF-compliant cameras and encoders.
Does the WJ-NU301K have a built-in PoE switch?
Yes. It features 16 built-in PoE+ ports with a total PoE budget of up to 233W and up to 30W per port.
What is the maximum storage capacity?
The NVR supports two 3.5-inch SATA HDDs, with up to 20TB per drive and 40TB total capacity.
Does the WJ-NU301K support 4K cameras?
Yes. It supports camera resolutions up to 3840 × 2160 and provides a 4K UHD HDMI main monitor output at up to 30 Hz.
Is the i-PRO WJ-NU301K secure?
Yes. The recorder is NDAA compliant and includes a FIPS 140-2 Level 3 certified secure element, along with user authentication and SSL/TLS security.
In the Box
x- I-PRO WJ-NU301K 16-Channel NVR with Built-In PoE+ Switch
Specs
x| Product Name | i-PRO WJ-NU301K 16-Channel NVR with Built-In PoE+ Switch |
|---|---|
| Maximum Camera Channels | 16 |
| Video Compression | H.265 (HEVC), H.264, JPEG |
| Maximum Camera Resolution | 3840 x 2160 |
| Maximum Recording Rate | 128 Mbps |
| Maximum Bandwidth | 256 Mbps |
| PoE Ports | 16 x 10BASE-T / 100BASE-TX RJ45 with PoE+ |
| PoE Budget | 233W total, maximum 30W per port |
| PC Network Port | 1 x 10BASE-T / 100BASE-TX / 1000BASE-T RJ45 |
| HDD Slots | 2 x 3.5-inch SATA HDD |
| Maximum HDD Capacity | 20TB per HDD, 40TB total |
| RAID | RAID 1 |
| Main Monitor Output | HDMI 4K UHD 3840 x 2160 at 30/25 Hz |
| Sub Monitor Output | HDMI 1920 x 1080 at 60/50 Hz |
| Audio Format | AAC-LC, G.711 for ONVIF |
| Recording Modes | Event, Schedule, Emergency, Pre-event |
| Pre-Alarm Recording | Up to 15 seconds |
| Maximum Frame Rate | Up to 60 fps per camera, depending on camera |
| Alarm Inputs | 4 terminal inputs |
| Alarm Output | 1 |
| USB Ports | USB 3.0 / USB 2.0 |
| Simultaneous Users | Up to 16 |
| Security | User authentication, host authentication, alteration detection, SSL/TLS |
| Security Certification | FIPS 140-2 Level 3 |
| CPU | Intel CPU |
| Compliance | NDAA compliant |
| Power Supply | 100-240V AC, 50/60 Hz |
| Power Consumption | 340W |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5% to 90%, non-condensing |
| Dimensions | 420 x 88 x 300 mm |
| Weight | Approximately 4.7 kg |
